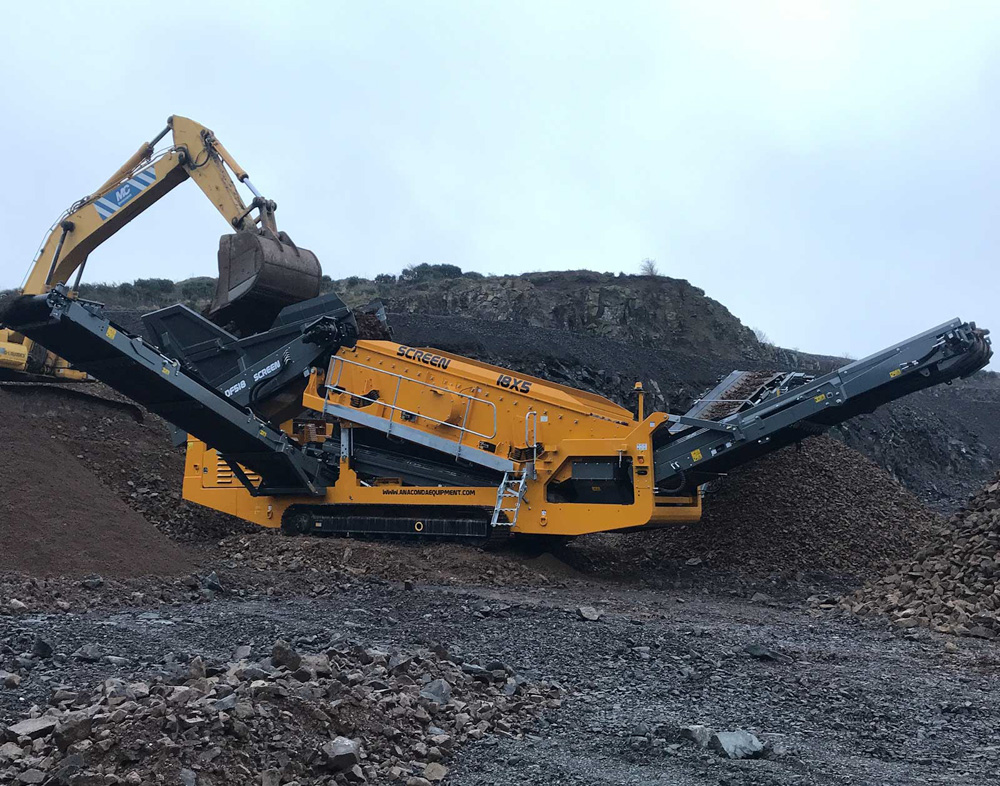

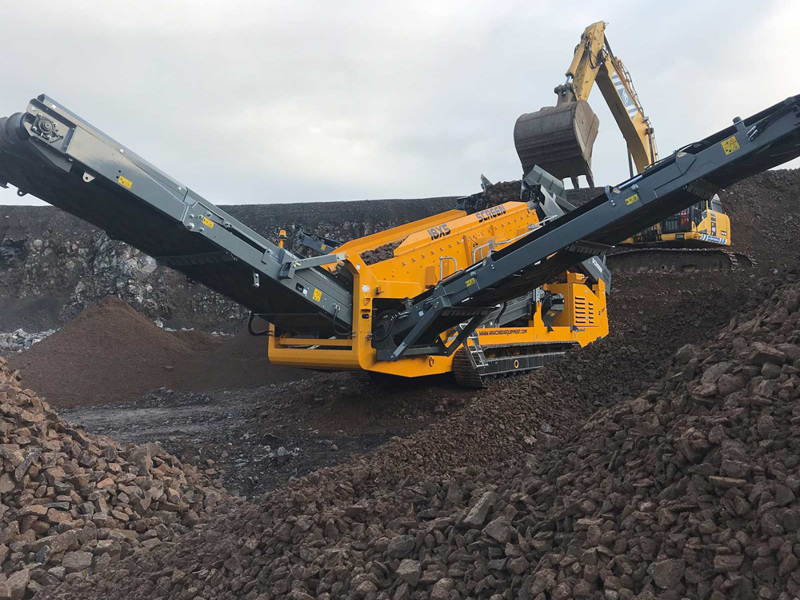

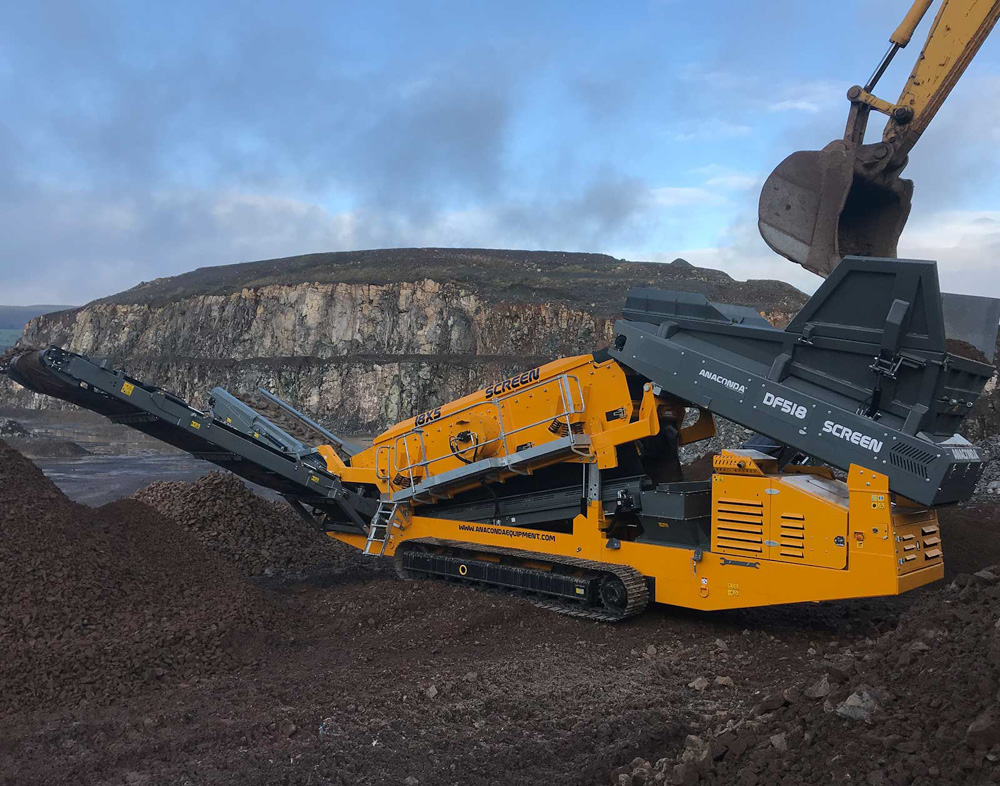

Anaconda DF518
The DF518 is powerful and economical to run and can screen / stockpile 3 products at up to 375TPH. Complete with a 18 x 5 (2 deck) screen box, hydraulic folding hopper, main conveyor and 2 hydraulically folding stockpiling side conveyors. The screen is extremely easy to commission and can be running within 20 minutes of arrival on site.
The DF518 is the large-sized scalping screen available here at Anaconda and has already began to establish itself within the market after its introduction in 2020! The screener has the ability to cope with tonnages between of up to 375TPH dependent on application and feeding method. Fitted with either a belt feeder of the option of a steel apron feeder, the DF518 is user friendly, focused on achieving the optimum results for the customer and easy to transport.
This scalping screen is capable of adapting a number of different applications which expresses the machine versatility. With productivity at the core of the DF518 this screener has the ability to become the heartbeat of any large screening operation.
Features and benefits
- STAGE 5 – CAT 3.6 OR JCB444 DIESELMAX
- HIGH ENERGY 5.49M X 1.52M (18′ X 5′) SCREEN BOX
- 5 PIECE SIDE TENSIONED TOP AND SECOND DECK
- 3 PIECE END TENSIONED BOTTOM DECK
- MAX HOPPER CAPACITY OF 8M³
- SCREEN BOX ANGLE ADJUSTMENT 15-17º
- SCREEN BOX WALKWAYS FOR MAINTENANCE AND MESH CHANGE
- VARIABLE SPEED 4 PLY BELT FEEDER
- VARIABLE SPEED ON ALL STOCKPILE BELTS
12ft double deck vibrating grid
20,000 Kg
STAGE 5 – T.DEUTZ 2.9 L4 / CAT / JCB444 DIESELMAX
