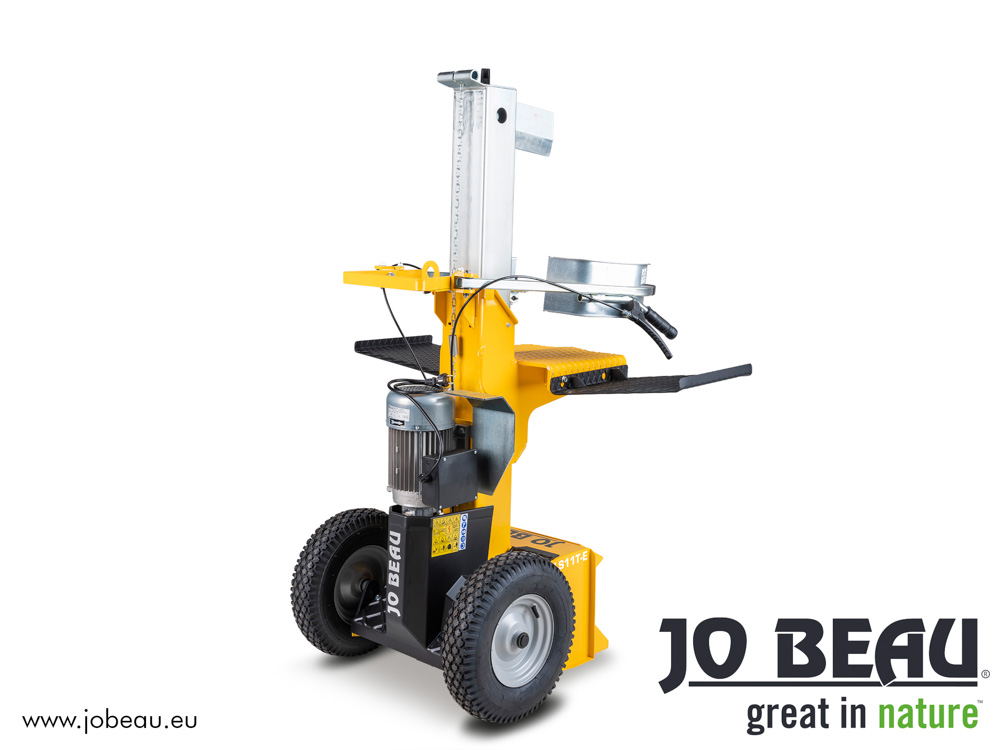

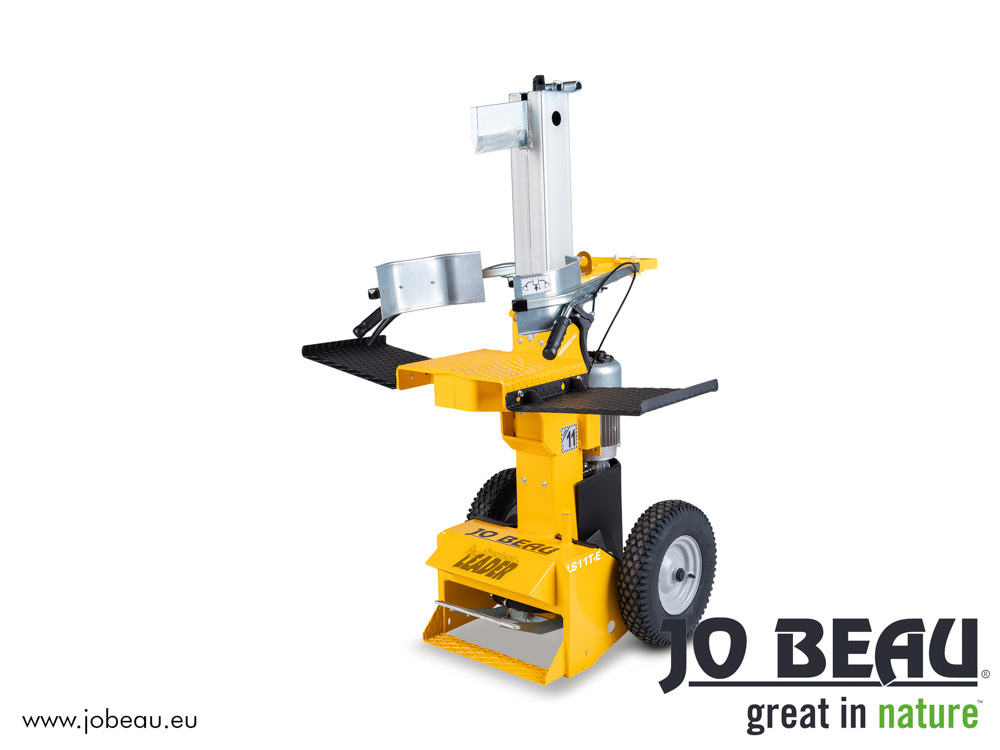

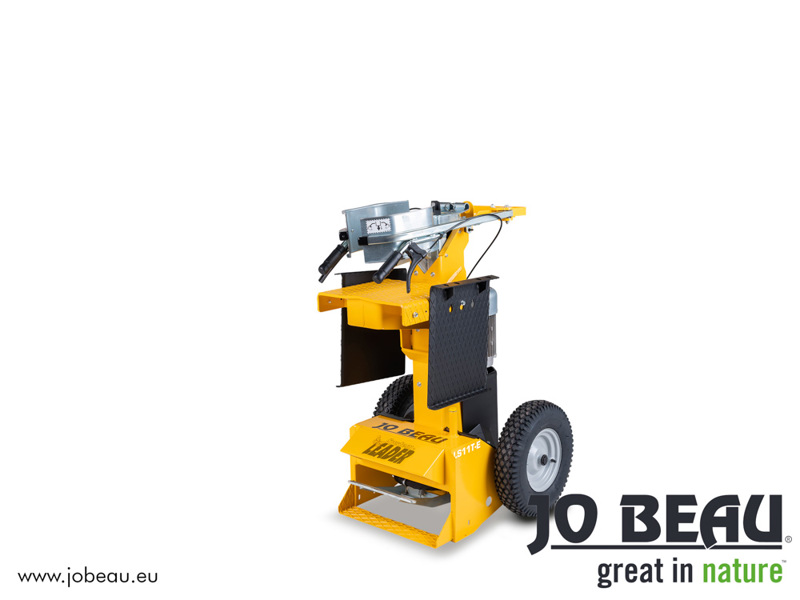

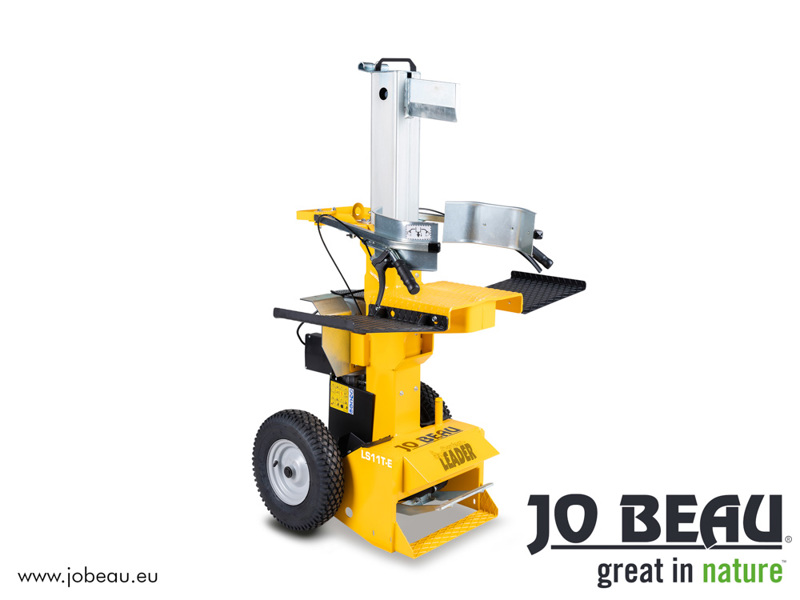

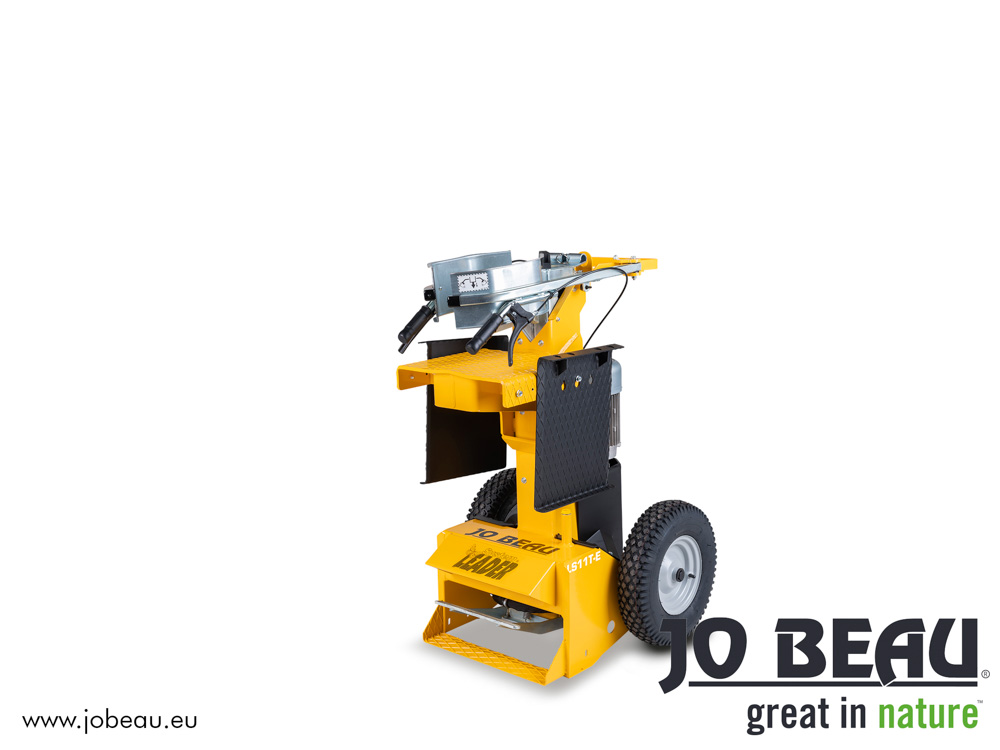

Jo Beau LS11T-E Log Splitter

The electric Jo Beau LS11T-E is a compact, robust and safe wood splitter designed for private gardeners, professionals and rental companies alike. This 11-tonne powerful machine splits wood with a maximum diameter of 60cm and a maximum height of 54cm! A 9-litre capacity oil tank is neatly concealed at the bottom of the chassis. A left and right positioning table extensions provide a larger working surface and the fall protection levers ensure proper clamping of the wood.
The log splitter is easy to move thanks to its two large pneumatic tyres.

✓ Environmentally friendly
✓ For indoor and outdoor use
✓ Ergonomic working height
✓ Extremely easy to manoeuvre thanks to large wheels
✓ Easy to maintain
✓ Smooth handling of logs
✓ Unique System-Leader™ technology
✓ Wide working surface
✓ Robust yet light

Description

With the Cutting-Edge System Control technology, a foot pedal allows you to activate the blade's approach stroke while centring the wood with both hands free. Once the wood is centred and locked in the desired position, the two control levers are used to split the wood.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Technical Specifications

  • Tonnage : 11 tonnes
  • Diameter max. : 60 cm (23.62 In)
  • Splitting height (max / min) : 540 mm (21.26 In) /
  • Speed - 1 / 2 / back (cm/sec) : 7,9cm / 1,4cm / 8,6cm (3 x 0.5 x 3.5)

  • Brand & type : 230V
  • Power : 2,2 kW (3 Hp)
  • Drive : Electric engine
  • Consumption : 230 V/1~ 50 Hz - 13.5 A
  • Noise level Lw (A) : 80 dB(A)

  • Weight : 158 kg (348 Lbs)
  • Chassis : Steel with wet paint coating
  • Dimensions (LxW) : 960 x 685 mm (37.80 x 27 In)
  • Dimensions (H) : 1110 mm (43.70 In)
  • Transmission : Hydraulic
  • Cylinder : 240 BAR
  • Hydraulic system : 9 litre capacity
  • Pump : Double
  • Knife design : Insulated knife - 6°
  • Table height : 830 mm (32.70 In)
  • Lifting aid : No
  • Adjustable splitting height : Yes
  • Transport : Two large pneumatic tyres
