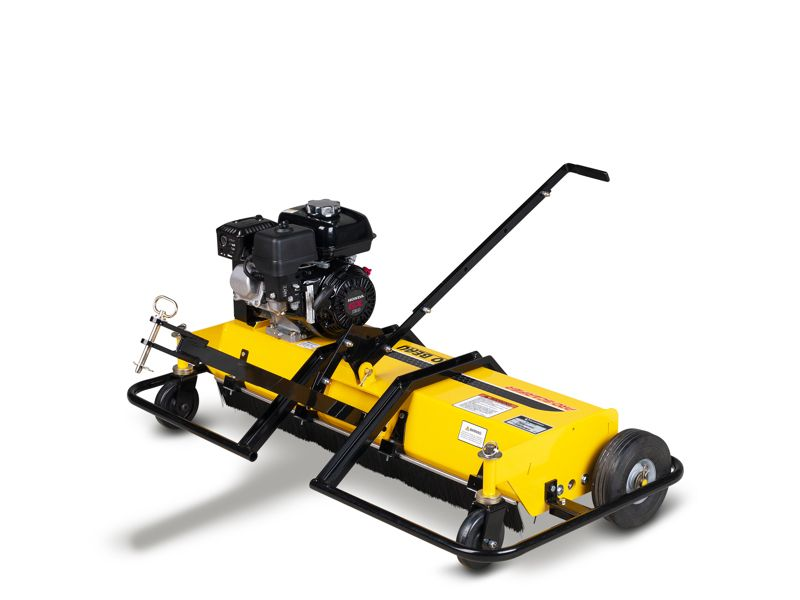

D110 Tow behind power rake

One hundred counter-rotating spring tines over a 965 mm (38″) workingwidth make this towable comber extremely efficient. A lift handle engages the spring tine reel, which is chain driven by a 5,5 Hp Honda engine

Download Brochure Enquire Now

Description

The Jo Beau® D110 makes short work of large yards, commercial or institutional lawns, golf courses, and playing fields.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

✓ Works autonomously with petrol engine
✓ Pulled by pullbar
✓ Extremely manoeuvrable thanks to swivel wheels
✓ Large working width
✓ One hundred spring tines

Technical Specification

  • Working width : 965 mm (38 In)
  • Working depth : Max. 6,5 mm (0,25 In)

  • Brand & type : Honda GX160 - 1 cyl. 4-stroke
  • Power : 3,6 kW (4,8 Hp)
  • Drive : Petrol engine
  • Consumption : 1,4 L/h - 3600 RPM
  • Noise level Lw (A) : dB(A)

  • Dimensions (LxWxH) : 1257 x 1016 x 1041 mm (49.5 x 40 x 41 In)
  • Weight : 62 kg (136 Lbs)
  • Scarifier Technology : Spring Tines verticutter technologies™
  • Chassis : Powder-coated steel
  • Knives : Steel springs
  • Fixe knives (number / thickness) : 50 / 3 mm (0.12 In)
  • Moveable knives (number / thickness)
  • Knife transmission : Chain Drive 6:1 - Spring Loaded Belt Idler
  • Collecting box
  • Foldable handlebar
