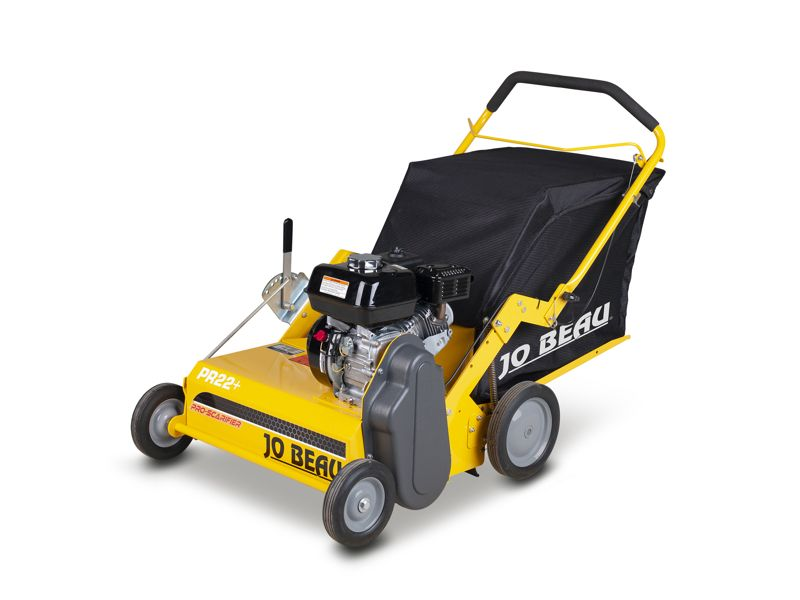

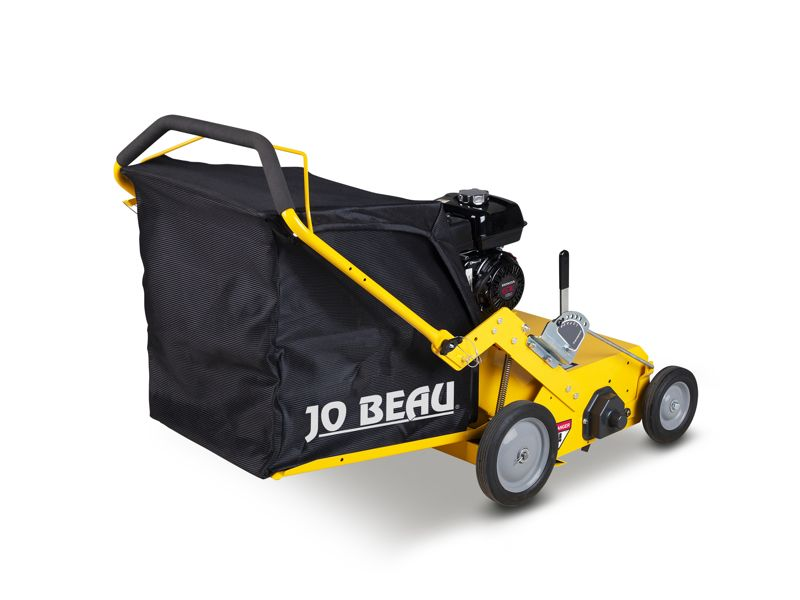

Jo Beau PR22 Fix Scarifier

The Jo Beau® PR22+ operates as a professional scarifier with rear catcher bag to collect moss. The modular design provides the option to work with or without bagger very quickly and easily. The machine offers versatility for every application.

✓ Large collection bag
✓ Choice of fixed or loose blades
✓ Collapsible handlebar
✓ Very compact for transport
✓ Large working width
✓ Extremely manoeuvrable

Download Brochure Enquire Now

Description

The PR22+ with a 160 litres (42gal) bagger makes dethatching and clean-up simple and efficient. The Soft Bag (5-bushel) is quickly removed and emptied. The power rake is equipped with a Honda GX160 professional engine.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Technical Specification

  • Working width : 560 mm (22 In)
  • Working depth : Max. 25 mm (1 In)

  • Brand & type : Honda GX160 - 1 cyl. 4-stroke
  • Power : 3,6 kW (4,8 Hp)
  • Drive : Petrol engine
  • Consumption : 1,4 L/h - 3600 RPM
  • Noise level Lw (A) : 93 dB(A)

  • Dimensions (LxWxH) : 1270 x 787 x 1016 mm (50 x 31 x 40 In)
  • Weight : 73 kg (162 Lbs)
  • Scarifier Technology : Flail Blade scarify technology™
  • Chassis : Powder-coated steel
  • Knives : Flail blades
  • Fixed knives
  • Moveable knives (number / thickness) : 32 / 3 mm (0.12 In)
  • Knife transmission : Industrial v-belt
  • Collecting box : Standard - 160L (42 gal)
  • Foldable handlebar : Standard
