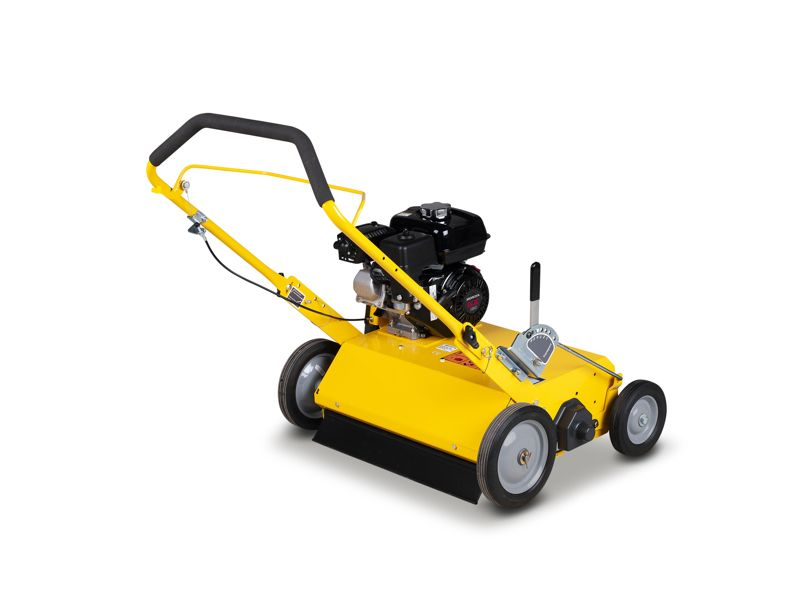

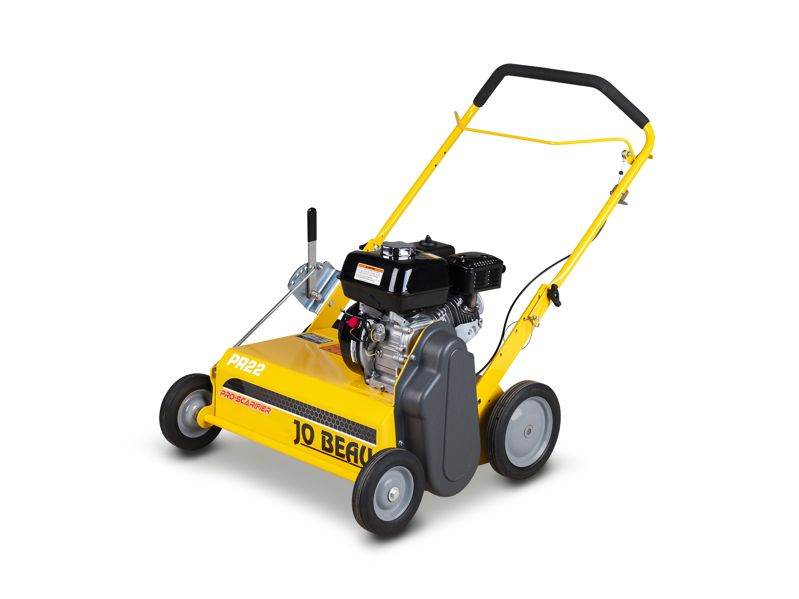

PR22 Power rake / Scarifier

The Jo Beau® PR22 operates as a professional scarifier and is also available with collecting bag as the PR22+ to collect the moss. The modular design provides the option to work with or without bagger very quickly and easily. The machine offers versatility for every application.

✓ Choice of fixed or loose blades
✓ Collapsible handlebar
✓ Very compact for transport
✓ Large working width
✓ Extremely manoeuvrable

Download Brochure Enquire Now

Description

The PR22+ with a bagger makes dethatching and clean-up simple and efficient. The Soft Bag (5-bushel) is quickly removed and emptied. The power rake is equipped with a Honda GX160 professional engine.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Technical Specification

  • Working width : 560 mm (22 In)
  • Working depth : Max. 25 mm (1 In)

  • Brand & type : Honda GX160 - 1 cyl. 4-stroke
  • Power : 3,6 kW (4,8 Hp)
  • Drive : Petrol engine
  • Consumption : 1,4 L/h - 3600 RPM
  • Noise level Lw (A) : 93 dB(A)

  • Dimensions (LxWxH) : 1270 x 787 x 1016 mm (50 x 31 x 40 In)
  • Weight : 73 kg (162 Lbs)
  • Scarifier Technology : Flail Blade scarify technology™
  • Chassis  : Powder-coated steel
  • Knives : Fixed or flail blades
  • Fixed knives (number / thickness) : 30 / 3 mm (0.12 In)
  • Moveable knives (number / thickness) : 32 / 3 mm (0.12 In)
  • Knife transmission : Industrial v-belt
  • Foldable handlebar : Standard
