NORWOOD LUMBERMAX HD38

MEET THE MACHINE

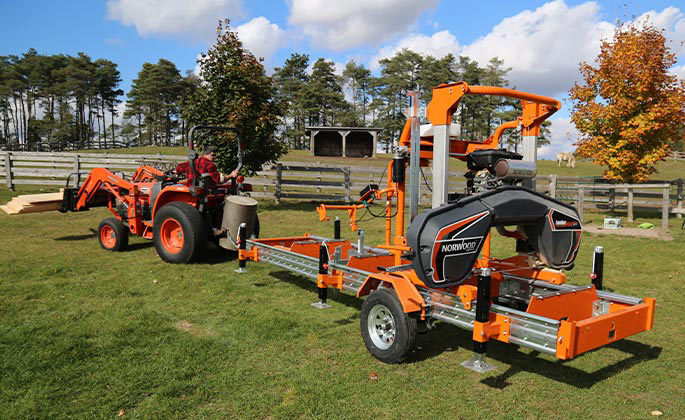

Engineered to handle massive logs up to 38" wide and 13' long with precision and efficiency. Its heavy-duty construction is complemented by powerful 23HP and optional 27HP engines. Choose from 26 customizable attachment upgrades, including advanced hydraulics, power feed and computer setworks.

The HD38’s huge throat with integrated patented auto-locking adjustable guide system turns out prize slabs up to 35” (89cm) wide. The 14” (36cm) clearance over the blade produces impressively deep cuts, oversized beams, and unparalleled output. Lastly, the HD38 comes with the Duradeck® Log Deck which is engineered from the ground up for heavy-duty assignments. Norwood’s patented Duradeck’s twin-laminated roll-formed high-strength galvanized steel rails with solid steel plate cross members are designed and built to handle extreme loads.

NORWOOD IN ACTION

  • Auto-Locking Saw head
  • Power Saw head (Up/Down)
  • 2", 9/8", 6/4", 1", 3/4" Set Display
  • Omega® Deep-Throat Saw head
  • EZ Blade Tension System
  • Adjustable Blade Guide
  • 4-Axis Blade Guides with Dual Rollers
  • Automatic Blade Lube System
  • Duradeck® Log Deck
  • Stainless Steel Bunk Covers
  • Movable Log Clamping Stations (x2)
  • Laterally-Adjustable Log Rests (x2)

The HD38’s huge throat with integrated patented auto-locking adjustable guide system turns out prize slabs up to 35” (89cm) wide. The 14” (36cm) clearance over the blade produces impressively deep cuts, oversized beams, and unparalleled output. Lastly, the HD38 comes with the Dura deck® Log Deck which is engineered from the ground up for heavy-duty assignments. Norwood’s patented Dura deck’s twin-laminated roll-formed high-strength galvanized steel rails with solid steel plate cross members are designed and built to handle extreme loads.

The HD38 has 4-axis micro-adjust guides that can be fine-tuned for optimally aligned blade support on the longitudinal axis as well as all 3 linear axes. Its Power Sawhead is equipped with standard power sawhead up-down functionality activated by a 2-way toggle switch, and for optimal control you can control the vertical speed with a dial integrated into the operator-station-mounted control panel. The ability to add a wireless remote-control power-feed and the IntelliSet® computer setworks makes it massively comfortable to operate.

The LumberMax HD38 comes ready for easy installation of our amazing Norwood hydraulics package, and with this option you can saw big logs with ease from day 1. Available comprehensive hydraulic attachments include log loader, chain drive log turner, log clamping and roller toe boards. Norwood’s HD38 empowers you with outstanding choices – including high-power hydraulics and leading-edge computer setworks and you get to choose when and how you add them. With the ability to take on the biggest logs, make the deepest cuts and mill ultra-wide slabs, the LumberMax HD38 is the ultimate sawmill dream and more.

Your choice of power. Norwood HD38 was built big—so you can take on the biggest logs, make the deepest cut and mill ultra-wide slabs. LumberMax HD38 offers two impressive power options—including the massive 23hp Briggs and Stratton V-twin electric start engine. Whatever your operation, the LumberMax HD38 has the right power for you.

Equipped standard with power saw head up-down functionality. Activated by a 2-way toggle switch, you control the vertical speed by means of a potentiometer dial integrated into the operator-station-mounted control panel.

Omega® deep-throat sawhead delivers unparalleled capacity to mill oversized beams up to 14" (14 cm) deep. The HD38's huge throat with integrated patented auto-locking adjustable guide system turns out prized slabs up to 35" (89 cm) wide.

We took the hardest-working part of the LumberPro HD38.
Engineered for maximum strength and torsional stability, Norwood’s HD38 Duradeck is built to get the job done.

It’s twin-laminated roll-formed high-strength steel rails with solid steel plate cross members handle even extreme loads. Extremely functional, the Duradeck also accommodates all hydraulic and manual attachments unparalleled to modular versatility.

The HD38’s super strong log-deck not only delivers accurate straight lumber. It gives you ultimate control of your sawmilling destiny.

QUESTIONS

  • Norwood backs up its equipment with a 30-day money-back guarantee and stands behind every Norwood band sawmill with a 2-year warranty

  • Yes, you can. All Norwood band blade sawmills have an available optional mobility system that will allow you to tow your sawmill from job to job through your woodlot right to your milling site

  • Many sawyers have their own tractors or loaders. If you do not have that kind of equipment, you can add one of the optional log loading systems available for Norwood sawmills. The LumberMax HD38 offers manual and hydraulic options.

  • When fully assembled, the LumberMax HD38 is 20' (6 m) long and 7'1" (2.16 m) wide. When setting up the mill ensure there is at least 15' (4.5 m) of firm, level ground around each side of the equipment.

  • The Norwood LumberMax HD38 is shipped in knock-down form on a pallet which helps to significantly reduce shipping costs and means they can get into even remote locations. This shipping method enhances your flexibility to order a customized sawmill that perfectly matches your milling requirements.
  • Global Machinery Solution LTD also offer to build the Norwood HD38 and deliver for an additional cost.

  • Assembly is simpler and faster than you might expect. The HD38 operator's manual includes comprehensive, step-by-step instructions, along with photos, illustrations, and exploded views to guide you through the process. Assembling your sawmill will also provide you with a deep understanding of its inner workings.
