Electric motor power |
55-75 |
kW/hp |
|
Max chipping diameter soft wood |
400 mm / 15.75'' |
mm/in |
|
Max chipping diameter hard wood |
300 mm / 11.81'' |
mm/in |
|
Maximum inlet passage |
500 x 400 mm / 19.69 x 15.75'' |
mm/in |
|
Knives |
2 - 3 |
n° |
|
Hourly throughput |
20 ÷ 30 |
m³/h |
|
Drum diameter |
660 mm / 25.98'' |
mm/in |
|
Drum width |
480 mm / 18.90'' |
mm/in |
|
Hooked steel feeding conveyor width |
500 mm / 19.69'' |
mm/in |
|
Hooked steel feeding conveyor length |
550 mm / 21.65'' |
mm/in |
|
Cutting depth adjustment |
15 |
mm |

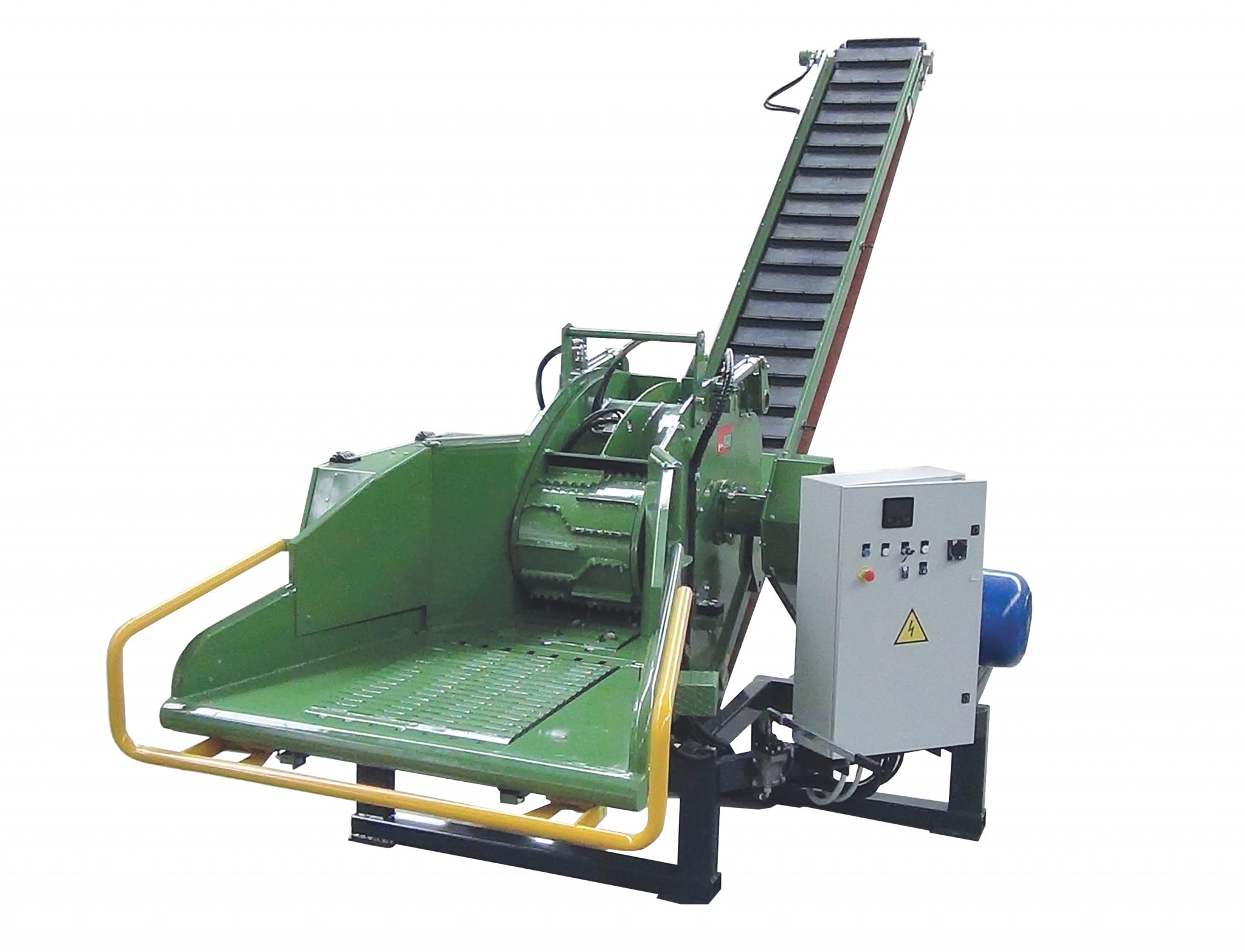

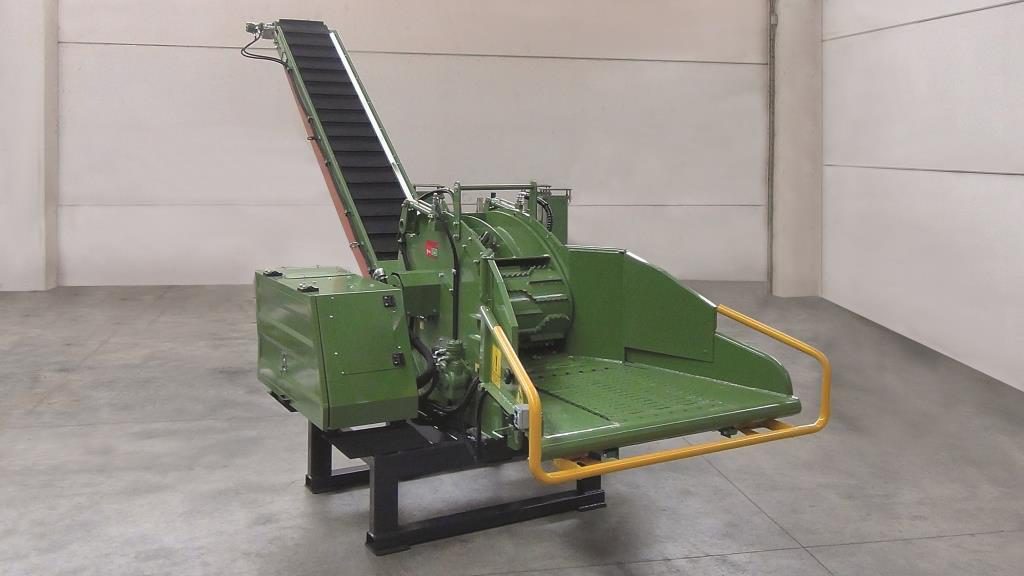

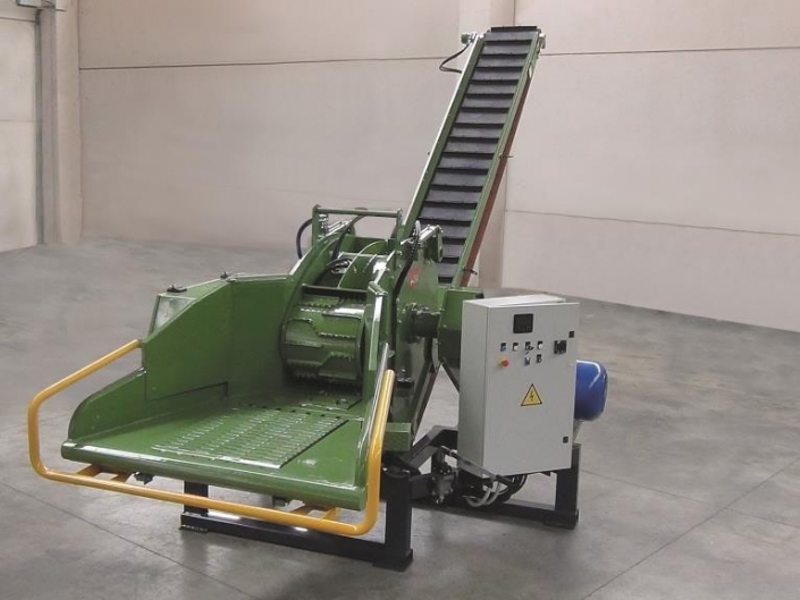

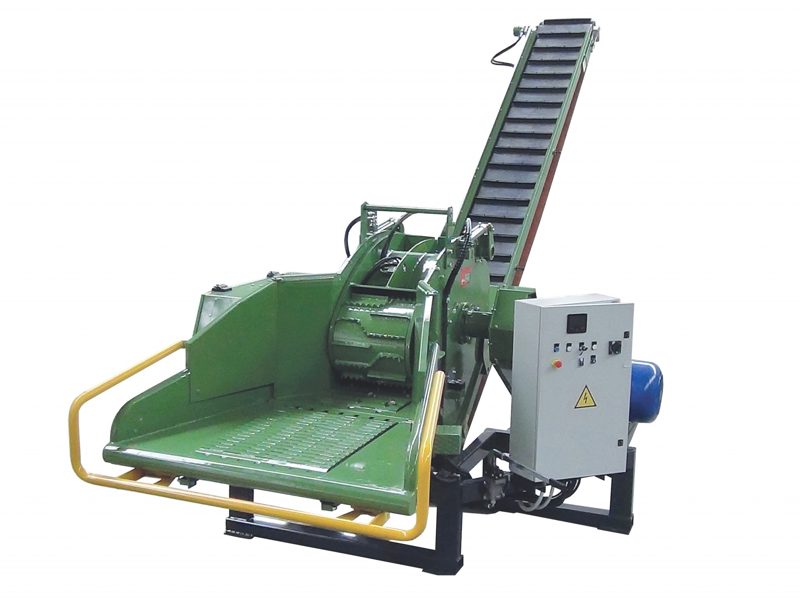

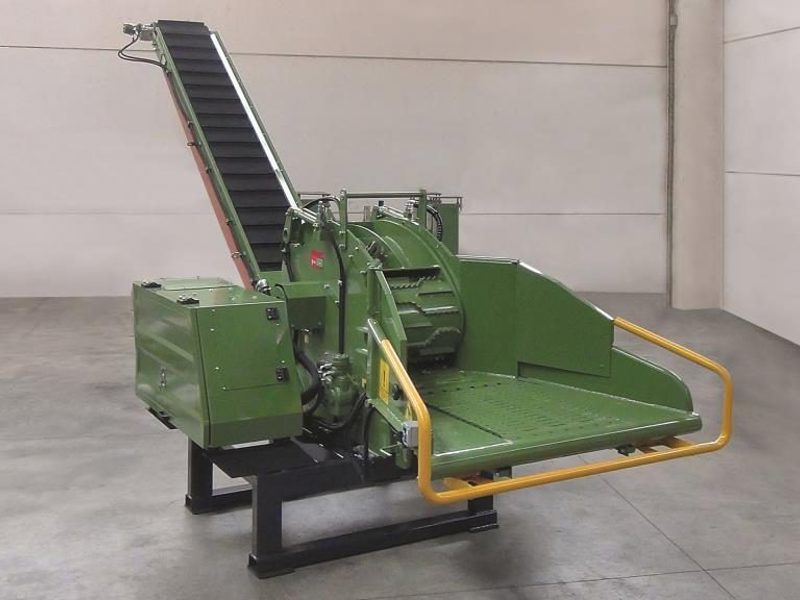

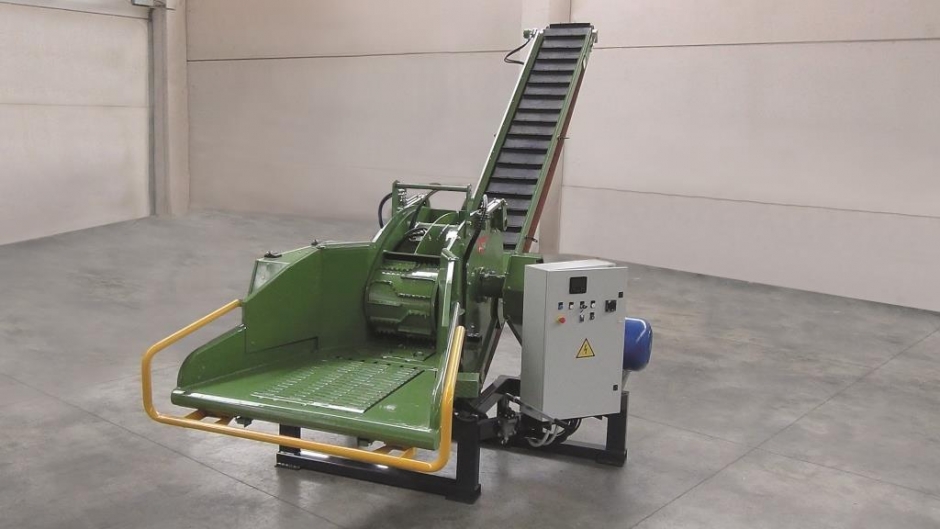

Pezzolato PTH 500E
The smaller model of the 660 series of Pezzolato drum chippers.

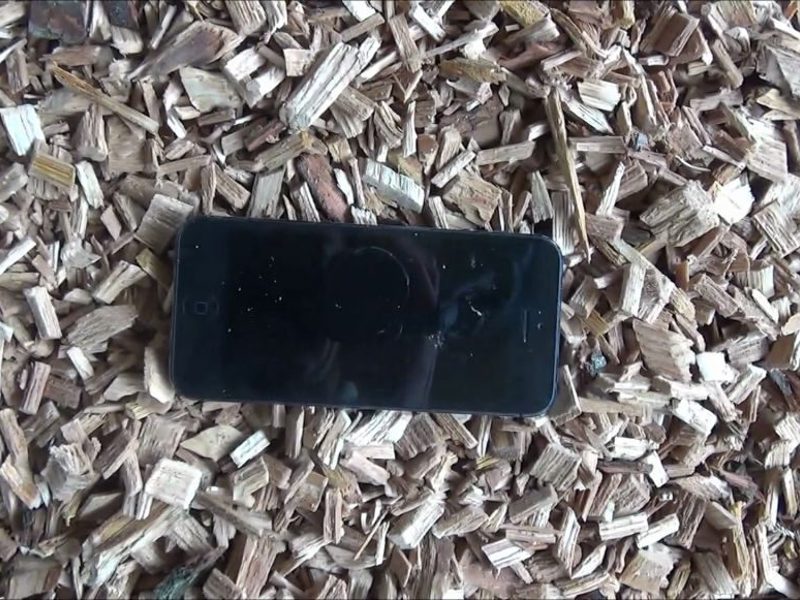

This particular machine is ideal for those who produce wood chips as fuel for domestic heating systems, for agricultural tourism, hotels, greenhouses, schools, or for those who simply need to reduce the debris from pruning.

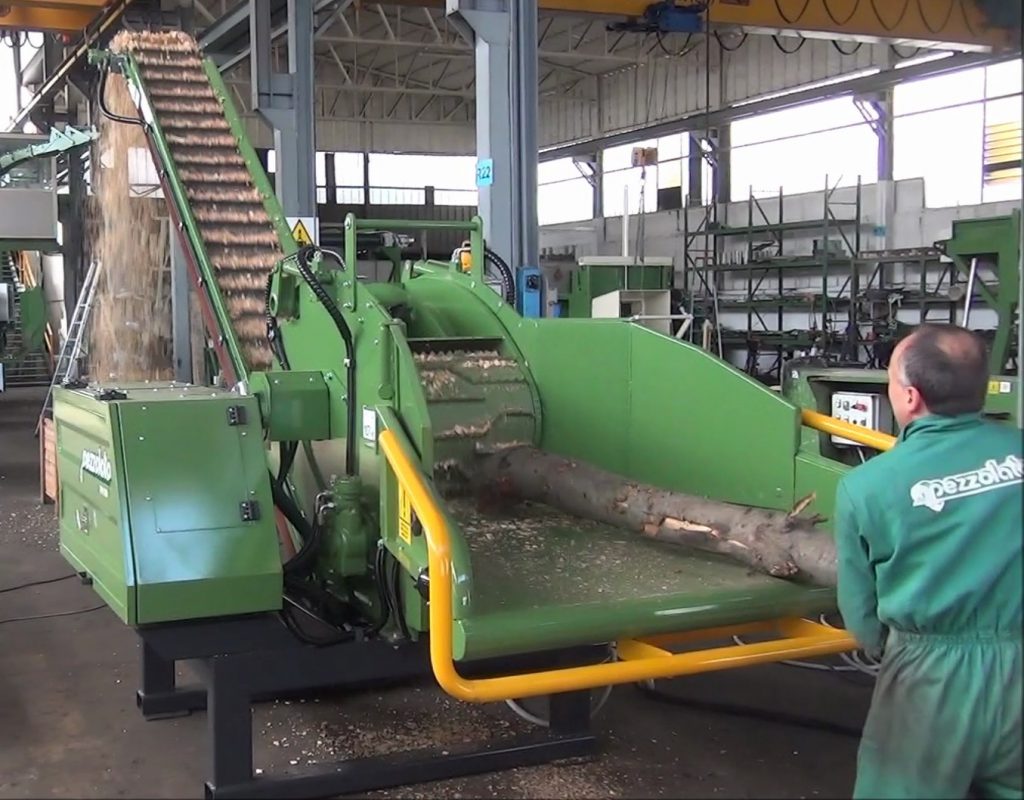

It can be fed manually or using a mechanical loader.
The entry of material is facilitated by a feed conveyor inside the hopper (on request a second feed conveyor can be supplied for the hopper tipper).
The combined action of the belt and upper roller facilitates the introduction of bulk material, even using mechanical loaders.
Routine maintenance and the replacement of knives can be performed extremely quickly and easily thanks to the “total” lifting of the feed roller.
Maximum chipping diameter: 250 mm
Maximum inlet passage: 640 x 400 mm
Electric motor power: 75 kw
