Diesel engine power |
510-540/375-397 |
hp/kW |
Max chipping diameter soft wood |
600 |
mm/in |
Max chipping diameter soft wood |
450 |
mm/in |
Maximum inlet passage |
1400 x 900 |
mm/in |
Knives |
5 |
n° |
Hourly throughput |
up to 200 |
m³/h |
Drum diameter |
820 |
mm/in |
Drum width |
1400 |
mm/in |
Feeding channel width |
1400 |
mm |
Feed table length |
2200 |
mm |
Pezzolato PTH 1400/820 TORNADO

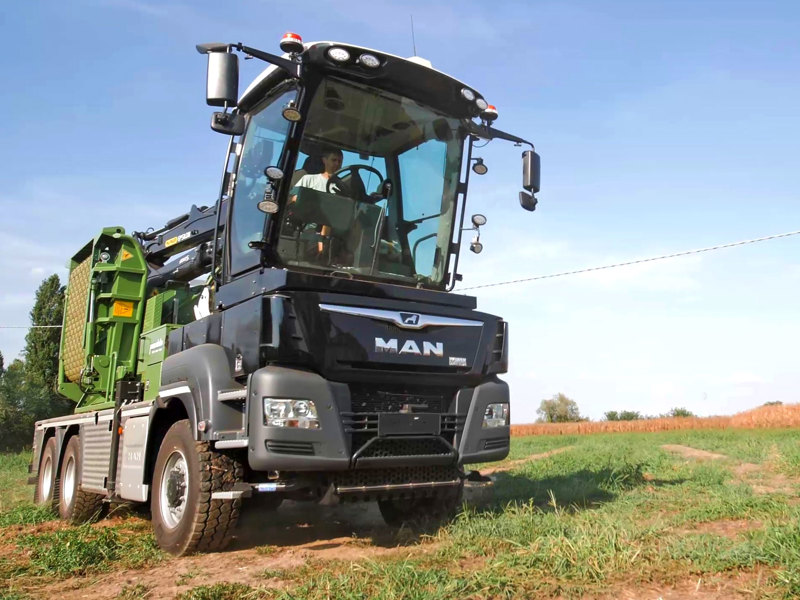

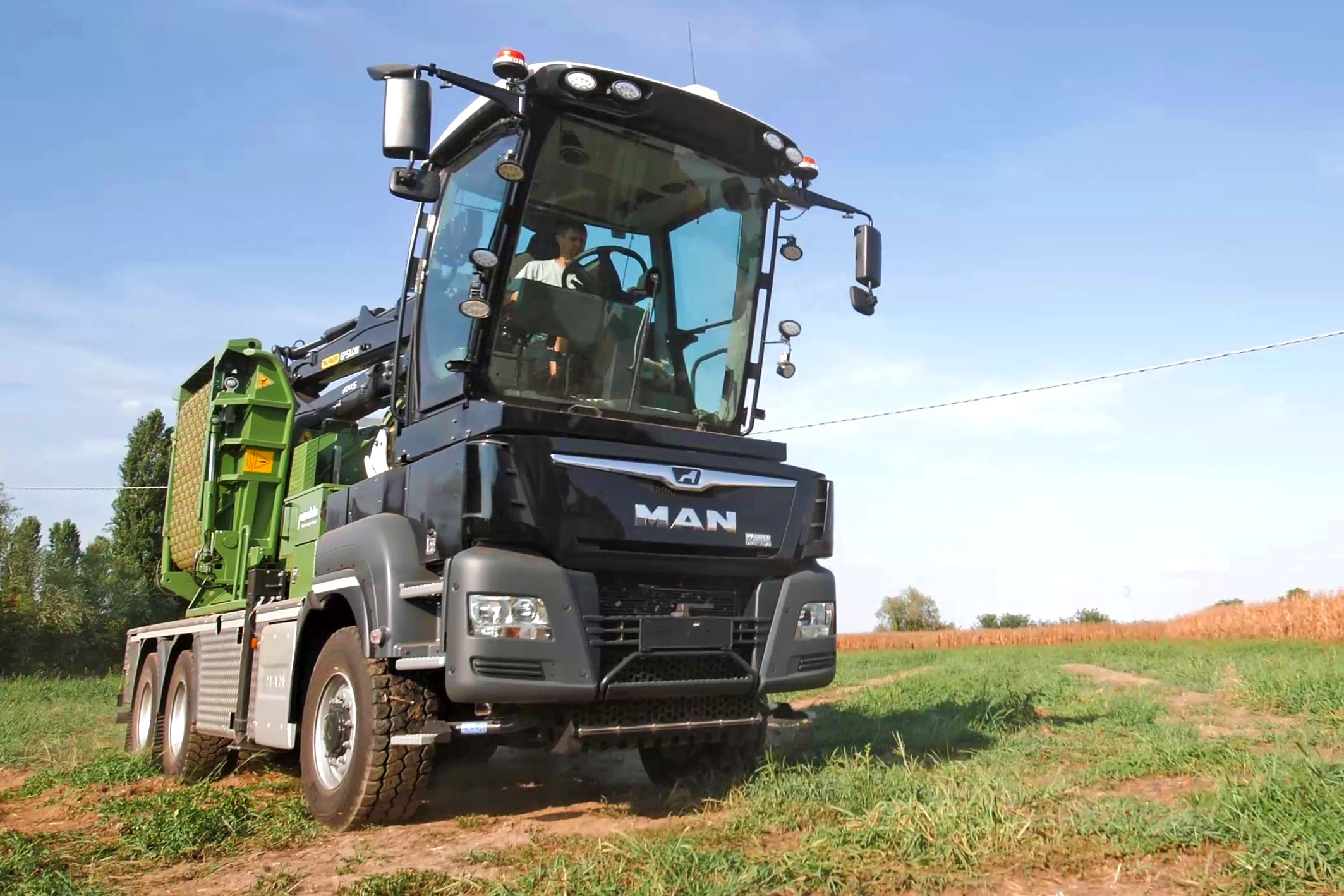

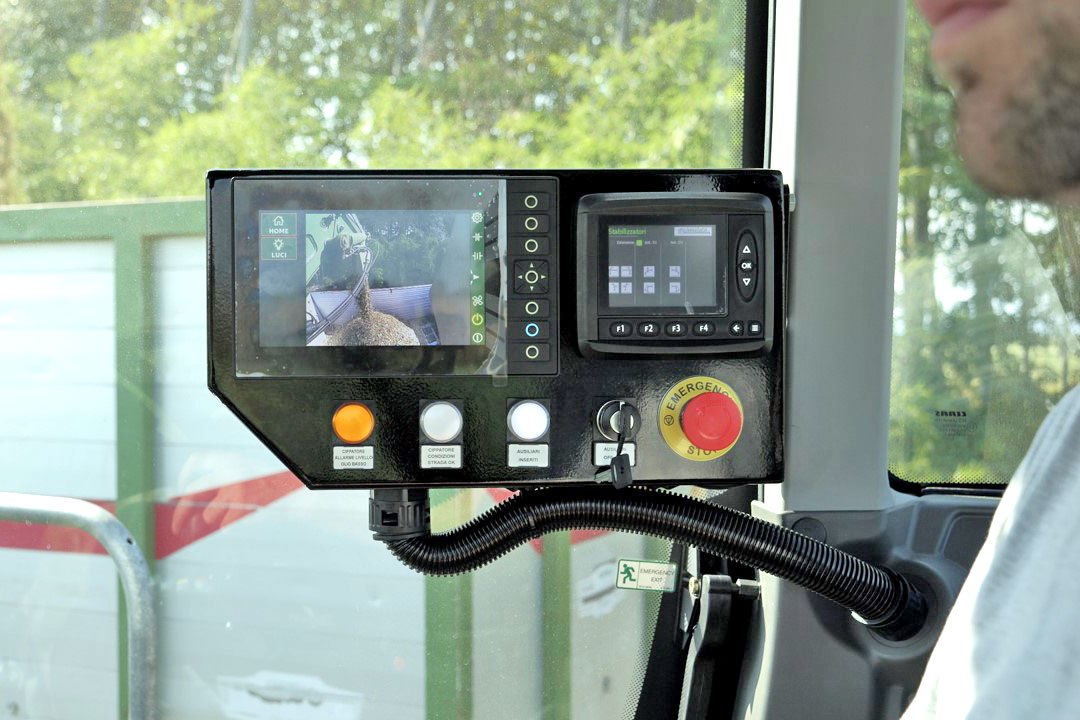

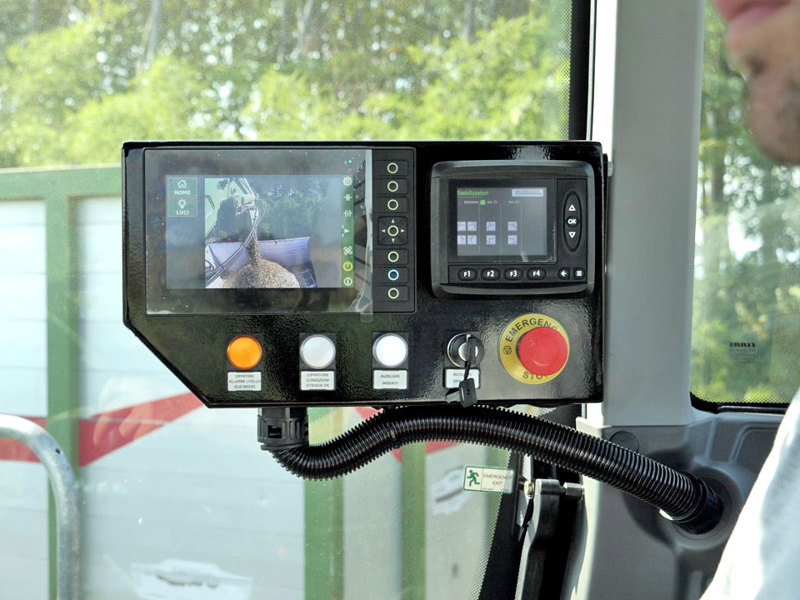

The “Tornado” version of the PTH 1400/820 chipper. It is a new Hackertruck model set up on a 510 HP MAN 6×6 truck, a rotating cab with high visibility and comfort for the operator both in the transport position and in the working position.

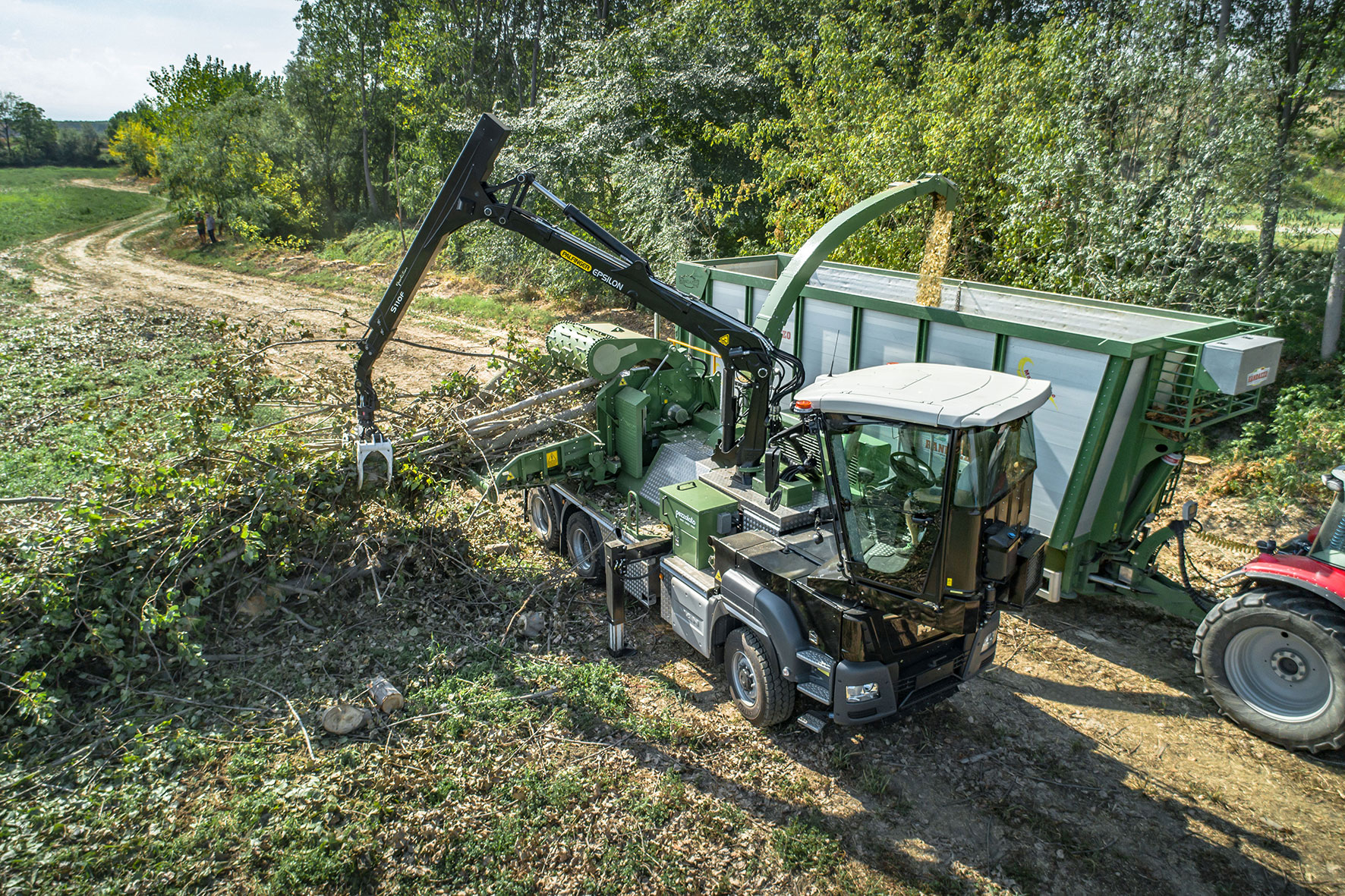

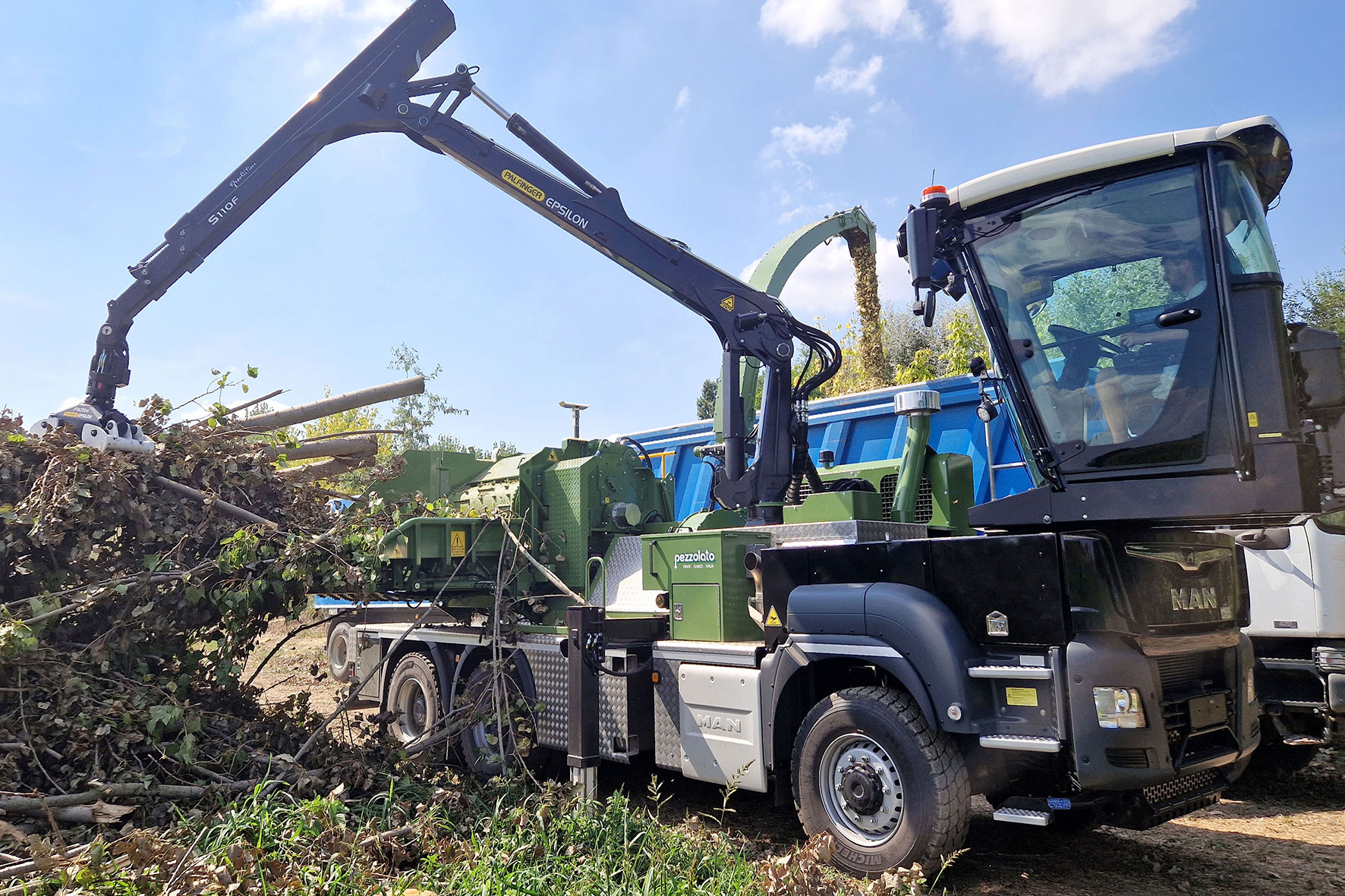

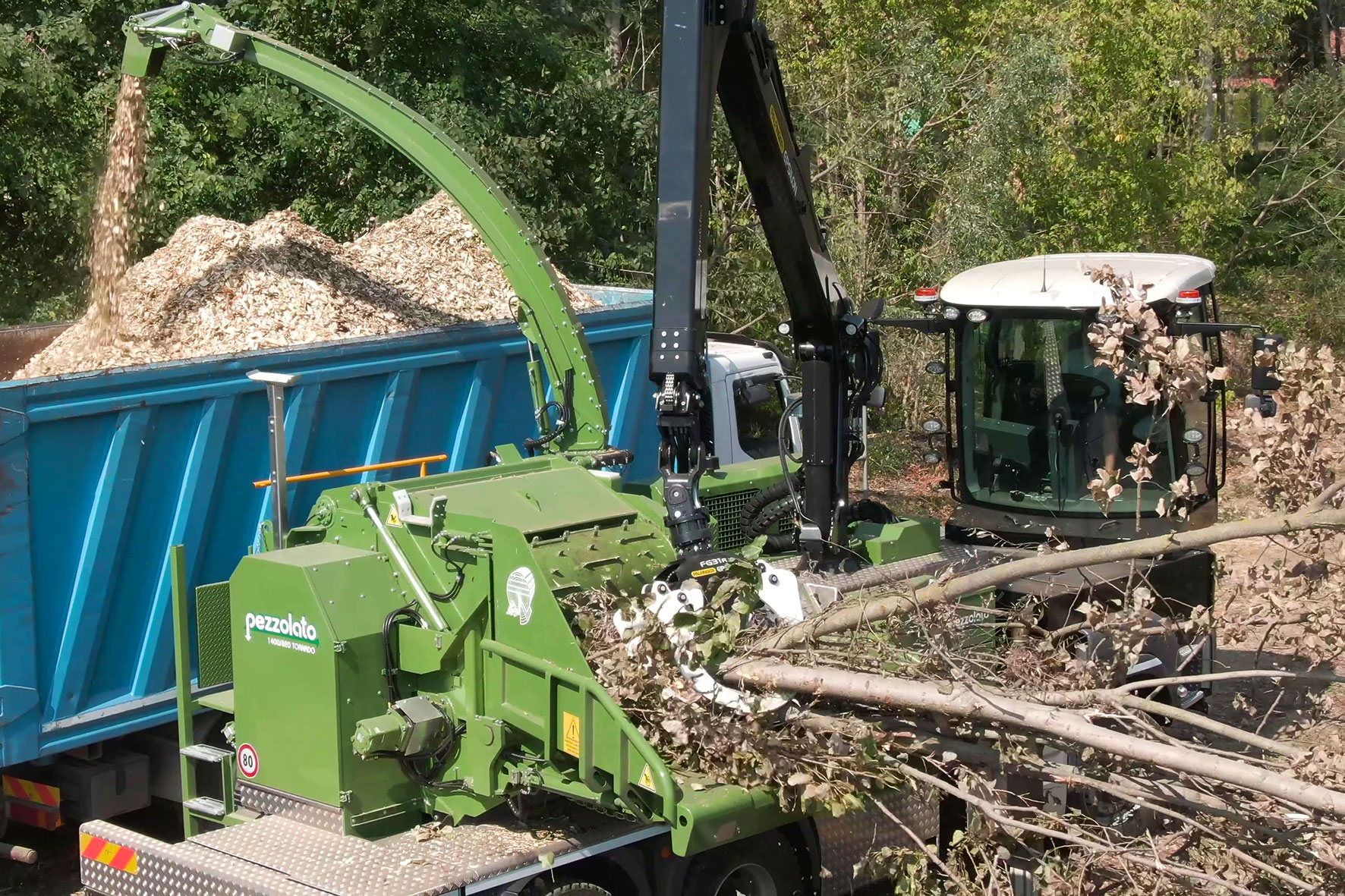

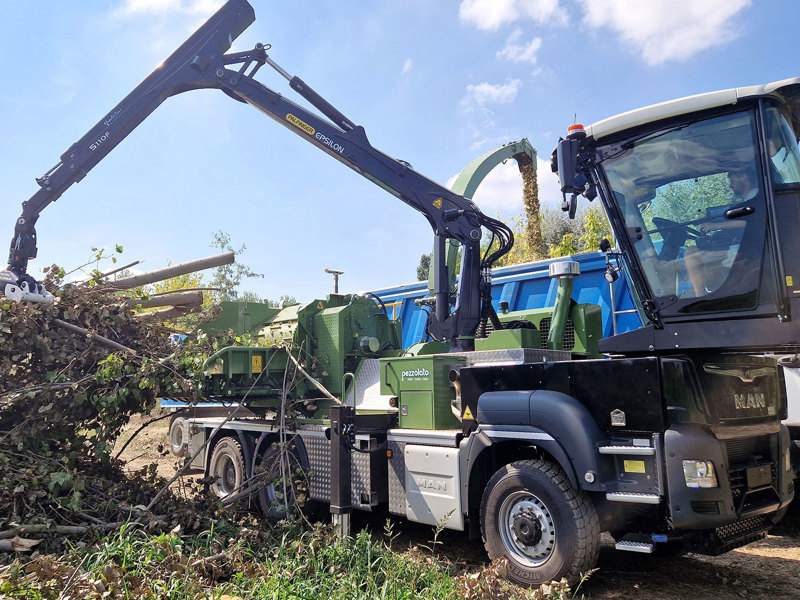

This version is characterized by the hydraulic fan positioned in the centre of the vehicle, which also allows unloading in front of the cab, in addition to the usual side and rear positions; the vehicle also has the possibility of moving along the pile of wood in working position, without interrupting the movement of the drum. A technical solution particularly appreciated by the operators, as it guarantees greater speed in movement on site and consequently greater production. Discover all Pezzolato wood chippers.
