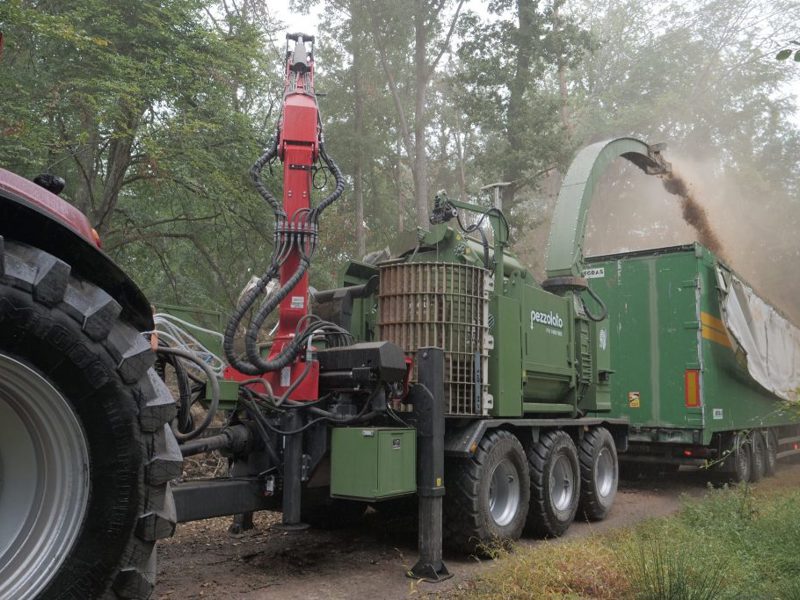

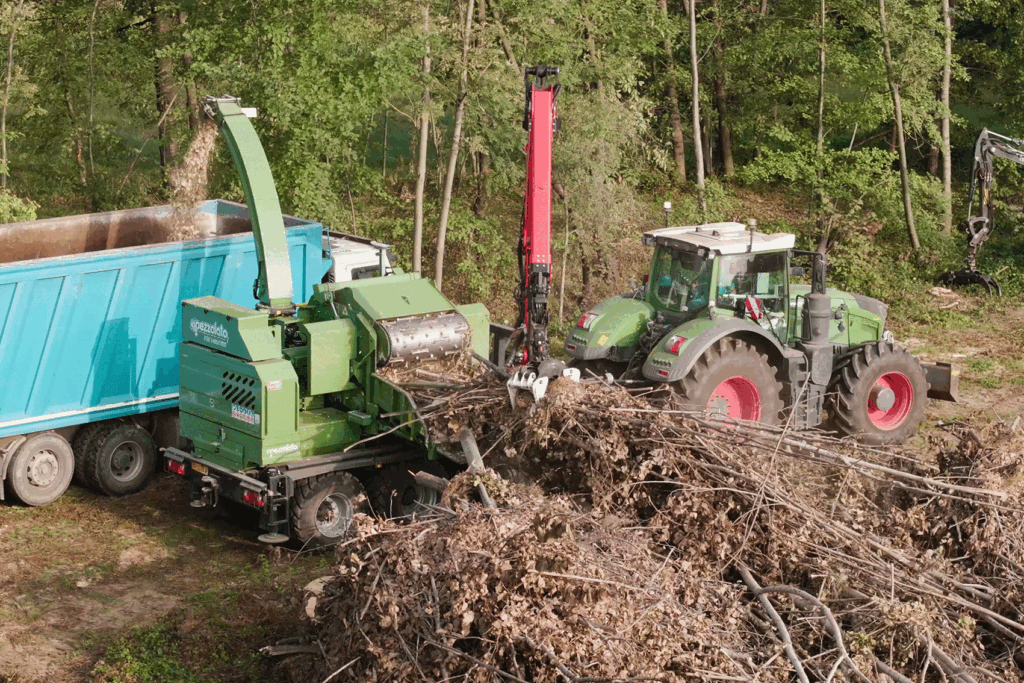

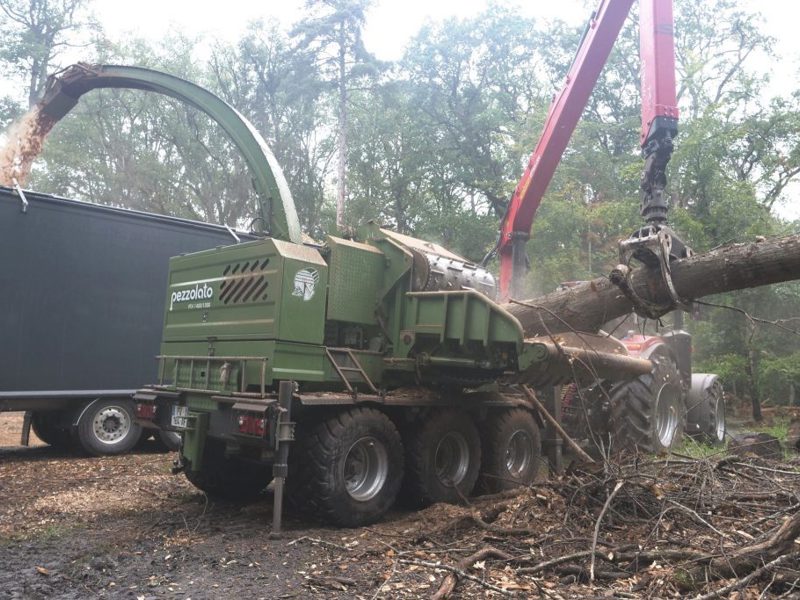

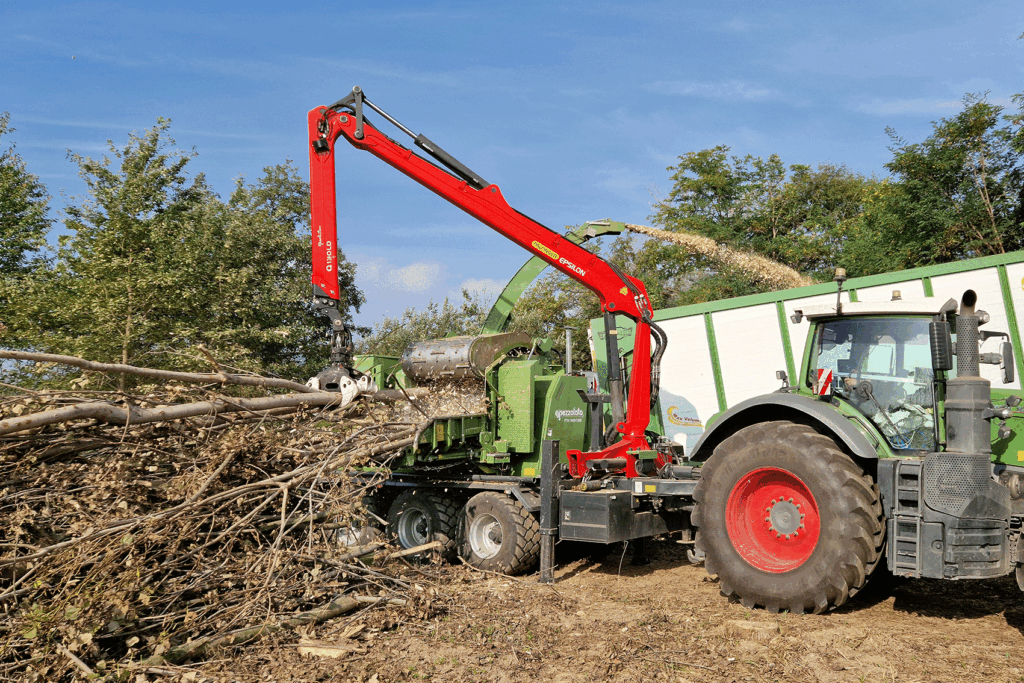

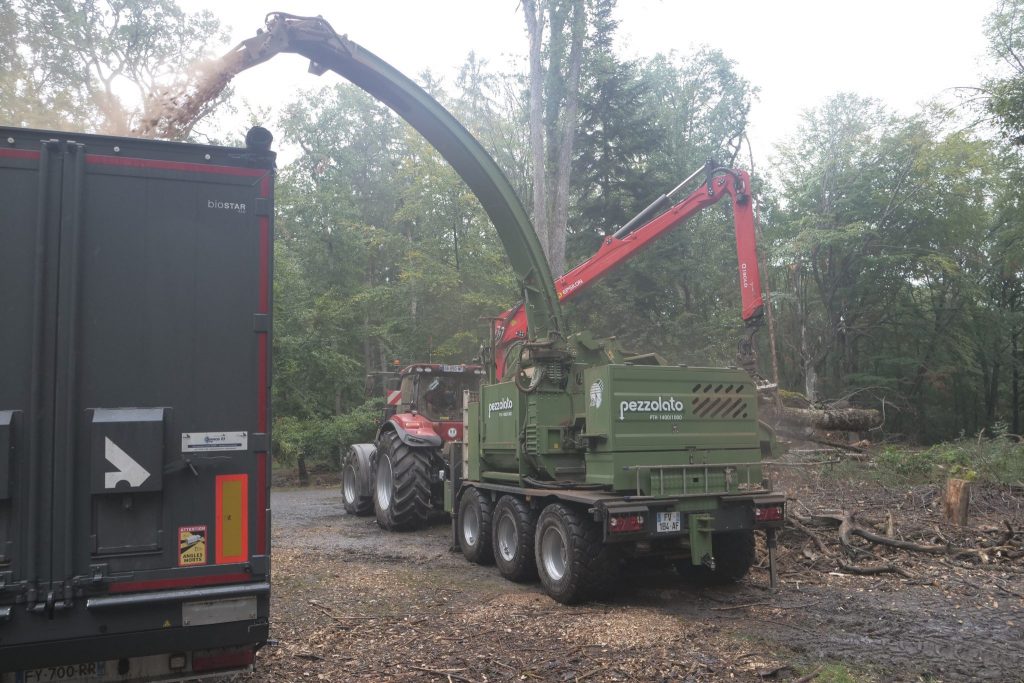

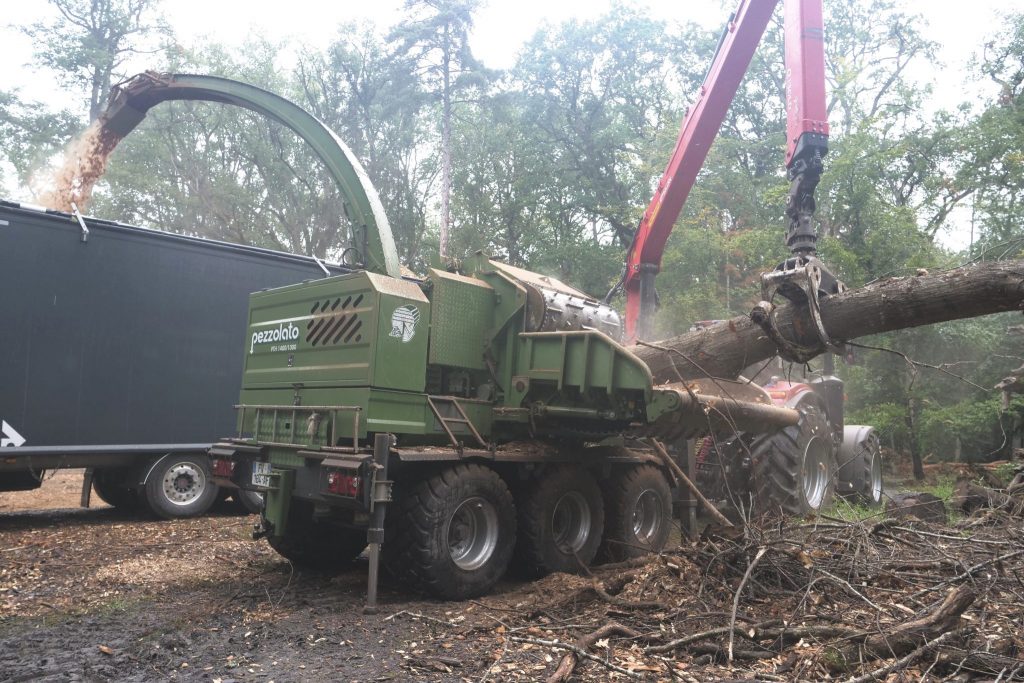

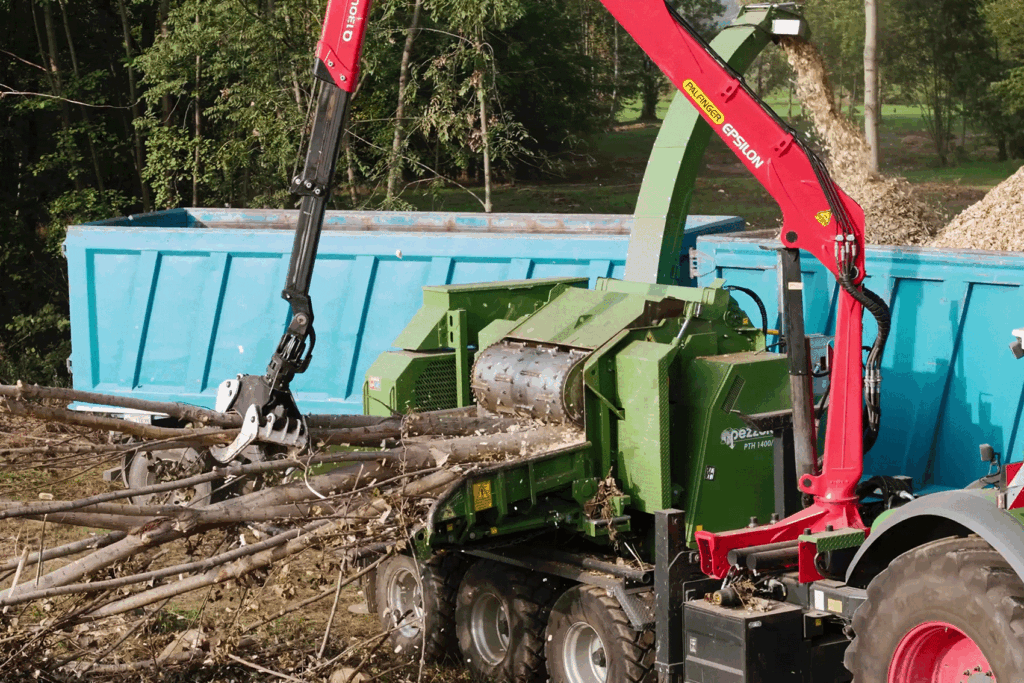

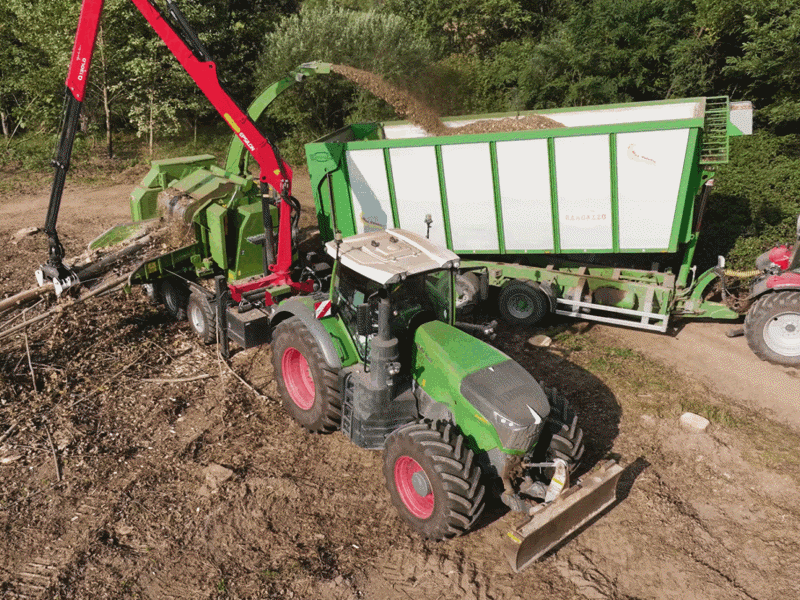

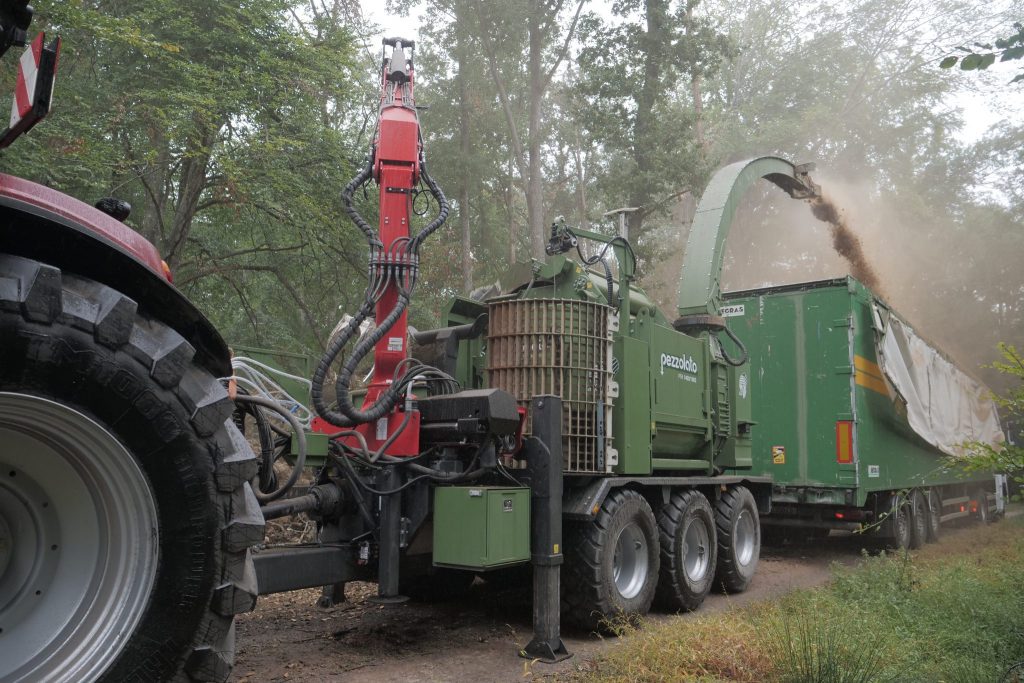

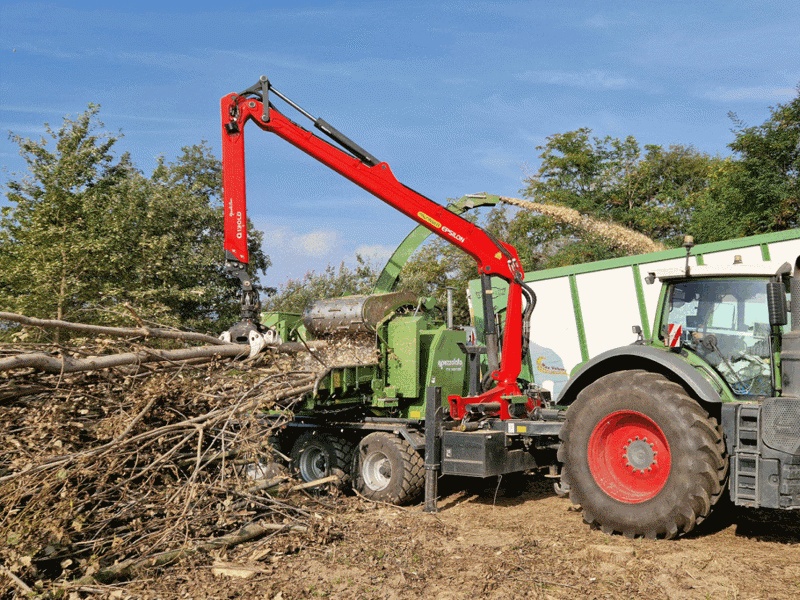

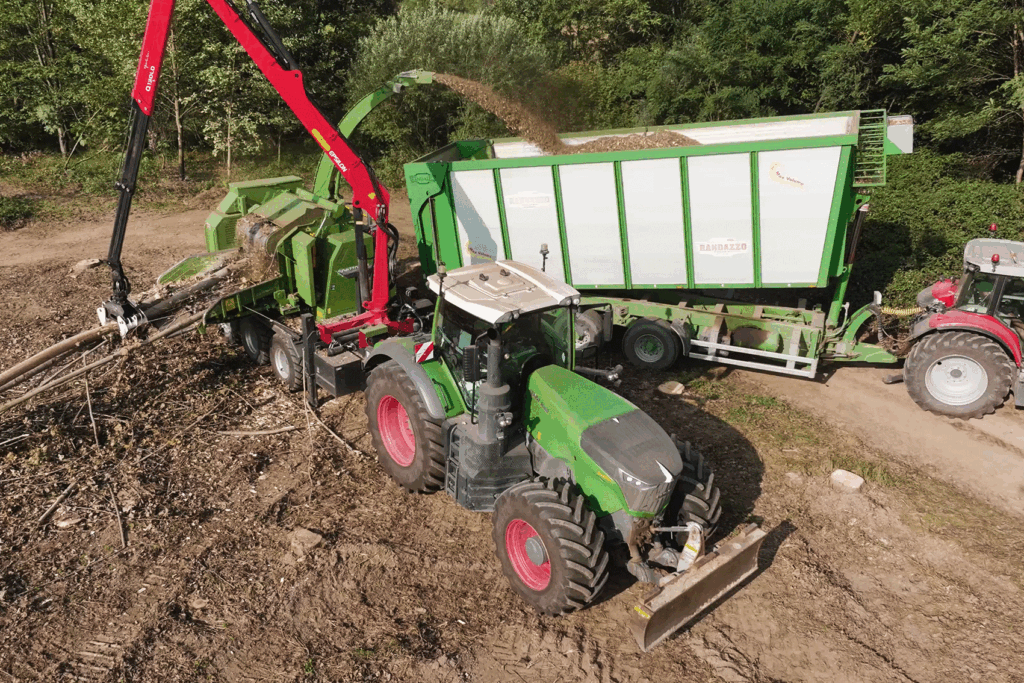

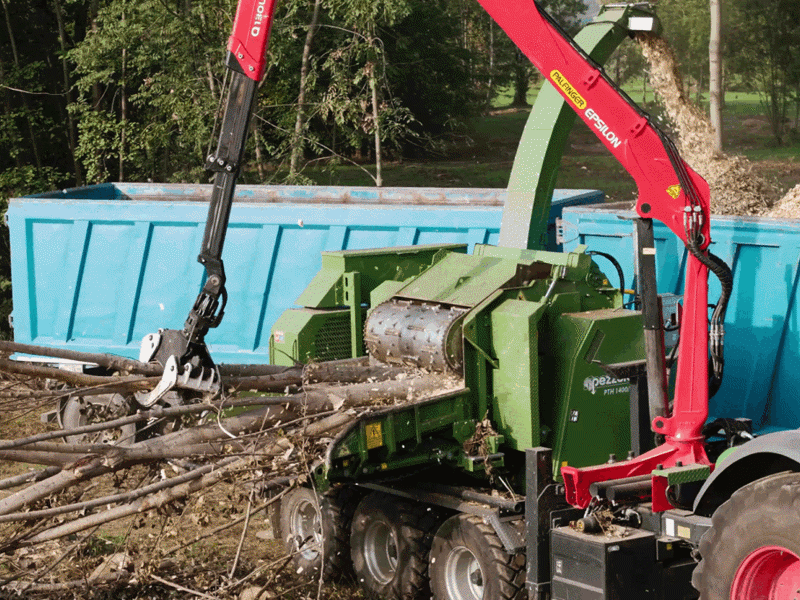

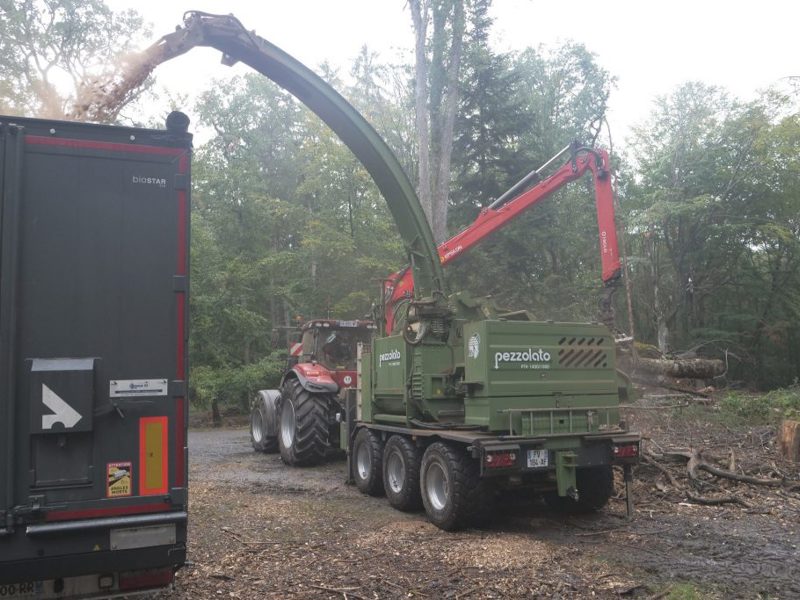

Pezzolato PTH 1400/1000

PTH 1400/1000 is one of the heavy duty machines to chip big diameter logs within Pezzolato drum chippers, whose drum diameter measures 1000 mm (3′ 3.37”).

Its feeding mouth is 1400 mm (4′ 7.12”) wide.

Able to produce up to 300 m³ chips per hour, it guarantees high throughput.

The Pezzolato solid drum, well-known for reliability, wear-resistance and no maintenance, has been designed to guarantee the best quality wood chips, either small or big dimensions. It is staggered section type in order to distribute the machine’s effort equally, reducing vibrations, noise and consumption.

The sharp cut through the blades and the large drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato wood chippers.

The wear spare parts of all machines are cost effective and simple to replace in short maintenance times and cheap.

The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.

Download Brochure Enquire Now

Technical Specification

Minimum tractor power	240/179	hp/kW
Maximum power of the tractor	600/447	hp/kW
Max chipping diameter soft wood	800 mm / 31.50''	mm/in
Max chipping diameter hard wood	550 mm / 21.65''	mm/in
Maximum inlet passage	1400 x 1100 mm / 4' 7.12'' x 3' 7.31''	mm/in
Knives	5	n°
Hourly throughput	until 300	m³/h
Drum diameter	1000 mm / 3' 3.37''	mm/in
Drum width	1400 mm / 4' 7.12''	mm/in
Hooked steel feeding conveyor width	1400 mm / 4' 7.12''	mm/in
Hooked steel feeding conveyor length	2200 mm / 7' 2.61''	mm/in
Weight	19000 kg / 41887 lbs	kg/lbs
Hopper length	2400	mm
