Diesel engine power |
CAT C18 563KW -755 |
hp/kW |
|
Diesel engine power |
CAT C27 563KW - 755 |
hp/kW |
|
Max chipping diameter soft wood |
900 mm / 35.43'' |
mm/in |
|
Max chipping diameter hard wood |
650 mm / 25.59'' |
mm/in |
|
Maximum inlet passage |
1200 x 1200 mm / 3' 11.24'' x 3' 11.24'' |
mm/ft |
|
Knives |
5 |
n° |
|
Hourly throughput |
350 |
m³/h |
|
Drum diameter |
1200 mm / 3' 11.24'' |
mm/ft |
|
Drum width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Lower roller |
2 |
n° |
|
Hooked steel feeding conveyor width |
1200 mm / 3' 11.24'' |
mm/ft |
|
Hooked steel feeding conveyor length |
2200 mm / 7' 2.61'' |
mm/ft |
|
Weight |
28500 kg / 62832 lbs |
kg/lbs |

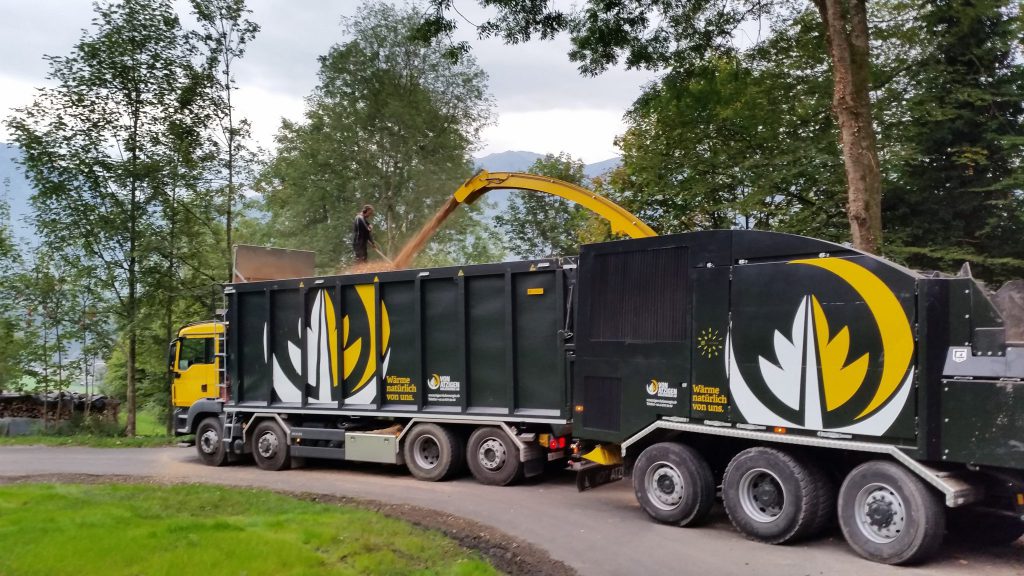

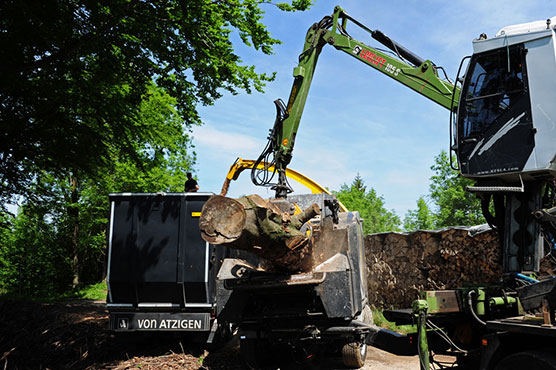

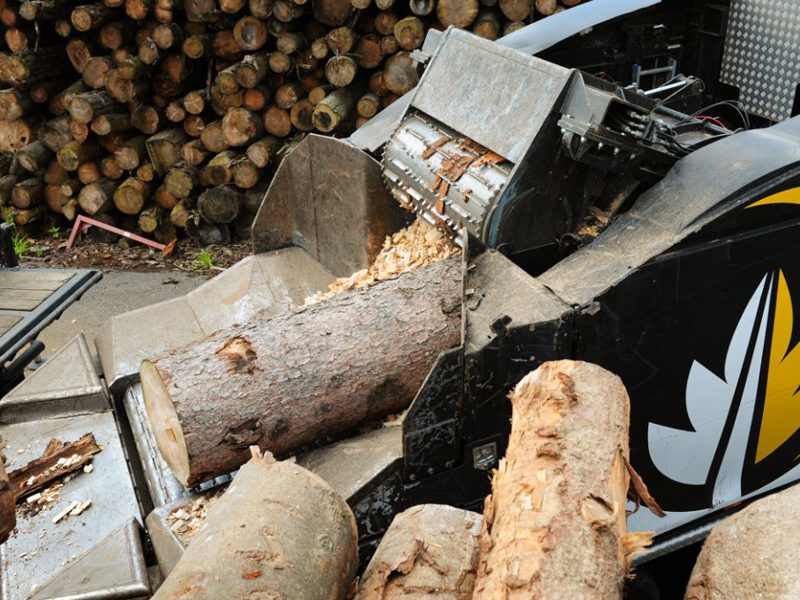

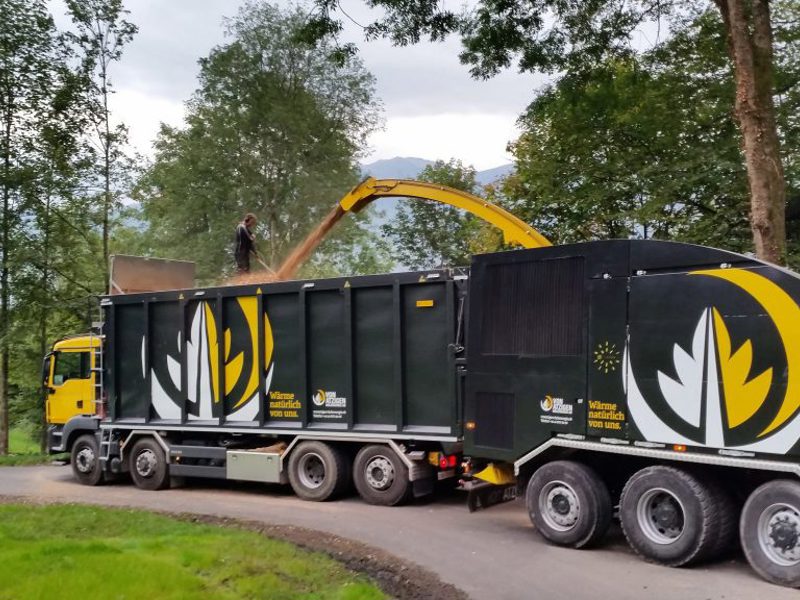

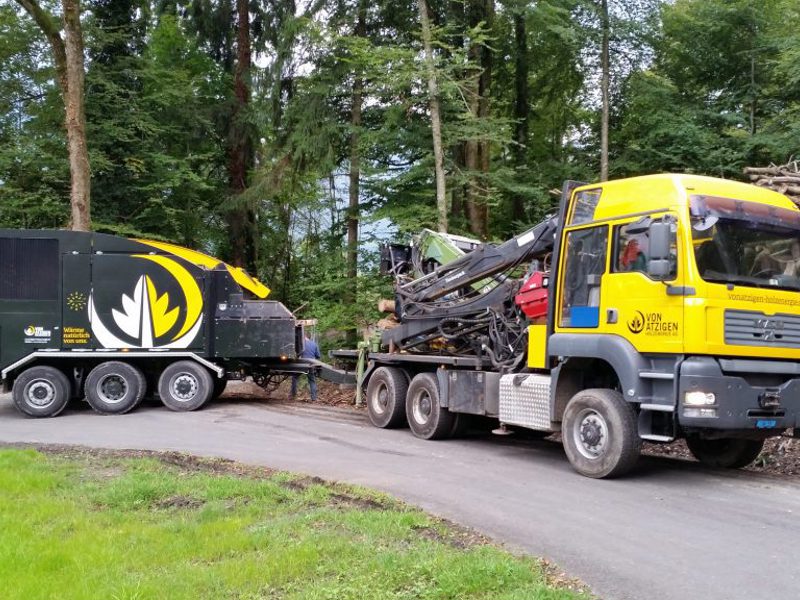

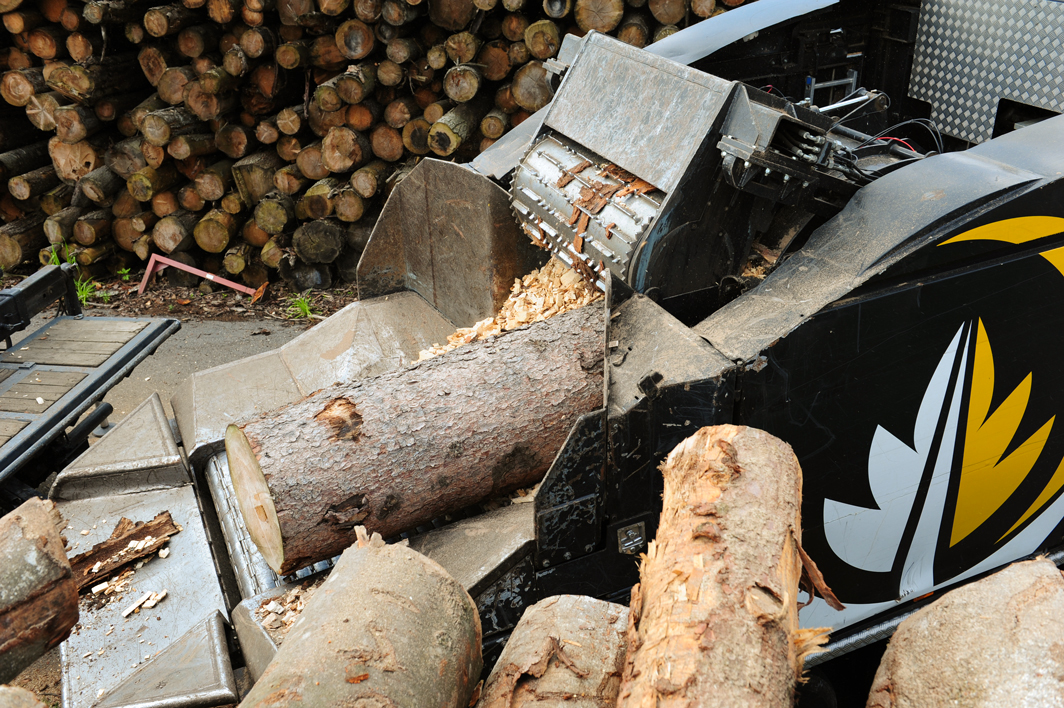

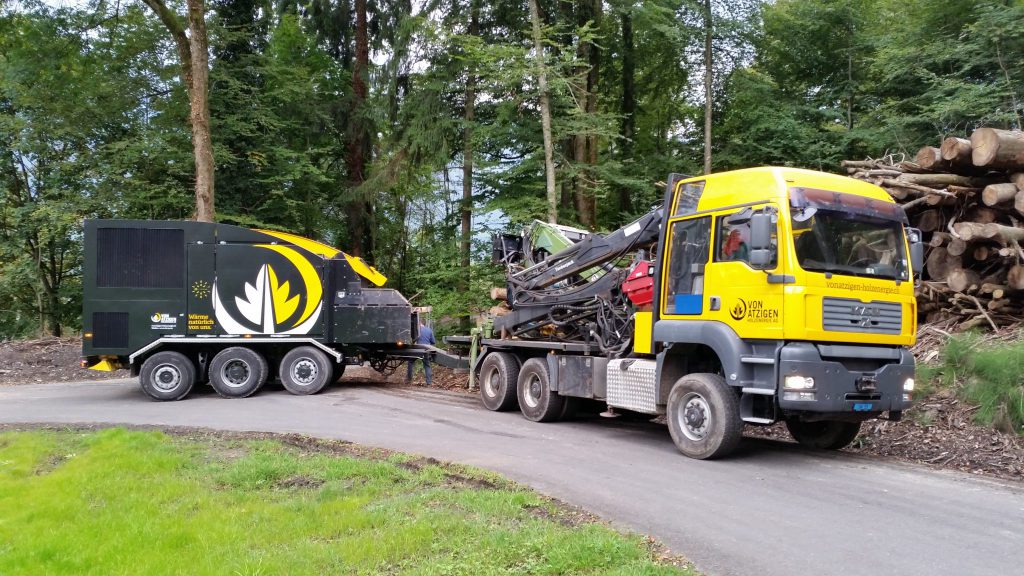

Pezzolato PTH 1200/1200
PTH 1200/1200 is one of the heavy duty machines to chip big diameter logs within Pezzolato drum chippers, whose drum diameter measures 1200 mm (3′ 11.24”).
Its feeding mouth is 1200 mm (3′ 11.24”) wide.
Able to produce untill 350 m3 chips per hour, it guarantees high throughput.
Thanks to the closed drum, it produces high quality chips, whatever wood is cut, considerably reducing fuel consumption.
The sharp cut through the blades and the drum’s inertia reduce the machine’s efforts and stress, thus confirming the well-known solidity of Pezzolato drum chippers.
The wear parts of all machines are simple to replace in short maintenance times and cheap.
The electronic controller suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance plan.
Chipping dimeter and declared production are variable according to the available power, wood type and chips size.
Maximum chipping diameter: 600 mm
Maximum inlet passage :1200 x 900 mm
Diesel engine power: 550hp
