Diesel engine power |
200/149 - 413/308 |
hp/kW |
|
Max chipping diameter soft wood |
500 mm / 19.69'' |
mm/in |
|
Max chipping diameter hard wood |
350 mm / 13.80'' |
mm/in |
|
Maximum inlet passage |
640 x 600 mm / 25.20 x 23.62'' |
mm/in |
|
Knives |
3 |
n° |
|
Hourly throughput |
until 80 |
m³/h |
|
Drum diameter |
660 mm / 25.98'' |
mm/in |
|
Drum width |
640 mm / 25.20'' |
mm/in |
|
Hooked steel feeding conveyor width |
640 mm / 25.20'' |
mm/in |
|
Hooked steel feeding conveyor length |
2200 mm / 7' 2.61'' |
mm/ft |
|
Weight |
8200 kg / 18078 lbs |
kg/lbs |

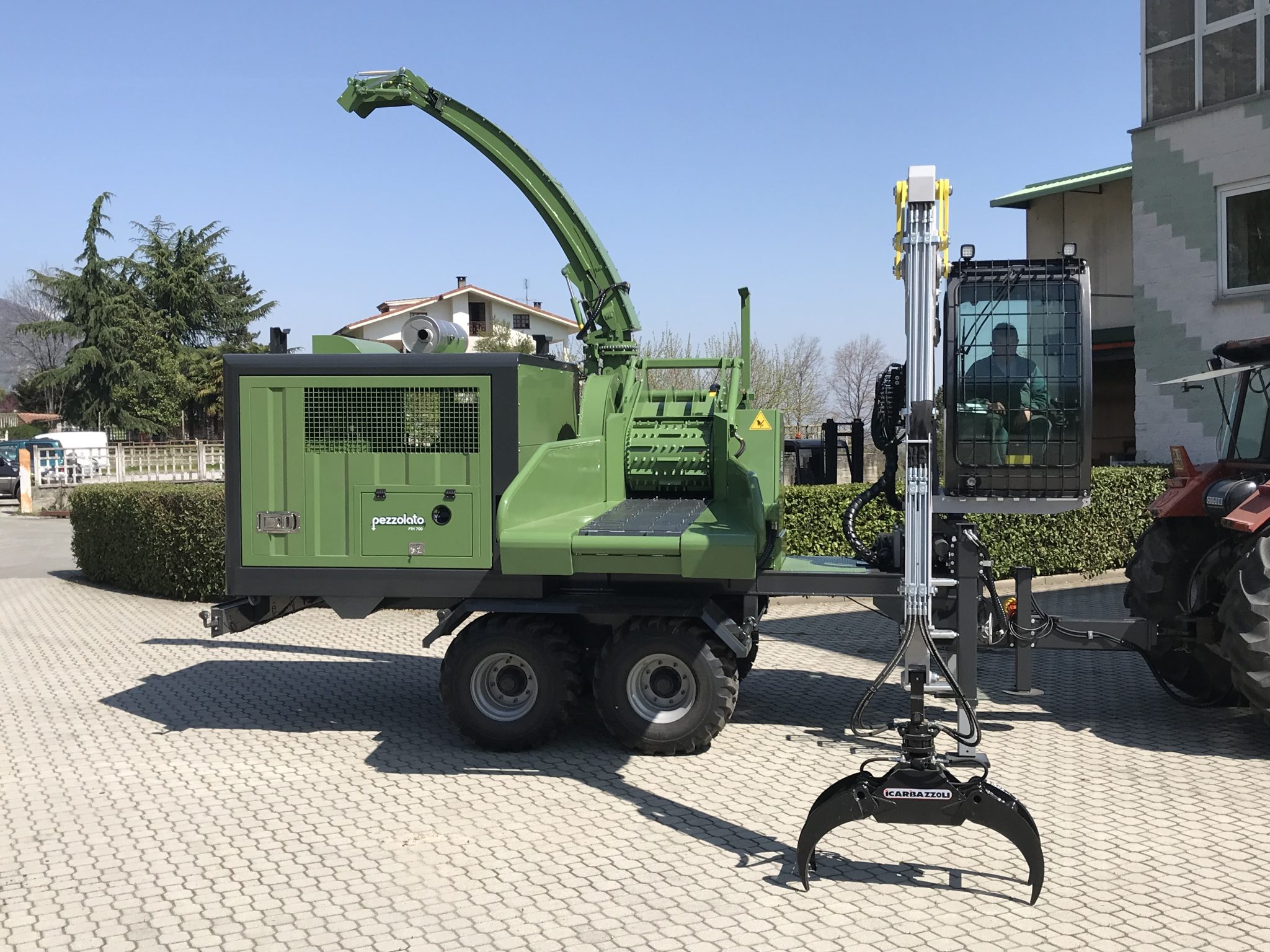

Pezzolato PTH 700
PTH 700 is one of the medium power machines within Pezzolato drum chippers, whose drum diameter measures 660 mm (25.98”).
Its feeding mouth is 640 mm (25.20”) wide.
Able to produce up to 80 m³ chips per hour, it guarantees high throughput.

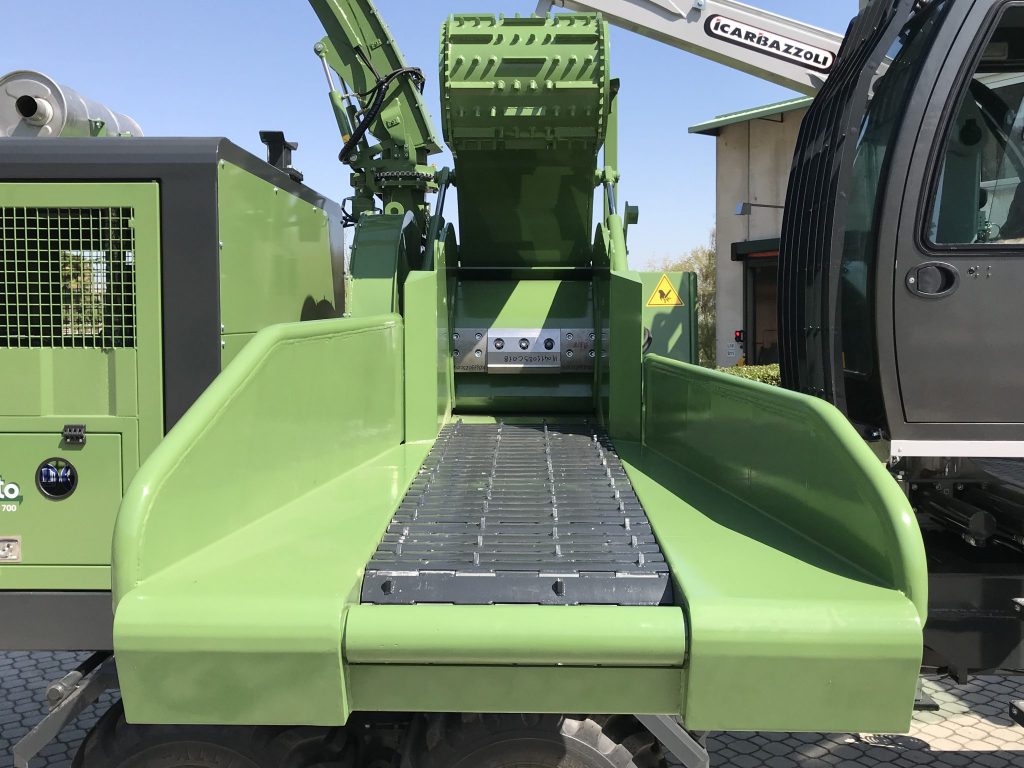

The design of the conical hopper (without bottlenecks that tend to trap the material), combined with a catenary system able to move the material directly to the drum, allows feeding of bulk material.
The large fan (1250 mm) mounted directly on the drum shaft is able to work at a low speed (less than 600 revs) to help reduce dust and increase wood chip quality.
Each standard installation includes a single axis trailer which provides compactness and increases agility and manoeuvrability in tight spaces.
The wear parts of all machines are cost effective and simple to replace in short maintenance times.
The drum with cutting system interchangeable where required, makes these chippers ideal for the production of wood chips used with domestic boilers, large power plants or gasifiers.
The integrated computer suggests any ordinary and extraordinary maintenance operations to be performed according to the manufacturer’s maintenance.
Maximum chipping diameter: 400 mm
Maximum inlet passage: 640 x 400 mm
Diesel engine power: 122 - 173Hp
