Minimum tractor power |
110 hp / 82 kW |
hp/kW |
|
Diesel engine power |
238 hp / 177 kW |
hp/kW |
|
Electric motor power |
110-160-200 kW / 148-215-268 hp |
kW/hp |
|
Hopper dimensions |
3500 x 1800 x 800 mm / 11' 5.79'' x 5' 10.87'' x 31.50'' |
mm/ft |
|
Width of measuring roller |
1000 mm / 3' 3.37'' |
mm/in |
|
Dosing roller max opening |
400 mm / 15.75'' |
mm/in |
|
Chopping chamber diameter |
960 mm / 3' 1.79'' |
mm/in |
|
Loading chain dimensions |
3000 x 1000 mm / 9' 10.11'' x 3' 3.37'' |
mm |
|
Number of hammers |
28 |
n° |
|
Hammers thickness |
25-45 mm / 0.984-1.772'' |
mm/in |
|
Hammers peripheral speed |
62 |
m/s |
|
Hourly throughput |
60 |
m³/h |
|
Overall dimensions |
7900 x 2300 x 3000 mm / 25' 11.02'' x 7' 6.55'' x 9' 10.11'' |
mm/ft |
|
Weight PTO machine (std model) |
8800 kg / 19400 lbs |
kg/lbs |

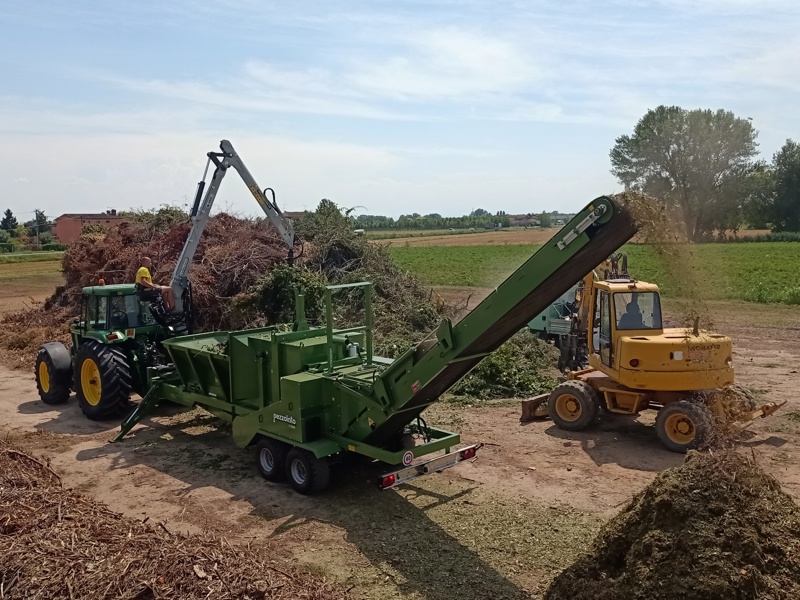

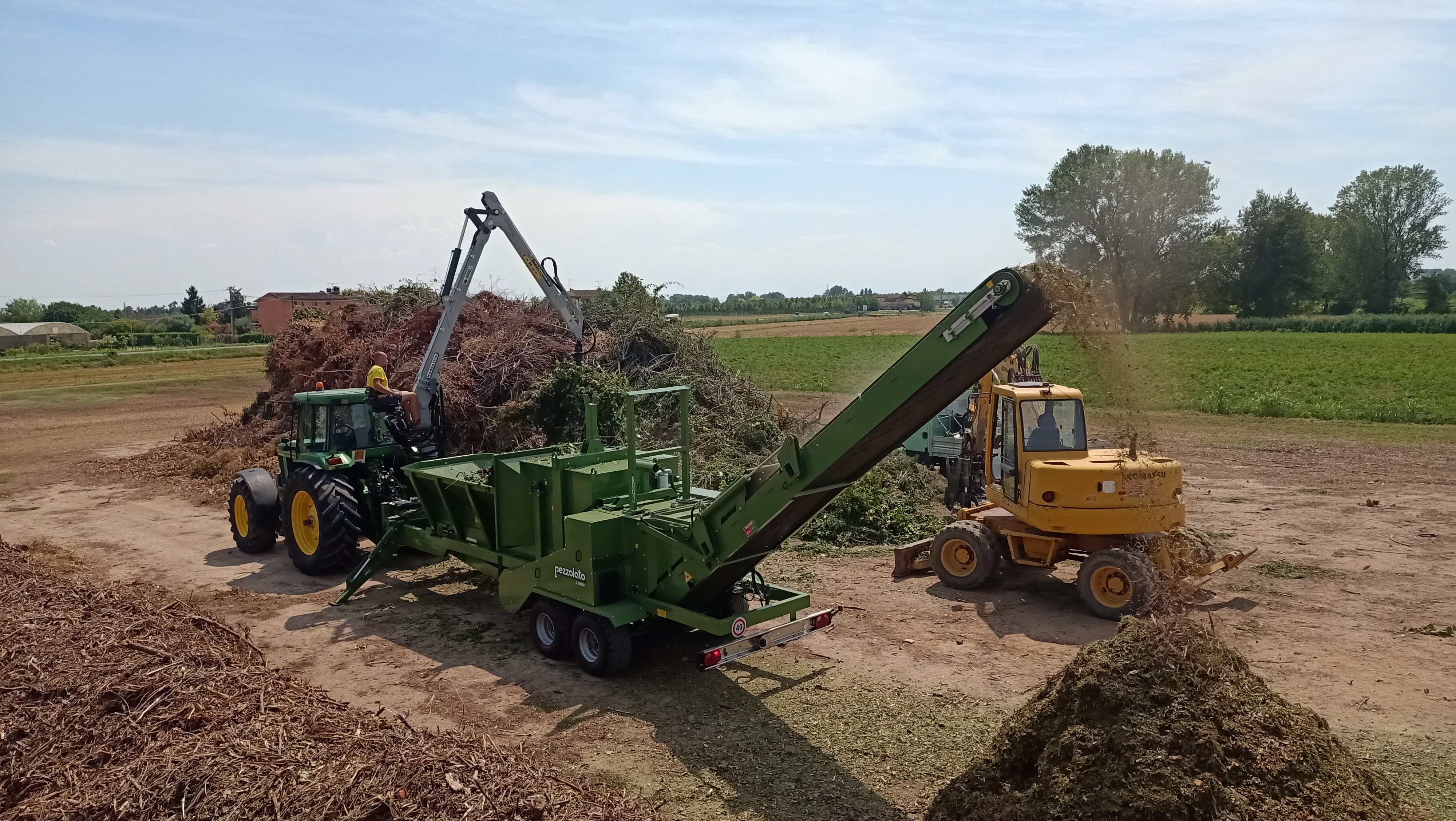

Pezzolato S10000

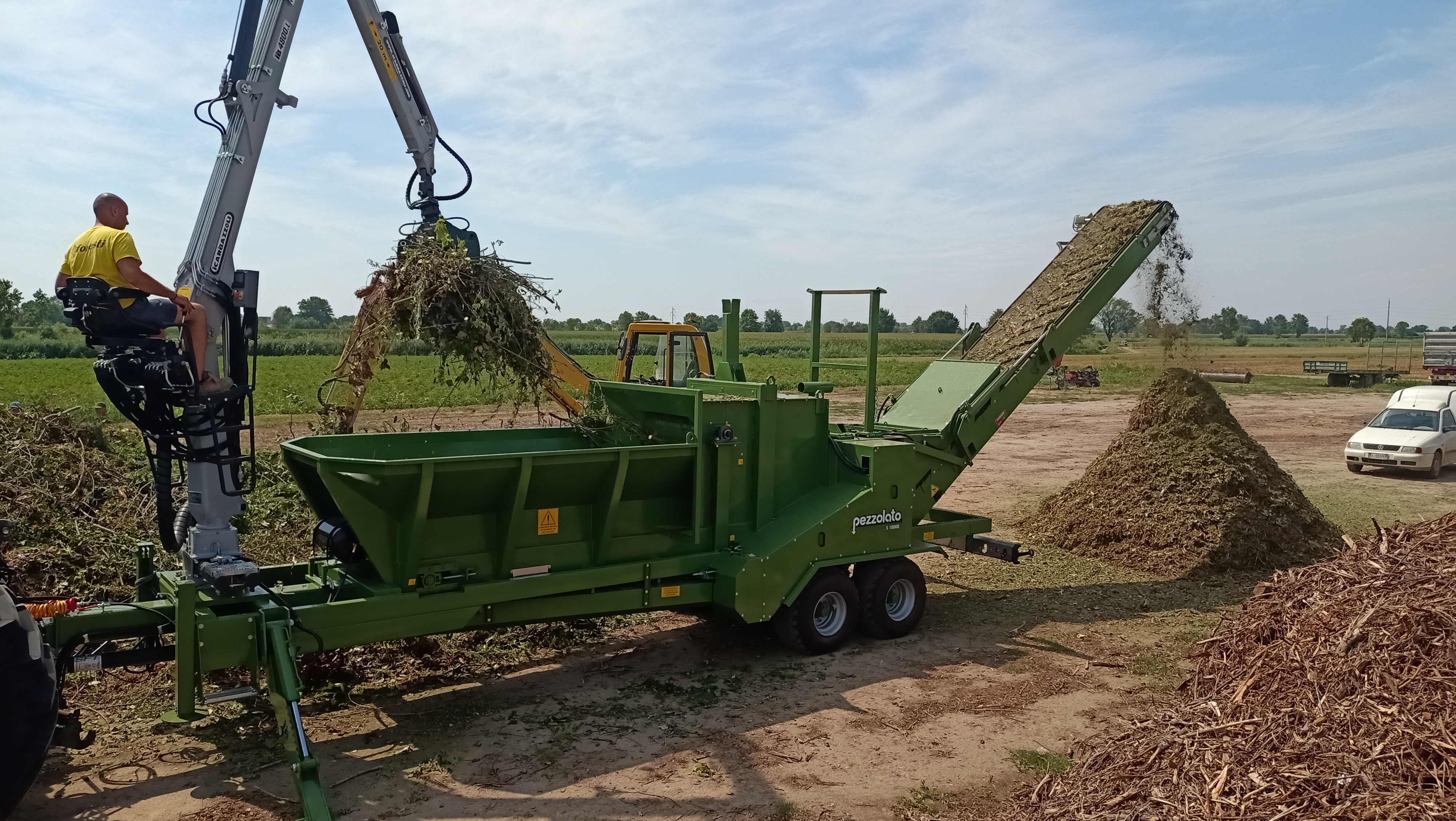

Great dimension machines, studied for the disposal of the organic waste (for compost production) and of the wood scraps (for biomass production).
They can be driven by the tractor’s PTO or by an autonomous diesel or electric motor.
Their capacious hopper and their high performance confirm these machines as ideal to operate in municipal ecologic areas, for third parties and for professional compost producers.

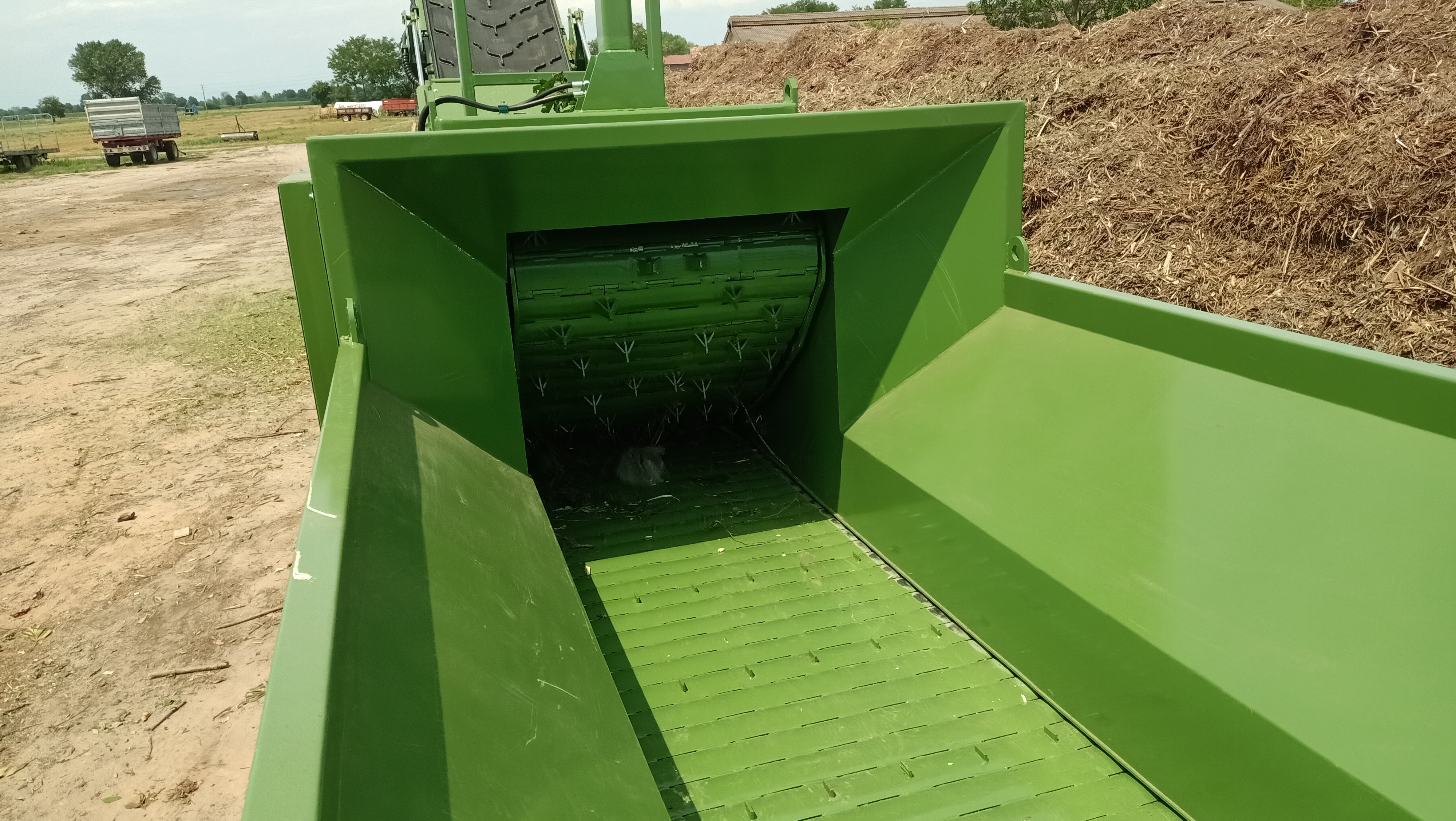

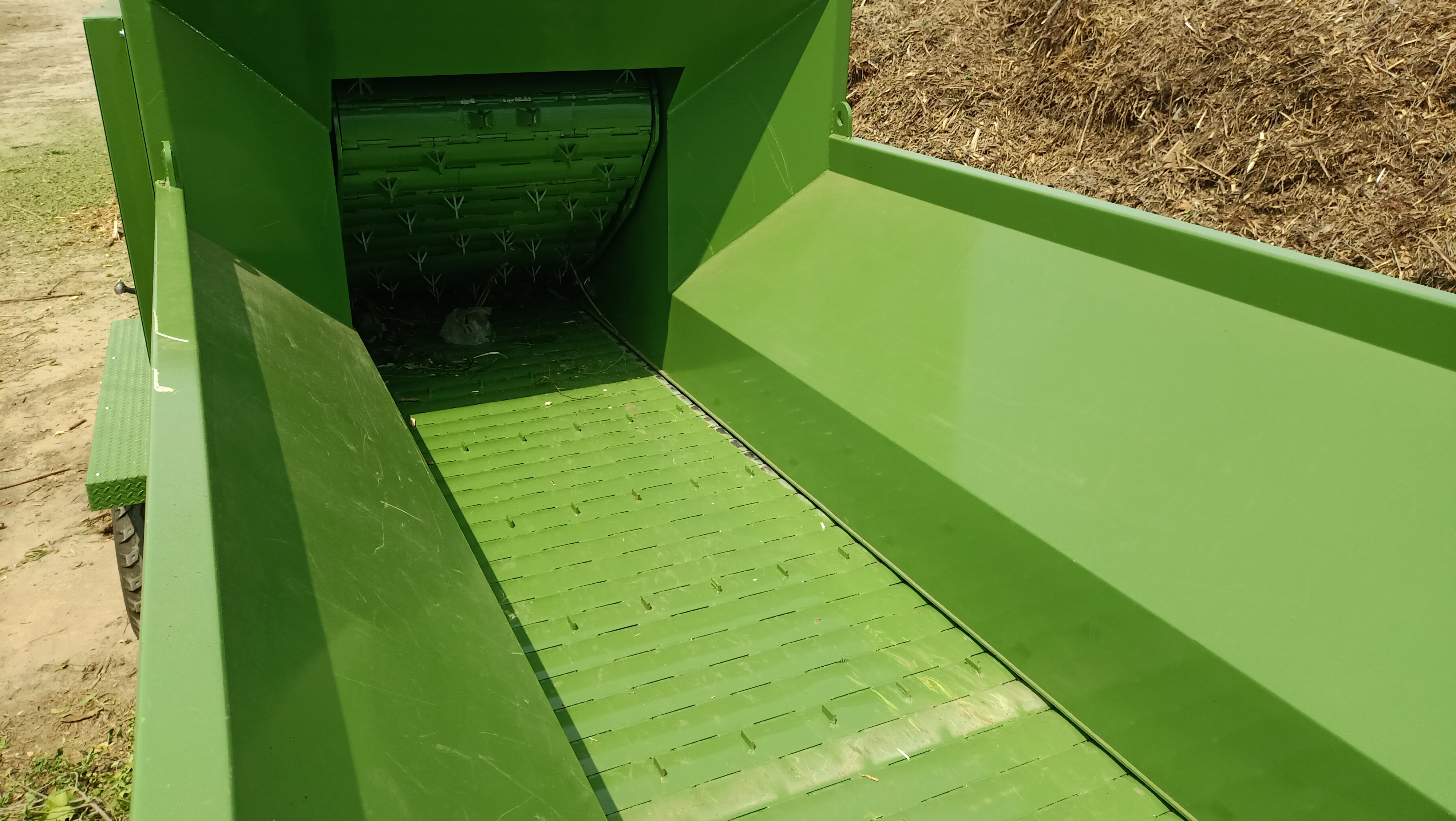

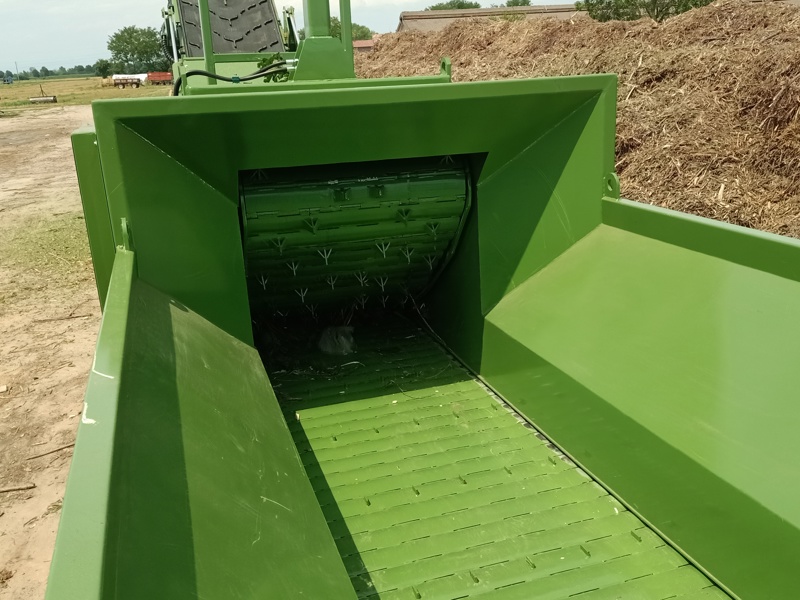

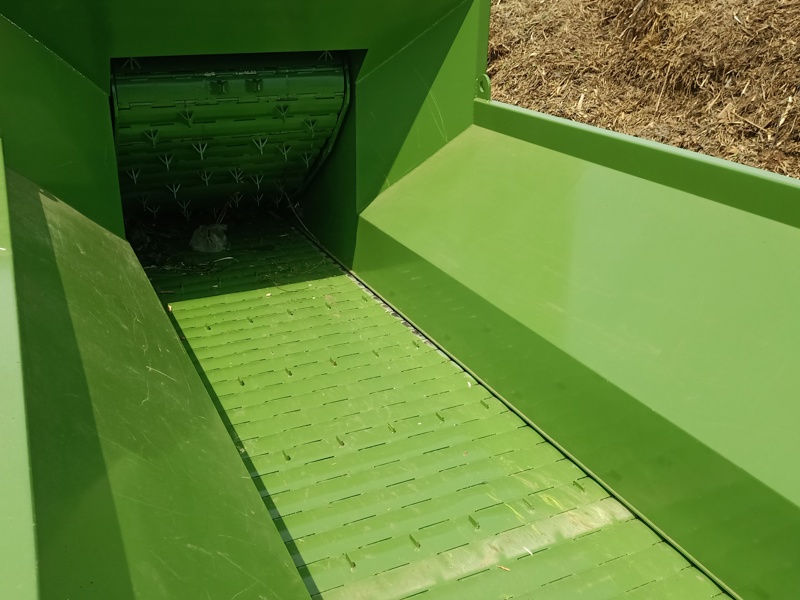

A conveyor belt with closed chains, placed at the end of the hopper, together with a toothed roller, conveys and presses the material towards the action of the hammers.
Version “10000” allows the assemblage of a floating inclined chain (instead of the toothed roller) in order to facilitate the transport of the material to be shredded.
These machines have a special shredding mechanism, including a rotor, which, operating from the top down, brings the material against a fixed plate, assuring a fine and uniform fiberisation
of the material.

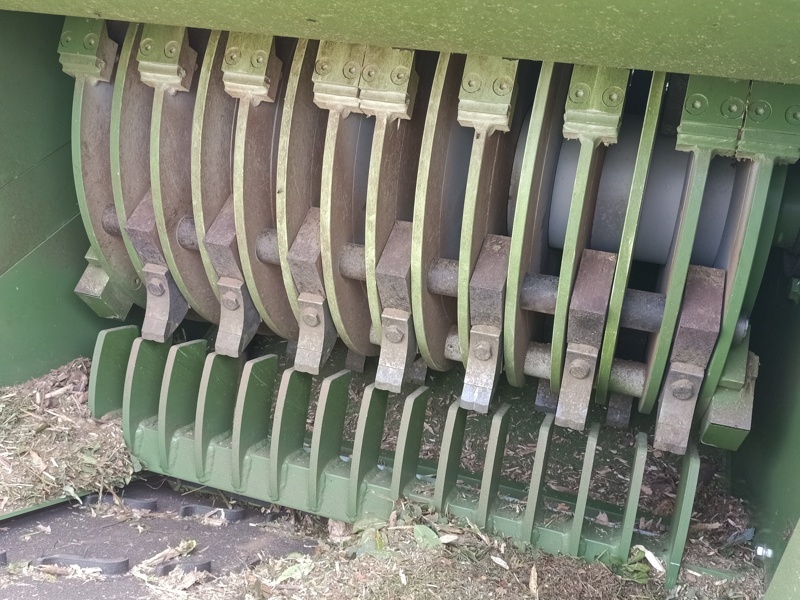

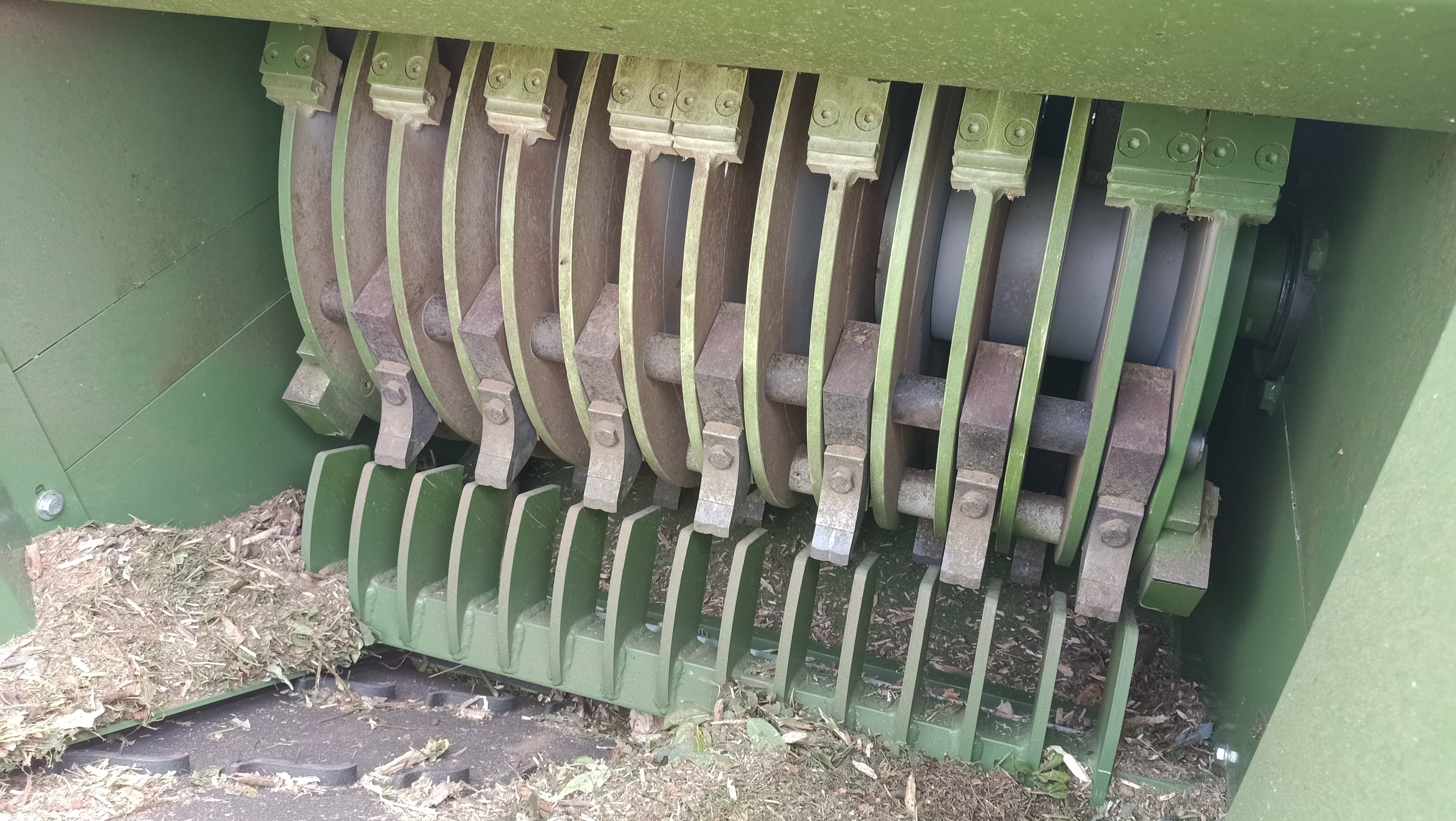

The rotor, composed by many discs positioned side by side, minimizes the risk of rupture in case un-processable material is accidentally introduced in the machine.
According to the usage purposes, different types of hammers can be mounted (standard or Widia reinforced).
An electronic device adjusts the feeding of the material to be shredded, according to the available power.

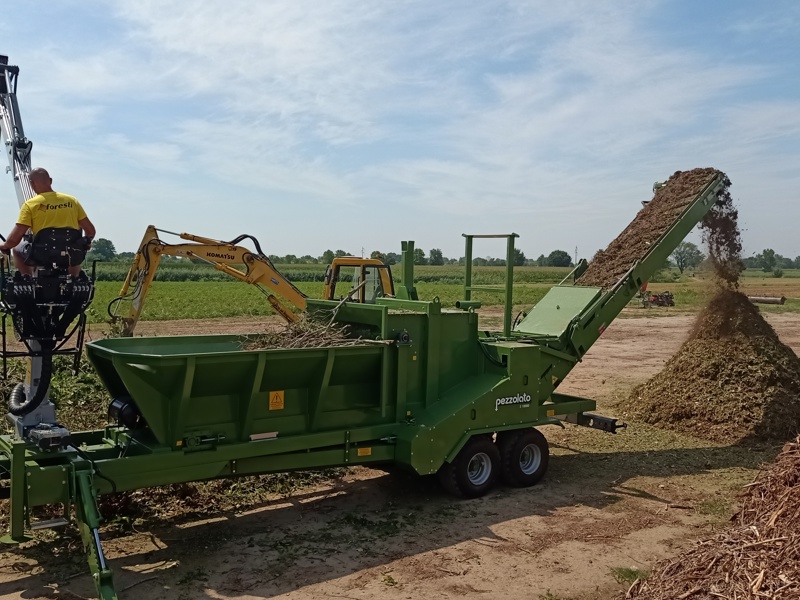

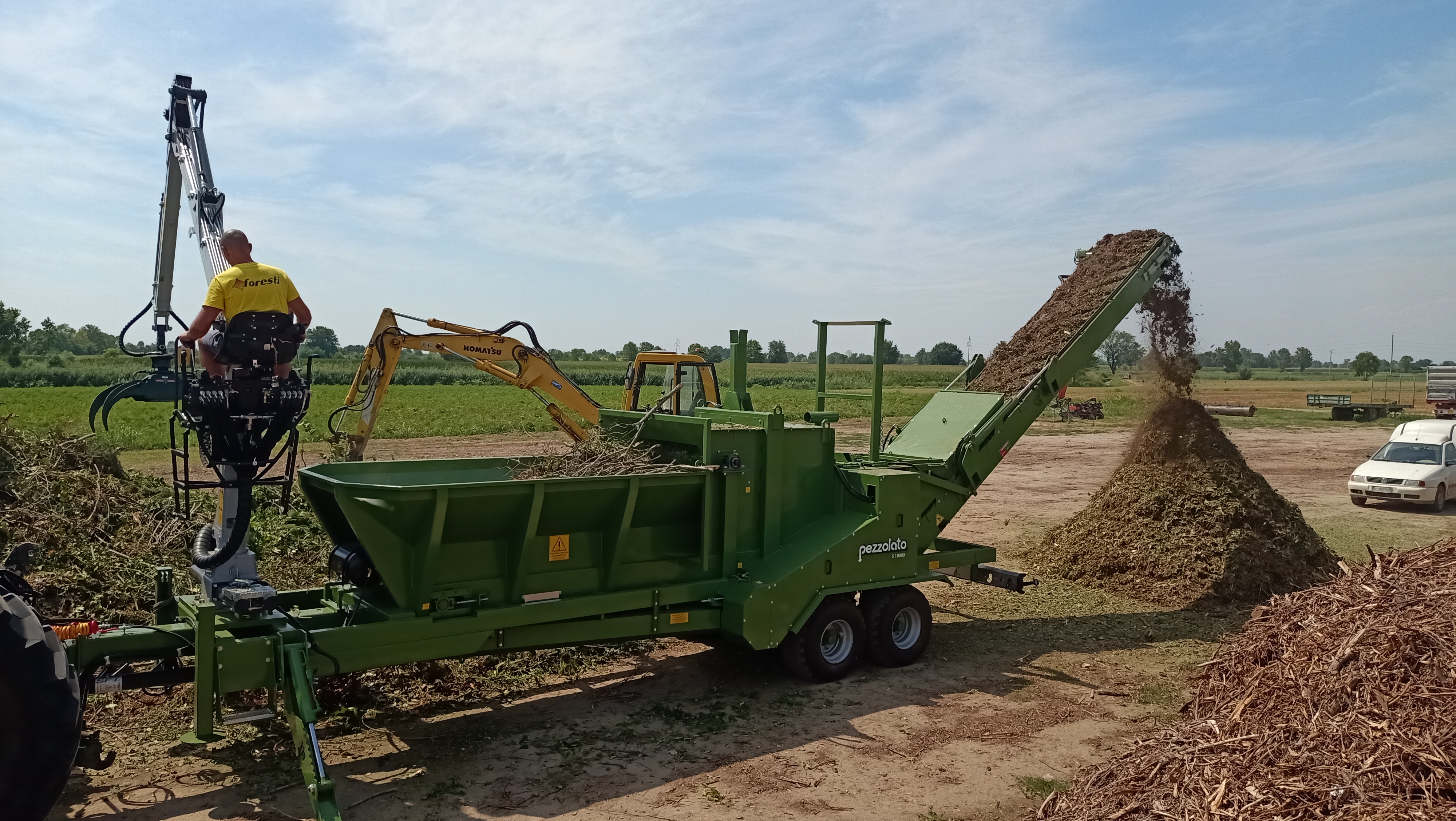

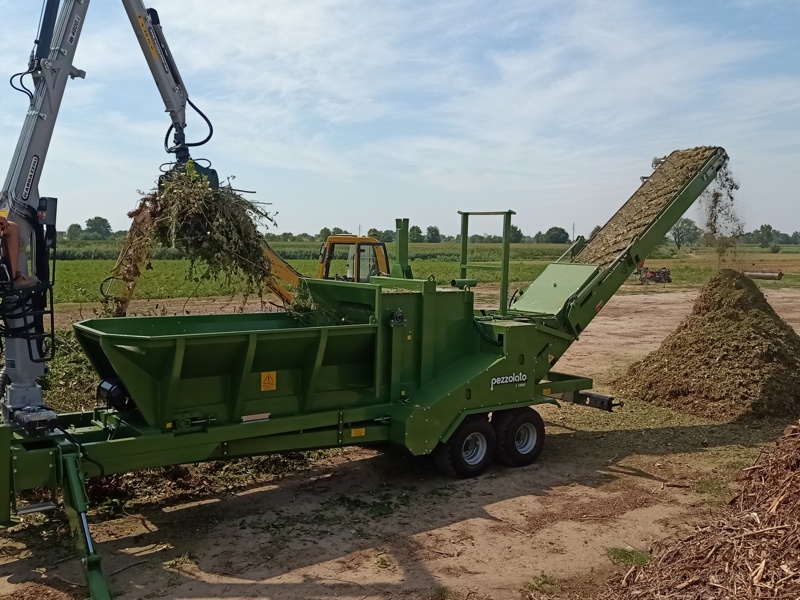

A rubber discharging conveyor or a deflector for the discharge to the ground are included in the standard fitting of this version.
Max Chopping Chamber Diameter 530 mm / 20.87''
Maximum inlet passage 630 x 200 mm / 24.80 x 7.87''
Electric/Self-Propelled/PTO
