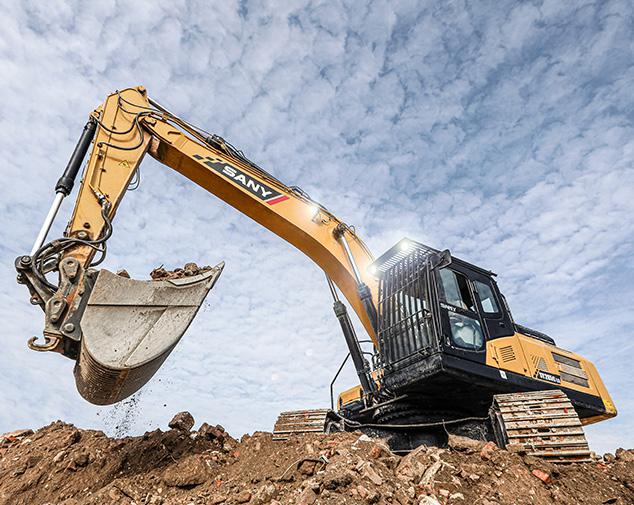

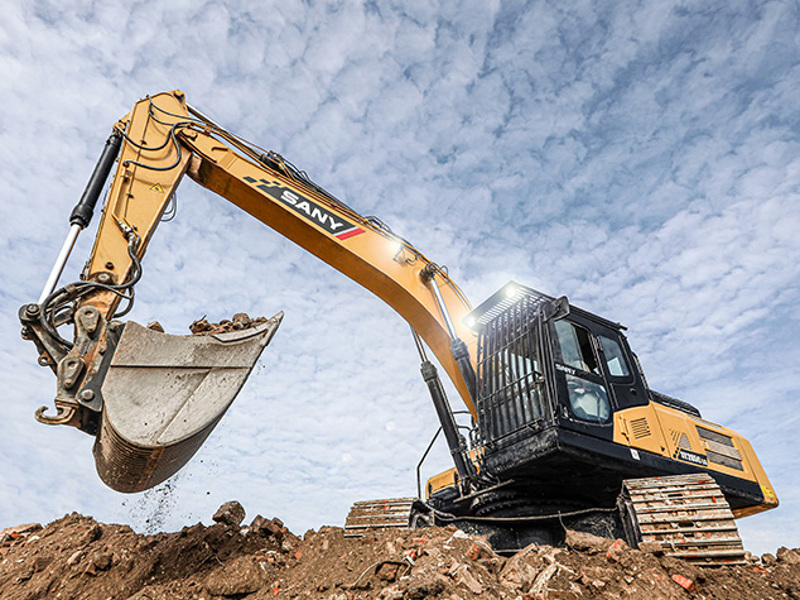

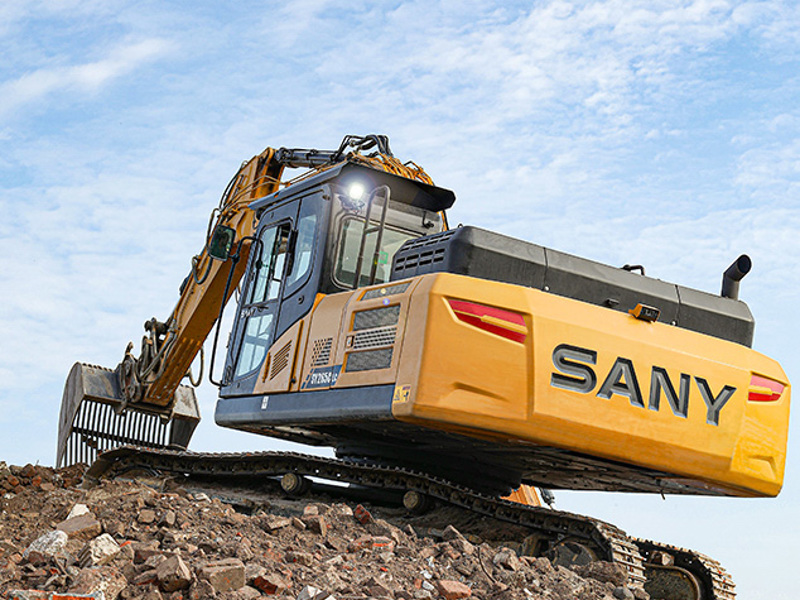

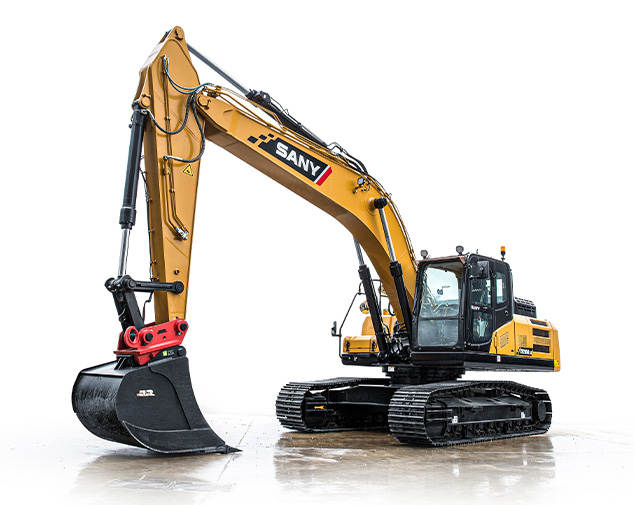

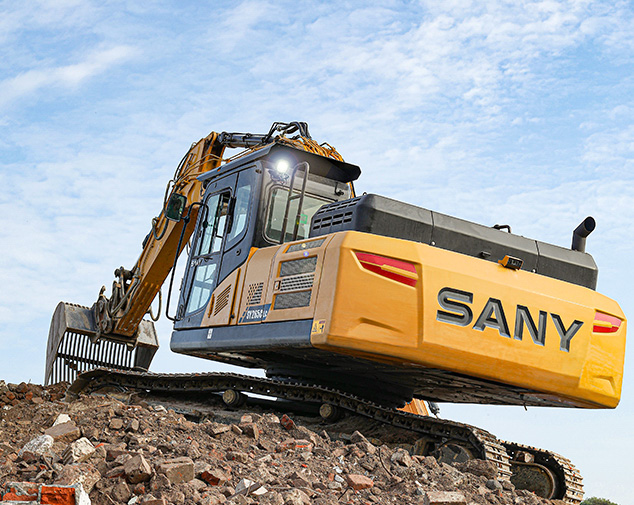

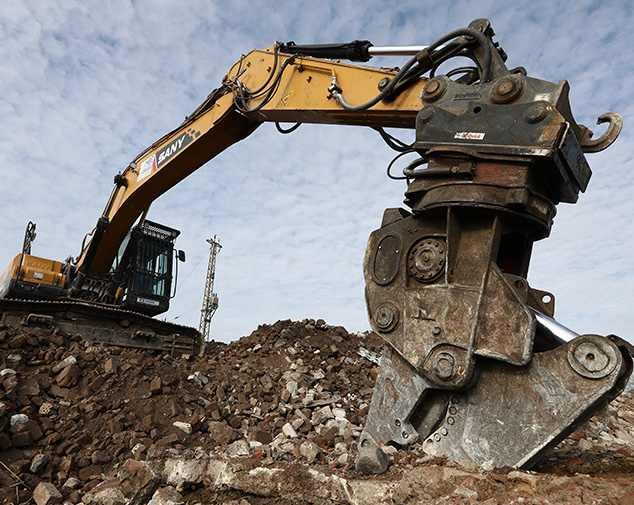

SANY SY265C

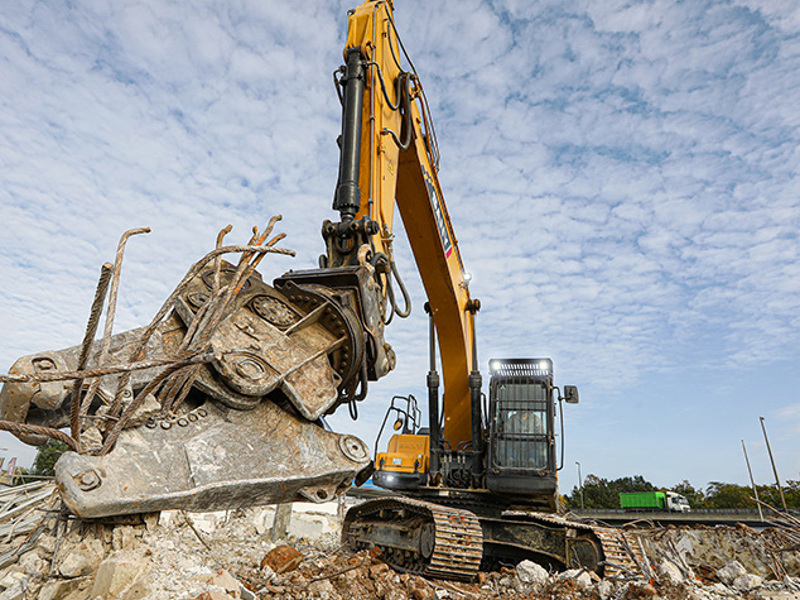

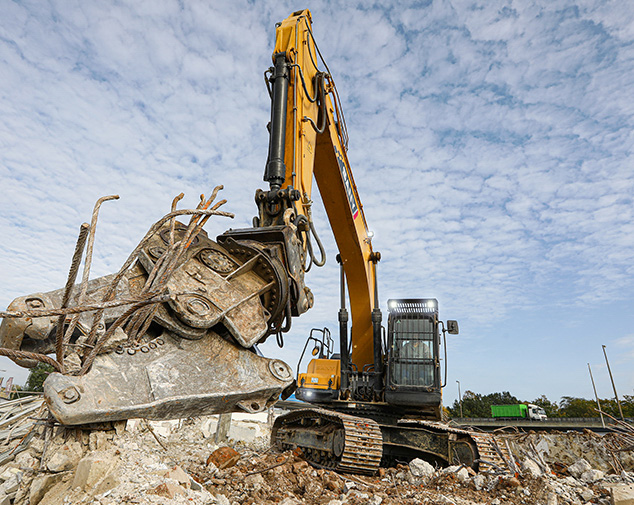

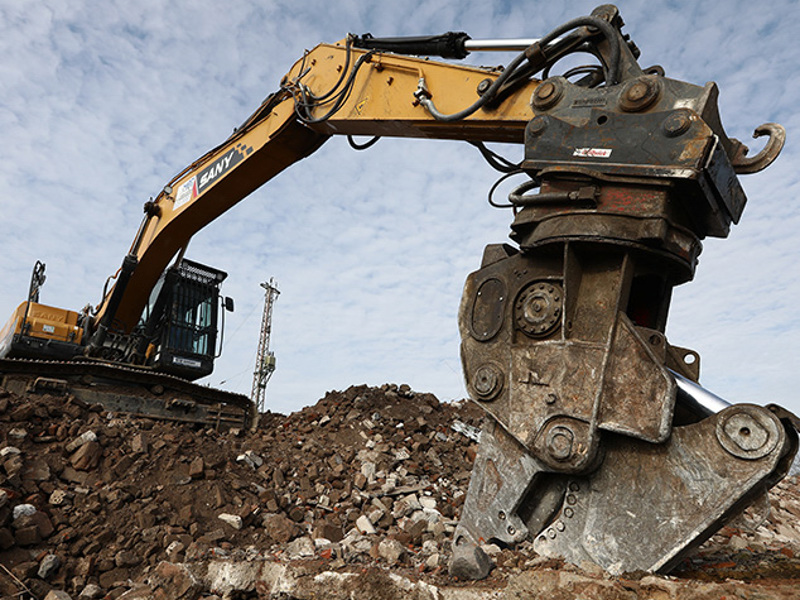

The SY265C excavator brings new meaning to the term ‘flexibility“. It is ideal for carrying out a wide range of tasks whether in road construction, materials handling or demolition work. Its drive and hydraulics leave nothing to be desired and combine power, reliability and precision for impressive productivity. Just as you would expect from an excavator within this category.

  • Stage V CUMMINS engine and finely tuned Kawasaki hydraulic system
  • Comfortable ROPS/FOPS certified operators cab
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The SANY SY265C is multifaceted when it comes to cost-effectiveness. Its sensationally low fuel consumption together with the sophisticated maintenance concept is the key to impressively low operating costs.

  • Heavy-duty undercarriage and solid boom provide an exemplary level of stability
  • Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
  • 100% steel bodywork for maximum protection and reduced cost of ownership

The SY265C provides optimal jobsite safety thanks to its combination of safety features.

  • ROPS/FOPS certified cab for safe operation
  • Rear and side view camera for panoramic visibility
  • Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
  • LED work lights for maximum visibility in low light conditions

The SY265C provides the kind of comfort that operators appreciate!

  • Ergonomic and fully adjustable, heated operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • Radio, speaker and USB port
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Transport length = 10,290 mm
  • Transport width = 3,290 mm
  • Transport height = 3,225 mm
  • Upper structure carriage = 3,045 mm
  • Height over cabin/ROPS = 3,040 mm
  • Height of Boom – transport = 3,365 mm
  • Overall length of crawler = 4,636 mm
  • Track gauge = 2,590 mm
  • Track height = 945 mm
  • Track pads width = Standard 700 mm. Optional 600 mm or 800 mm
  • Minimum ground clearance = 470 mm
  • Counterweight clearance = 1,045 mm
  • Engine cover height = 2,640 mm
  • Tail swing radius = 3,105 mm
  • Centre distance of tumblers = 3,833 mm
  • Ground pressure = 39.3 KPa

  • Operating weight = 27,000 kg

  • Model = Cummins QSB 6.7 – 6 cylinder
  • Rated power = 145 kw
  • Torque = 1472 Nm
  • Displacement = 6.7 l
  • Exhaust emissions = Stage V
  • Batteries = 24 v

  • Oil flow = 2x 260 l/min

  • Implement circuit = 34.3 MPa
  • Power boost = 37.3 MPa
  • Swing circuit = 29 MPa
  • Travel circuit = 34.3 MPa
  • Pilot pressure = 3.9 MPa

  • Fuel tank = 465 l
  • Engine coolant = 40 l
  • Engine oil = 27 l
  • Drive (per side) = 7.8 l
  • Hydraulic oil tank = 275 l
  • AdBlue = 38 l

  • Swing speed = 10.6 rpm
  • Travel speed (Low/High) = 3.7/5.5 km/h
  • travel force = 227 kN
  • Gradeability = 70%*(35°)
  • Bucket digging force ISO = 187 kN
  • Arm digging force ISO = 130 kN
  • Boom length = 5,900 mm
  • Arm length = 2,950 mm
  • Bottom rollers = 9
  • Top rollers = 2

  • digging reach = 10,225 mm
  • digging depth = 6,705 mm
  • digging Height = 9,750 mm
  • dumping height = 6,715 mm
  • vertical digging depth = 5,675 mm
  • Overall height over arm by Min . swing radius = 8,020 mm
  • swing radius = 3,880 mm
