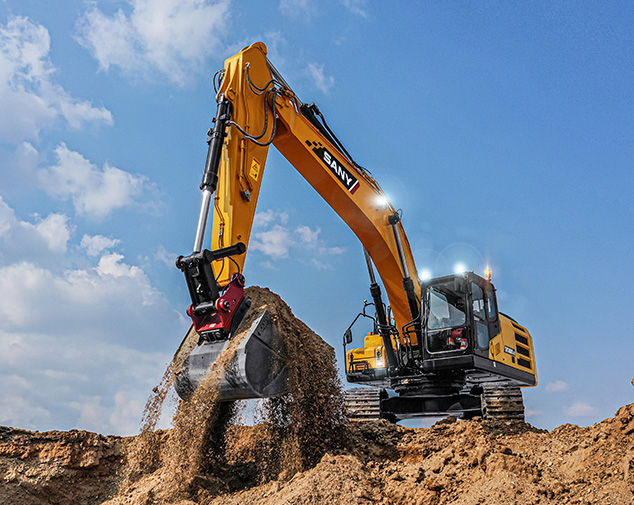

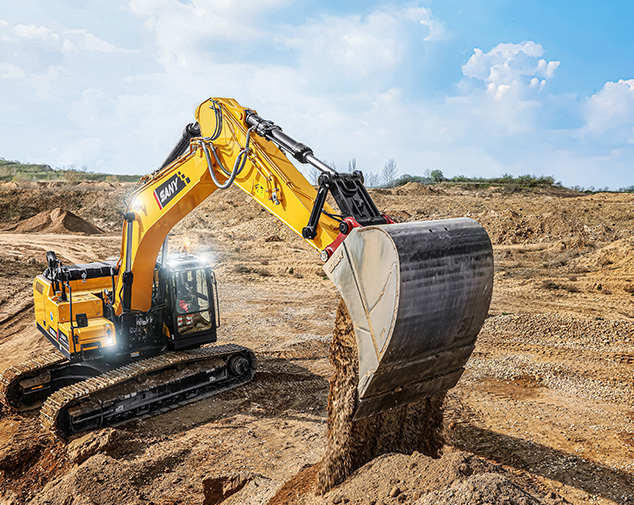

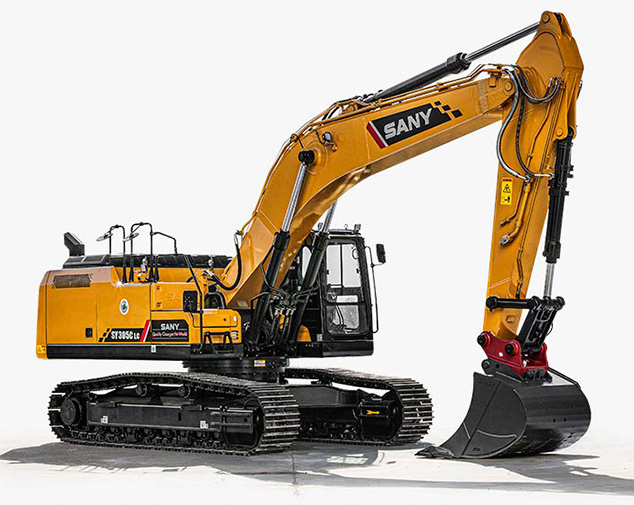

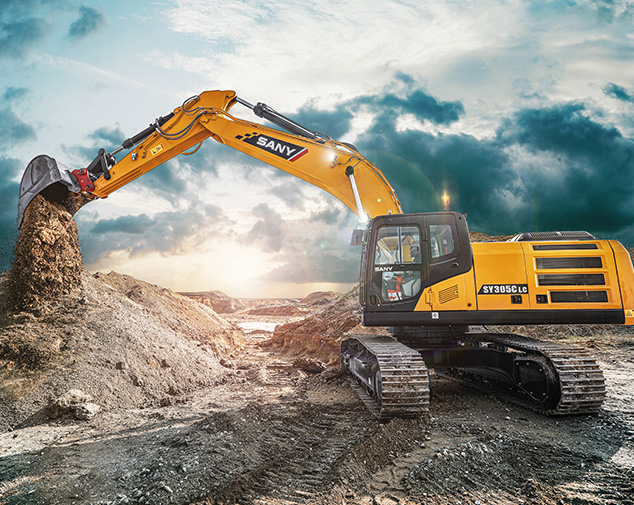

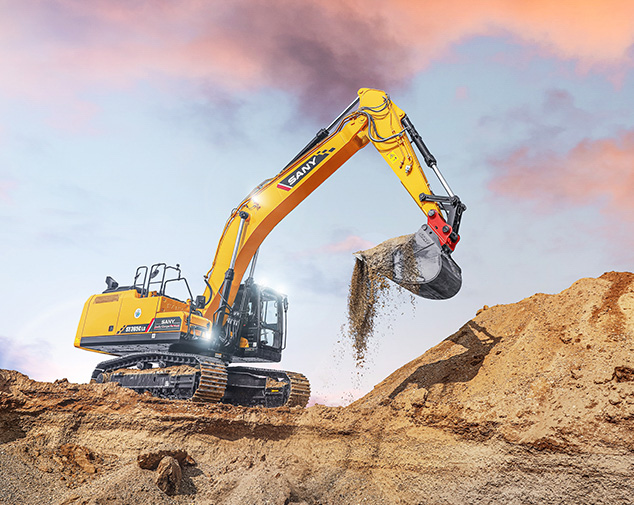

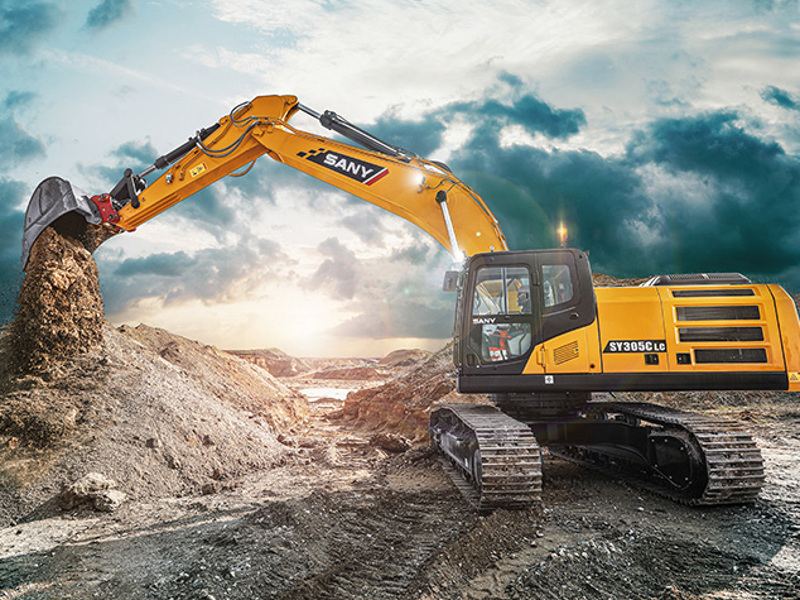

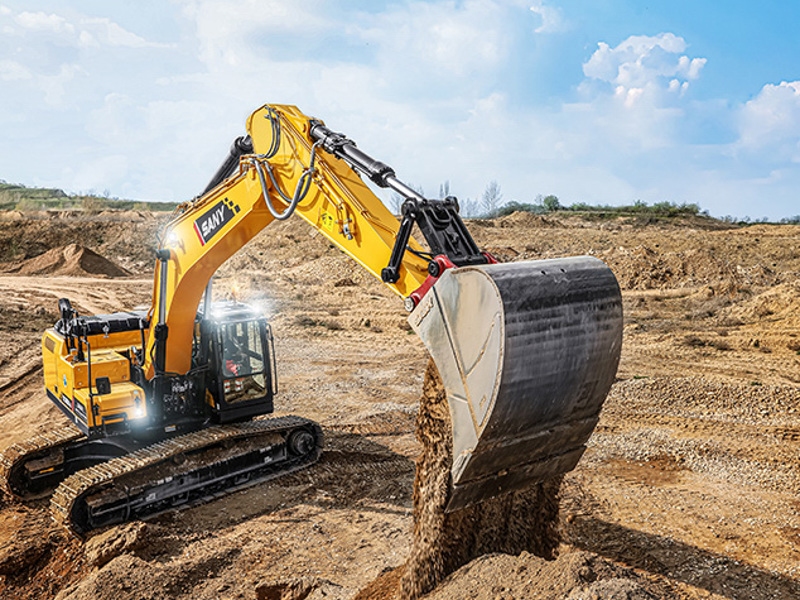

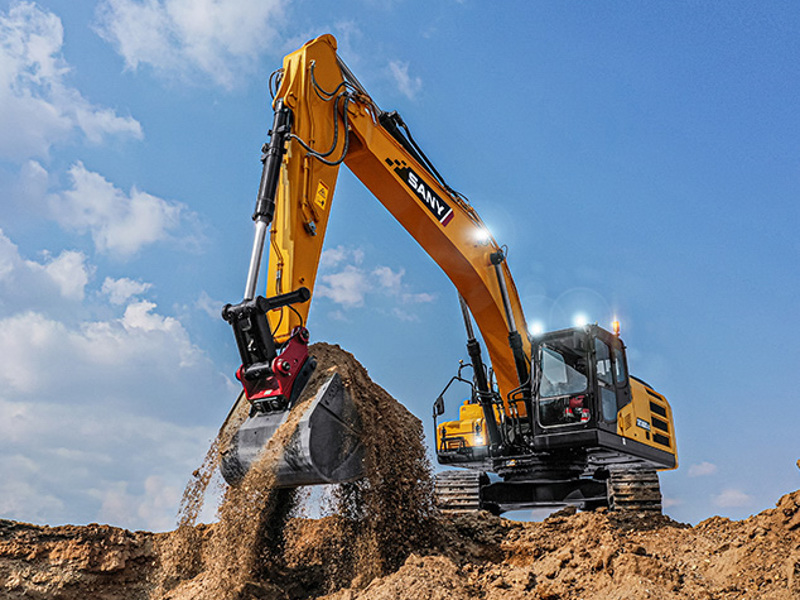

SANY SY305C

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SY305C works powerfully wherever maximum performance is required for excavation work and in civil engineering. The machine‘s high-quality technology and robust components form the basis for reliable and quick operation.

  • Powerful Stage V CUMMINS engine and efficient Kawasaki hydraulic system
  • Comfortable operators cab with optimal visibility
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

With its extensive equipment included as standard, the SY305C offers an impressive price-performance ratio and remarkable productivity.

  • Heavy-duty undercarriage and solid boom provide an exemplary level of stability
  • Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

The SY305C is fully equipped for precise, safe working on the job site.

  • ROPS/FOPS certified cab for safe operation
  • Rear and side view camera for panoramic visibility
  • Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
  • LED work lights for maximum visibility in low light conditions

Operators of the SY305C can look forward to maximum comfort and easy, intuitive operation.

  • Ergonomic and fully adjustable, heated operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • Radio, speaker and USB port
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Transport length = 10,667 mm
  • Transport width = 3,190 mm
  • Transport height = 3,470 mm
  • Upper structure carriage(width) = 2,986 mm
  • Height over cabin/ROPS = 3,280 mm
  • Height of boom – transport = 3,470 mm
  • Overall length of crawler = 4,840 mm
  • Track gauge = 2,590 mm
  • Track height = 1,025 mm
  • Track pads width = Standard 700mm. Optional 600/800 mm
  • Minimum ground clearance = 550 mm
  • Tail swing radius = 2,590 mm
  • Centre distance of tumblers = 3,916 mm
  • Ground pressure = 60 Kp
  • Boom length = 6,150 mm
  • Arm length = 3,200 mm
  • Bottom rollers = 8
  • Top rollers = 2

  • Operating weight = 32,265 kg

  • Manufacturer = Cummins
  • Model = QSL9-C280 6 Cylinder
  • Rated power = 209 kW
  • torque = 1472 Nm
  • Displacement = 6.7 l
  • Exhaust emissions = Stage V
  • Batteries = 24 v

  • oil flow l/min = 2 x 280 l/min

  • Implement circuit = 34.3 MPa
  • Power boost = 37.3 MPa
  • Swing circuit = 27.5 MPa
  • Travel circuit = 34.3 MPa
  • Pilot pressure = 3.9 MPa

  • Fuel tank = 430 l
  • Engine coolant = 36 l
  • Engine oil = 21 l
  • Drive (per side) = 10.5 l
  • Hydraulic oil tank = 300 l
  • AdBlue = 85 l

  • Swing speed = 9 rpm
  • Travel speed (Low/High) = 3.4/5.2 km/h
  • travel force = 245 kN
  • Gradeability = 70%*(35°)
  • Bucket digging force ISO = 204 kN
  • Arm digging force ISO = 153 kN

  • digging reach = 10,870 mm
  • digging depth = 6,815 mm
  • digging height = 10,495 mm
  • dumping height = 7,359 mm
  • Overall height over arm by Min .swing radius = 8,405 mm
  • swing radius = 4000mm
