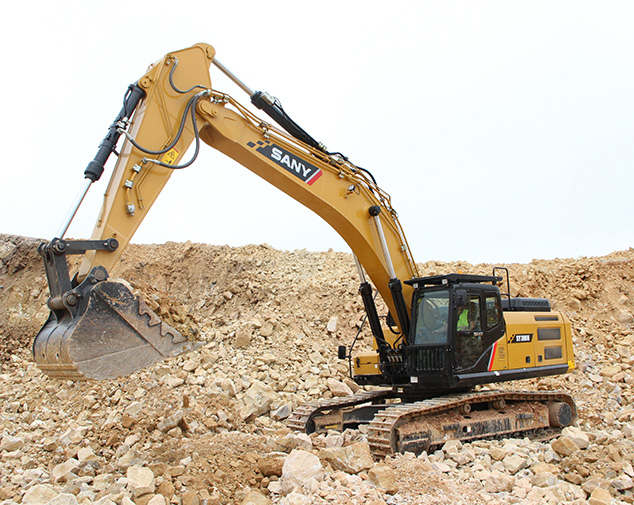

SANY SY390H

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SY390H works powerfully wherever maximum performance is required for excavation work and in civil engineering. The machine‘s high-quality technology and robust components form the basis for reliable and quick operation.

  • Powerful Stage V CUMMINS engine and efficient Kawasaki hydraulic system
  • Comfortable operators cab with optimal visibility
  • 5 year warranty for complete peace of mind

A demolition specification option (SY390H-XD) is also available. See Specification below.

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

Whether its in civil engineering, demolition work or extraction – the SANY SY390H stands out as a sturdy all-rounder for heavy-duty applications in terms of performance, quality and robustness.

  • Heavy-duty undercarriage and solid boom provide an exemplary level of stability
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
  • Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership

The SY390H includes a combination of safety features that work together to minimise risks to those people in and around the machine.

  • ROPS/FOPS certified cab for safe operation
  • Rear and side view camera for panoramic visibility
  • Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
  • LED work lights for maximum visibility in low light conditions

The operators cab of the SY390H has been designed down to enable comfortable,  safe, fatigue-free operation

  • Ergonomic and fully adjustable, heated operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • Radio, speaker and USB port
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 11,430 mm
  • Overall width = 3,190 mm
  • Overall width of super structure = 3,105 mm
  • Overall height above cab = 3,490 mm
  • Overall height of boom = 3,780 mm
  • Rear length = 3,460 mm
  • Track width = 2,590 mm
  • Undercarriage length = 5,115 mm
  • Track link width = 600 mm
  • Minimum ground clearance = 570 mm
  • Tail swing radius = 3,550 mm
  • Distance (centre) between crawler wheel and guide wheel = 4,140 mm
  • Boom length = 6,500 mm
  • Bucket arm length = 3,200 mm
  • Bucket capacity = 1.9 m3

  • horizontal reach on the ground = 10,830 mm
  • vertical reach = 10,120 mm
  • dumping height = 7,490 mm
  • slewing radius = 4,180 mm
  • excavation depth = 7,125 mm
  • height at min. slewing radius = 8,830 mm

  • Model = CUMMINS QSL9 (Stage Ⅴ)
  • torque = 1526/1400 Nm/rpm
  • Displacement = 8,900 ccm

  • Main pumps = 2x variable-piston-pump with electronic positive control
  • Maximum oil flow = 2 x 352 l/min
  • Travel drive = Variable displacement axial piston motor
  • Slewing gear = Axial piston motor

  • Boom circuit = 343 bar
  • Slewing circuit = 310 bar
  • Drive circuit = 343 bar
  • Pilot control circuit = 39 bar

  • Slewing speed = 8.9 rpm
  • Slewing torque = 133 kNm
  • ground speeds = 5.4 / 3.2 km/h
  • traction force = 320 kN
  • Climbing ability = 70%*(35°)
  • ISO bucket breakaway force = 235 kN
  • ISO arm tear-out force = 184 kN

  • Fuel tank = 600 l
  • Max Fuel tank = 2 x 352 l
  • Engine coolant = 44.5 l
  • Engine oil = 36 l
  • Travel drive (per side) = 10 l
  • Hydraulic oil tank = 415 l

  • Heavy duty belly plates = Standard equipment
  • Bucket ram guard = Standard equipment
  • Stick ram guard = Standard equipment
  • Boom hoist guards = Standard equipment
  • Bolt on side impact protection (3 piece) = Standard equipment
  • 8 pre-settings for hydraulic attachments = Standard equipment
  • FOG guard bolt on cab protection (Level 2) = Standard equipment
