SANY SY500H

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SY500H has been designed for maximum productivity under continuous stress. The machine’s sturdy design and special chassis result in outstanding stability and it doesn’t just impress with its performance. When it comes to equipment, this machine is in the top class. Everything you would expect from an excavator in the 50–tonne class is included on-board as standard.

  • Powerful Stage V CUMMINS engine
  • Comfortable ROPS/FOPS certified operators cab
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

With its even balance of power and precision, the SANY SY500H is just the right workhorse for cost-oriented use on the job site.

  • Heavy-duty undercarriage and solid boom provide an exemplary level of stability
  • Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

The SY500H includes a combination of safety features that work together to minimise risks to those people in and around the machine.

  • ROPS/FOPS certified cab for safe operation
  • Rear and side view camera for panoramic visibility
  • Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety
  • LED work lights for maximum visibility in low light conditions

The ergonomically designed operators cab of the SY500H ensures both comfort, convenience and maximum productivity.

  • Ergonomic and fully adjustable, heated operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • Radio, speaker and USB port
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Transport Length = 12,100 mm
  • Transport width = 3,700 mm
  • Upper structure carriage = 3,300 mm
  • Height over cabin = 3,480 mm
  • Height of Boom – transport = 3,600 mm
  • Overall length of crawler = 5,460 mm
  • Tail length = 3,740 mm
  • Track gauge = 2,740 mm
  • Track height = 1,220 mm
  • Track pads width = 600 mm
  • ground clearance = 560 mm
  • Counterweight clearance = 1 355 mm
  • Engine cover height = 3 160 mm
  • Tail swing radius = 3 740 mm
  • Centre distance of tumblers = 4 410 mm

  • Bucket Breakout Force (ISO) = 260.0 kN
  • Stick (Arm) Digging Force (ISO) = 230.0 kN

  • digging reach = 12,035 mm
  • digging depth = 7,705 mm
  • digging height = 10,930 mm
  • dumping height = 7,650 mm
  • vertical digging depth = 6,280 mm
  • swing radius = 521 mm

  • Operating weight = 53,300 kg

  • Model = Cummins X12
  • Rated power = 298 kW / 2 100 rpm

  • Implement circuit = 350 bar
  • Power boost = 370 bar
  • Swing circuit = 270 bar
  • Travle circuit = 350 bar
  • Pilot pressure = 40 bar

  • Fuel tank = 680 l
  • Engine coolant = 50 l
  • Engine oil = 34 l
  • Drive (per side) = 15 l
  • Adblue = 46 l
  • Hydraulic oil tank = 480 l

Related products

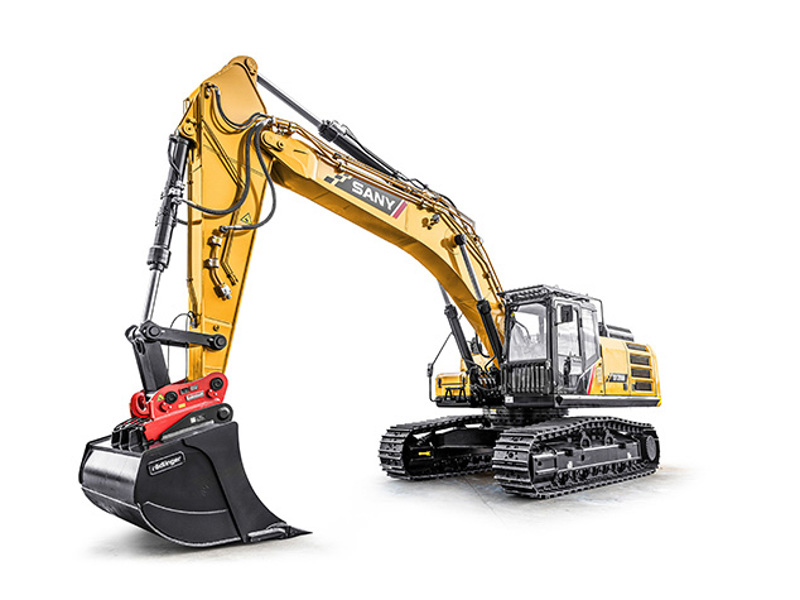

Sany SY390H
