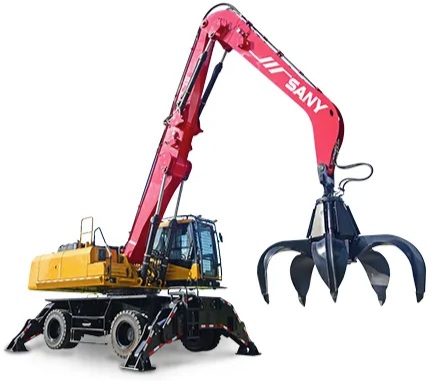

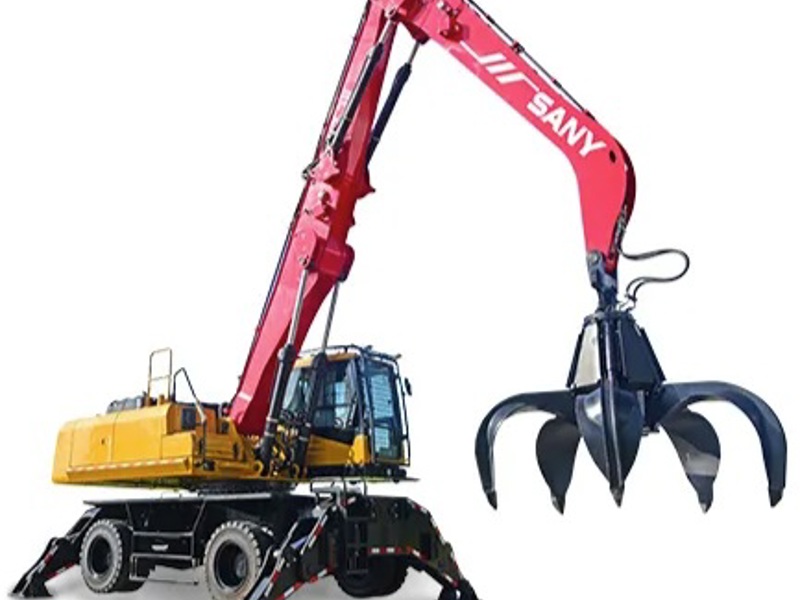

SMHW30G5

INDUSTRY LEADING 5-YEAR WARRANTY

  • High efficiency, low consumption
  • Reinforced undercarriage stability
  • Comprehensive security features

Download SMHW30G5 brochure Enquire now

Benefits & Features

  • Manufacturer: CUMMINS
  • Model: 6.7
  • Engine power: 145kW / 2,000rpm
  • Max. torque: 902Nm
  • Emissions standard: EU Stage V
  • Displacement/number of cylinders: 6.7l / 6l
  • Diesel fuel capacity: 465l
  • AdBlue fluid: 50l
  • Lifting range: 2,600mm
  • Eye level: 5,600mm
  • Max. travel speed: 20km/h
  • Climbing power: 35%
  • Gearbox type: Hydrostatic drive, 0–5 km/h, 0–20 km/h
  • Gearbox model: DANA 360
  • Axles: KESSLER
  • Steering type: Front-wheel steering
  • Tires: 10.00-20 solid rubber
  • Hydraulic pressure: 320 bar
  • Max. oil flow: 2 x 260l
  • Filling quantity of the hyd. system: 230l
  • Arm: 12m / 14m
  • Boom: 7.3m / 8.6m
  • Stick: 5.1m / 5.6m
  • 5 year warranty as standard for complete peace of mind (terms and conditions)

Related Products

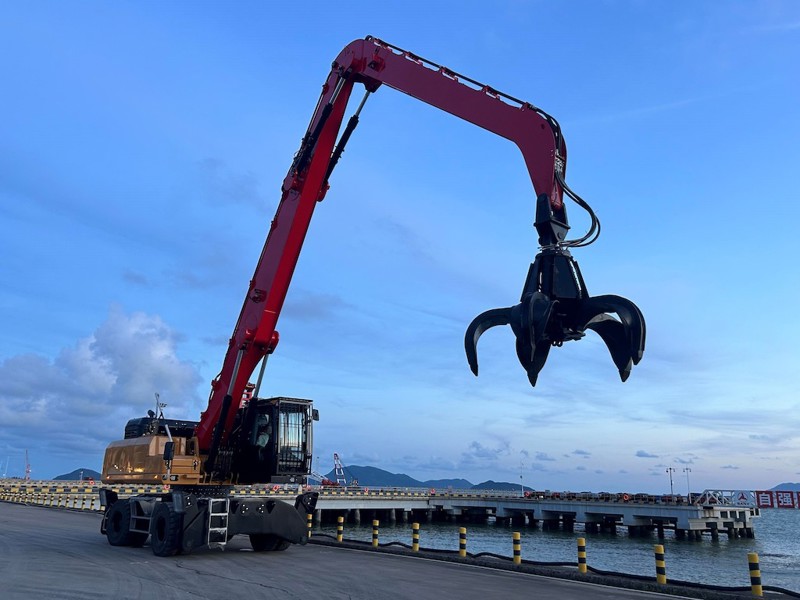

SANY SMH40G5

20km/h (travel speed max.)

38 500 – 40 500kg (overall weight)

15 – 17m (loading equipment)

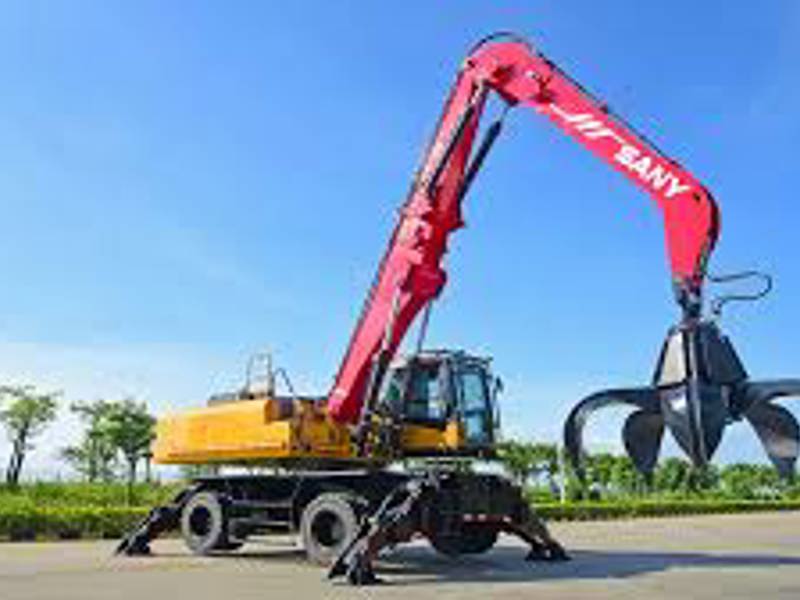

SANY SMHW48G
