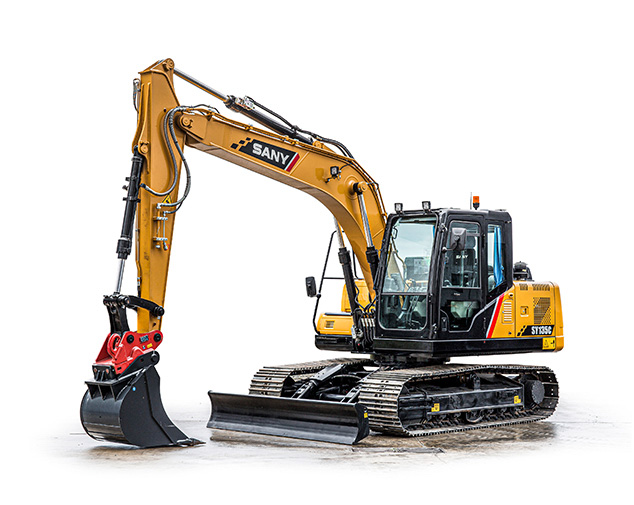

SANY SY135C

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SY135C tackles work extremely efficiently as a compact excavator. High performance and impressive stability is the perfect combination to complete all tasks quickly and reliably on site. Its large working radius is also a plus point, with a maximum horizontal reach of 8,290 mm and maximum excavation depth of 5,500 mm.

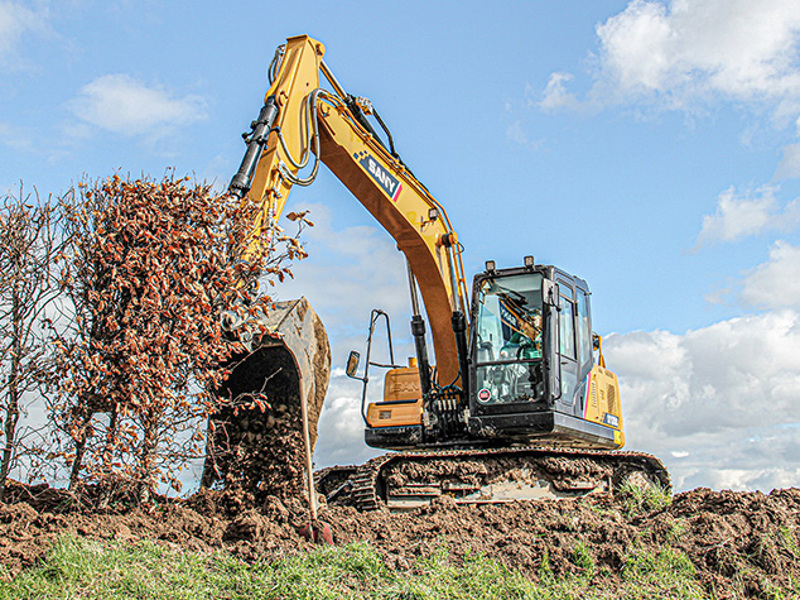

  •  Versatile machine for construction, landscaping, horticulture and demolition
  • Robust, wide heavy-duty undercarriage
  •  5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

More work with less fuel! The SY135C’s powerful diesel engine and sophisticated hydraulics system ensures a strong performance with reduced fuel consumption that results in significant economic benefits.

  • Generous operating radius of maximum horizontal reach – 8,290mm and maximum excavation depth – 5,500mm
  • Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
  • 100% steel bodywork for maximum protection and reduced cost of ownership

Safety features of  the SY135C guarantee maximum safety and minimal risk to operators and people around the machine.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera provides optimal visibility for increased on site safety
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

The SY135C offers a premium class of operator comfort as standard.

  • Air suspension operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 7,500 mm
  • Overall width = 2,590 mm
  • Overall superstructure width = 2,490 mm
  • Overall boom height = 2,815 mm
  • Rear length = 2,205 mm
  • Track width = 1,990 mm
  • Landing gear length = 3,665 mm
  • Landing gear width (dozer blade) = 2,650 mm
  • Blade height = 480 mm
  • Track shoe = 700mm
  • Min. ground clearance = 425 mm
  • Tail swing radius = 2,205 mm
  • Distance between track wheel and guide wheel (centre) = 2,930 mm
  • Boom length = 4,600 mm
  • Arm length = 3000 mm
  • Bucket capacity = 0.6 cubic meters

  • Operating weight = 14,666 kg

  • Max. ground level range = 8,290 mm
  • Max. digging depth = 5,970 mm
  • Max. vertical range = 8,645 mm
  • Max. dumping height = 6,630 mm
  • Minute. radius of gyration = 2,500 mm
  • Max. excavation depth, vertical wall = 4,850 mm

  • Model = Isuzu 4JJ1X
  • Rated power = 78.5 kW
  • Max. torque = 375Nm/1600rpm
  • Shift = 2.999 l

  • Main pump = Adjustable axial piston pump
  • Max. oil flow = 110 l / min
  • Travel drive = Adjustable axial piston pumps
  • Slewing gear = Adjustable axial piston pumps

  • Boom circuit = 343 bar
  • Slewing circuit = 253 bar
  • Drive circuit = 343 bar
  • Pilot control circuit = 39 bar

  • Swing speed = 12 rpm
  • Max. ground speeds = fast 5.3 km/h slow 3.5 km/h
  • Max. traction force = 112 kN
  • Climbing ability = 35°
  • ISO bucket breakaway force = 103 kN
  • ISO arm tear-out force = 67 kN

  • Fuel tank = 245 l
  • Engine coolant = 23.6 l
  • Engine oil = 15 l
  • Travel drive (per side) = 5.5 l
  • Hydraulic oil tank = 175 l
