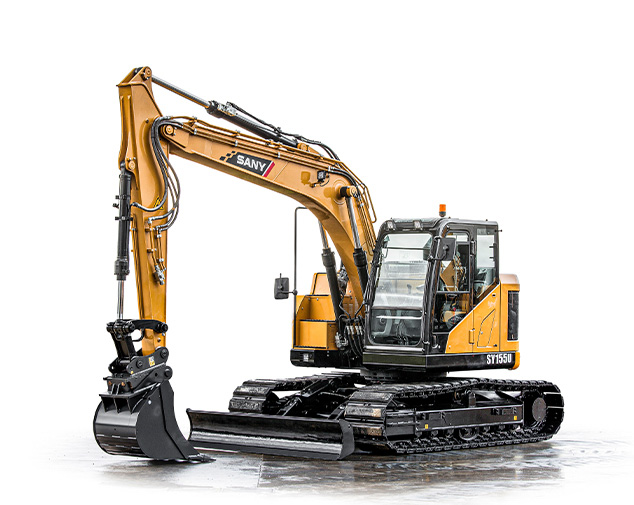

SANY SY155U

INDUSTRY LEADING 5-YEAR WARRANTY

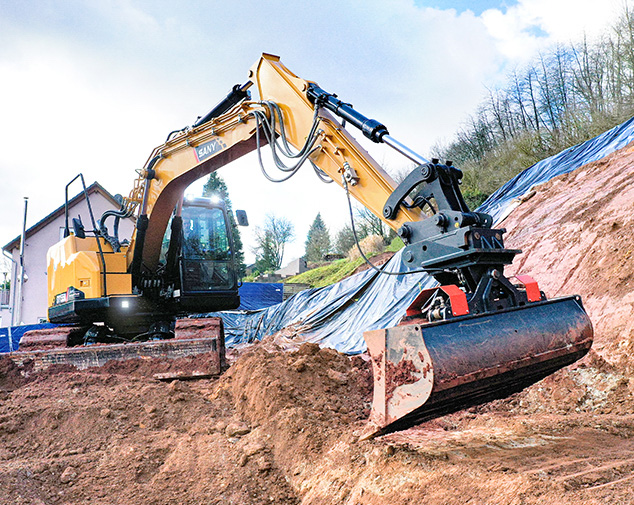

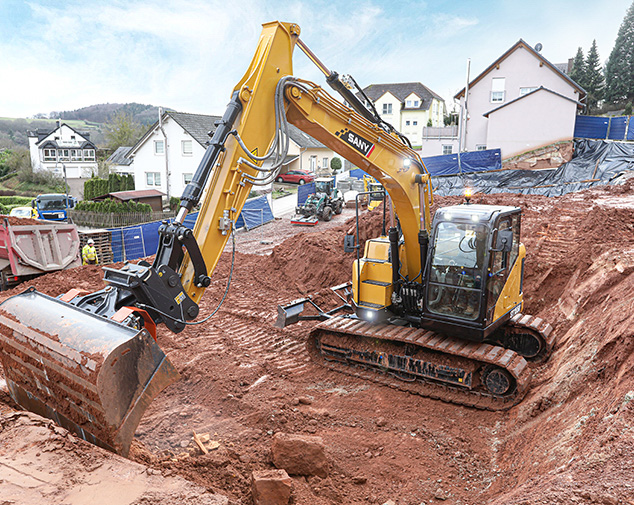

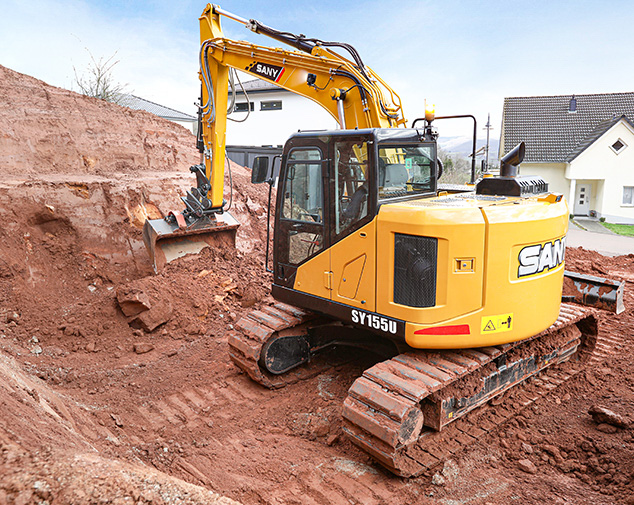

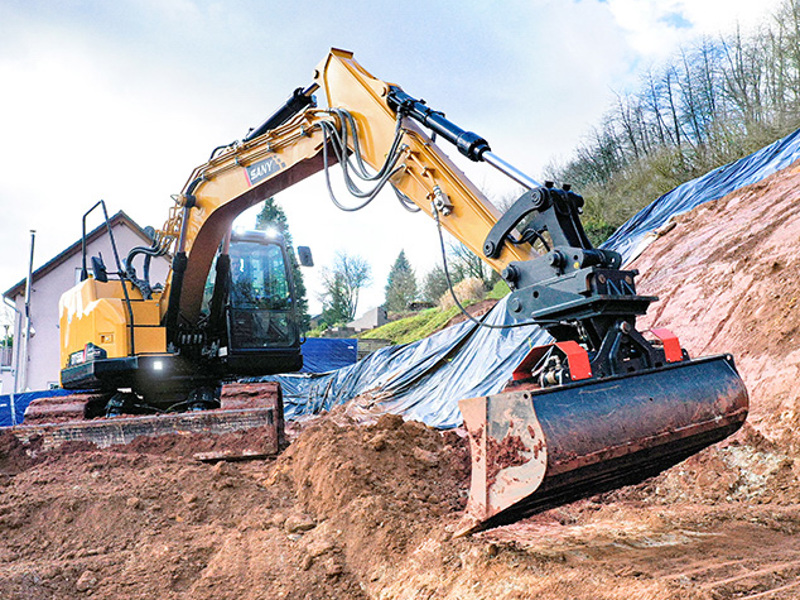

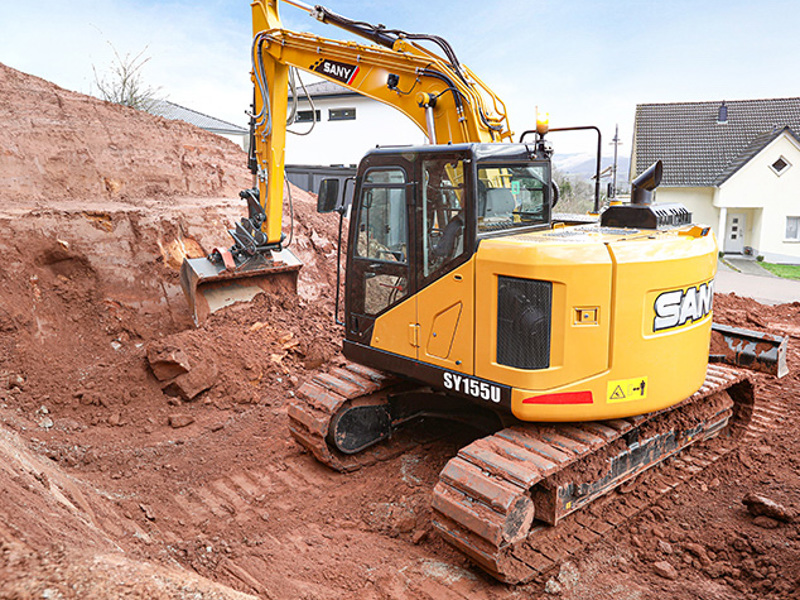

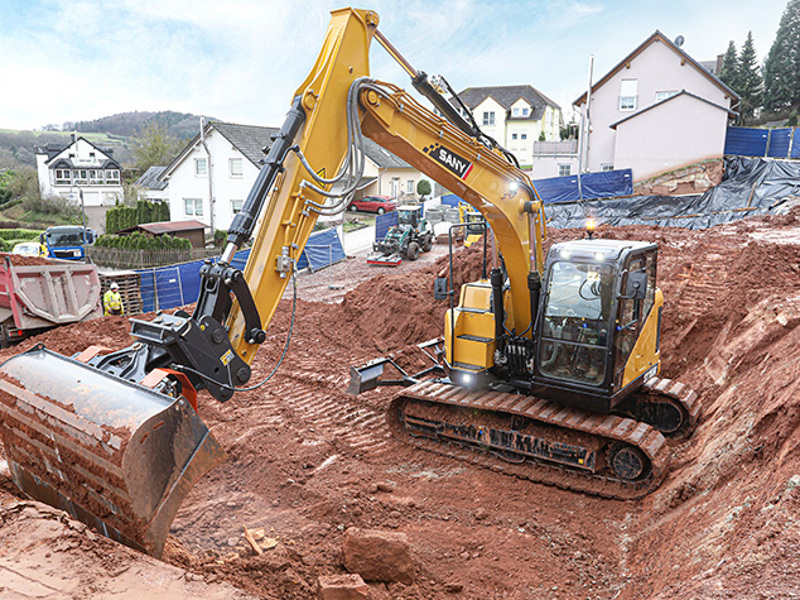

Thanks to its compact dimensions, the SANY SY155U short-tail-swing excavator is ideal for use in tight spaces such as inner-city construction sites. This machine is extremely economical to operate thanks to its very high productivity, exceptional driver comfort and low fuel consumption.

  • Compact, short-tail-swing excavator with Stage V ISUZU engine
  • Outstanding performance with low energy consumption
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The efficiency of the SY155U means outstanding performance with low energy consumption.

  • Powerful short-tail-swing machine with short overhang radius enables working in tight spaces without any reduction in performance
  • Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
  • 100% steel bodywork for maximum protection and reduced cost of ownership

Safety features of the SY155U ensure maximum safety to those in and around the machine.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera provides optimal visibility for increased on site safety
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
  • Dozer blade provides maximum stability and lift performance

Welcome to the comfort zone of the SY155U

  • Air suspension operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category

5-year/5000 hour warranty as standard for complete peace of mind (Terms and conditions apply)

Technical Specification

  • Overall length = 8,015mm
  • Overall width = 2,690 mm
  • Overall width of superstructure = 2,490 mm
  • Overall height = 2,820 mm
  • Rear length = 1,500 mm
  • Track width = 1,990 mm
  • Landing gear length = 3,665 mm
  • Landing gear width (dozer blade) = 2,590 mm
  • Blade height = 480 mm
  • Track link width = 600 mm
  • Min. ground clearance = 425 mm
  • Tail swing radius = 1,500 mm
  • Distance between track wheel and guide wheel (centre) = 2,930 mm
  • Boom length = 4,600 mm
  • Arm length = 3,000 mm
  • Bucket capacity = 0.6 m3

  • Operating weight = 16,170 kg

  • Max. ground level range = 8,338 mm
  • Max. digging depth = 6,020 mm
  • Max. vertical range = 9,218 mm
  • Max. dumping height = 7,200 mm
  • Minute. radius of gyration = 2,086 mm
  • Max. excavation depth, vertical wall = 3,796 mm

  • Model = Isuzu AR-4JJ1XASC
  • Rated power = 78.5 kW
  • Max. torque = 375 Nm/1,800 rpm
  • Shift = 2.9 l

  • Main pump = 2 Adjustable axial piston pumps
  • Maximum oil flow = 2 x 110 l / min
  • Travel drive = 2 Adjustable axial piston pumps
  • Slewing gear = 1 Adjustable axial piston pump

  • Boom circuit = 343 bar
  • Slewing circuit = 253 bar
  • Drive circuit = 348 bar
  • Pilot control circuit = 40 bar

  • Swing speed = 12.5 rpm
  • Max. ground speeds = 5.3 km/h
  • Max. traction force = 124 kN
  • Climbing ability = 35°
  • ISO bucket breakaway force = 103 kN
  • ISO arm tear-out force = 67 kN

  • Fuel tank = 210 l
  • Engine coolant = 23.6 l
  • Engine oil = 15 l
  • Travel drive (per side) = 2.2 l
  • Hydraulic oil tank = 110 l
