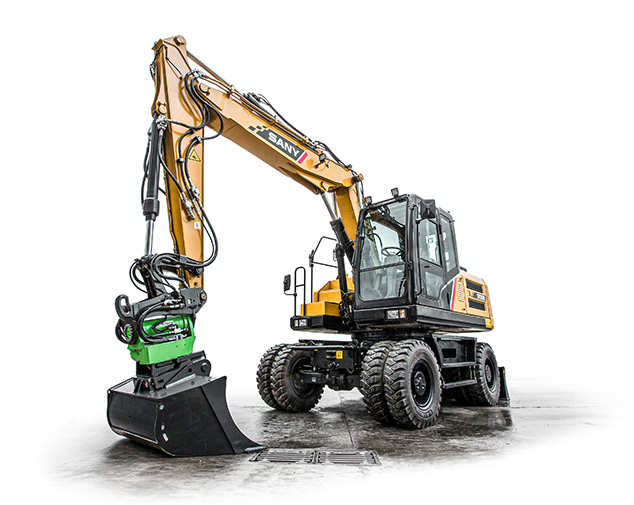

SANY SY155W

INDUSTRY LEADING 5-YEAR WARRANTY

The SY155W demonstrates how strong performance can take to the road reliably and safely. When it comes to mobility, the SANY SY155W is unrivalled, both on the construction site and over short distances. This compact wheeled excavator is an all-rounder boasting exemplary productivity and flexibility, working not only with strength but also precision.

  • Stage V DEUTZ engine and efficient load sending hydraulic system
  • Comfortable ROPS/FOPS certified operators cab
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The efficiency of the SY155W means outstanding performance with low energy consumption.

  • Powerful short-tail-swing machine with short overhang radius enables working in tight spaces without any reduction in performance
  • Stage V DEUTZ engine and efficient, load sensing hydraulics to maximise on fuel economy
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application
  • 100% steel bodywork for maximum protection and reduced cost of ownership

Safety features of the SY155W ensure maximum safety to those in and around the machine.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera provides optimal visibility for increased on site safety
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety
  • Front dozer blade and rear stabilizers provide added stability in a range of applications



Welcome to the comfort zone of the SY155W

  • Heated, air suspension operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Adjustable ventilation, heating and automatic climate control system
  • Integrated cooling box and large amount of storage space
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Ergonomic handrails allow safe access to the maintenance platform
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 8,200 mm
  • Overall width = 2,550 mm
  • Overall upper structure width = 2,550 mm
  • Overall height = 3,200 mm
  • Tail length = 2,030 mm
  • Track gauge = 1,944 mm
  • Undercarriage width (dozer blade) = 2,550 mm
  • Blade height = 515 mm
  • Minimum ground clearance = 360 mm
  • Tail swing radius = 2,030 mm
  • Distance (centre) between crawler wheel and guide wheel = 2,600 mm
  • Boom length = 1930 mm + 3100 mm
  • Bucket arm length = 2500 mm
  • Bucket capacity = 0.6 m³

  • Operating weight = 16,200 kg

  • Max. horizontal reach on the ground = 8,900 mm
  • Max. excavation depth = 5,400 mm
  • Max. excavation height = 9,950 mm
  • Max. dumping height = 7,200 mm
  • Min. slewing radius = 2,195 mm

  • Model = DEUTZ TCD4.1 L4
  • Rated power = 115 kW
  • Max. torque = 609 Nm/1600 rpm
  • Displacement = 4.1 l

  • Main pumps = 1 x variable-piston-pump with load sensing control
  • Maximum oil flow = 250 l/min
  • Travel drive = Variable displacement axial piston motor
  • Slewing gear = Axial piston motor

  • Boom circuit = 340 bar
  • Slewing circuit = 255 bar
  • Drive circuit = 360 bar
  • Pilot control circuit = 35 bar

  • Slewing speed = 10.5 rpm
  • Max. ground speeds = High 20 km/h, slow 7 km/h
  • Max. traction force = 84 kN
  • Climbing ability = 35°
  • ISO bucket breakaway force = 87 kN
  • ISO arm tear-out force = 64 kN

  • Fuel tank = 233 l
  • Engine coolant = 26 l
  • Engine oil = 11.5 l
  • Adblue = 20 l
  • Hydraulic oil tank = 175 l
