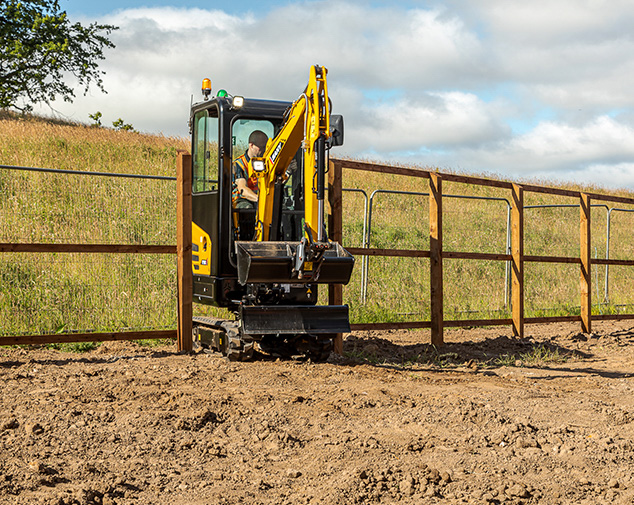

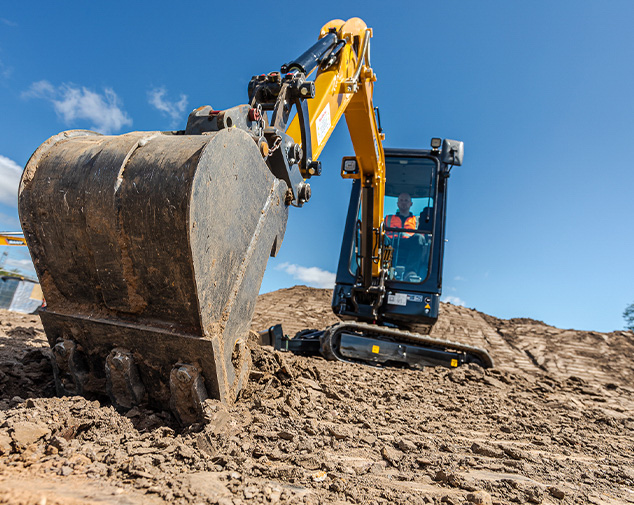

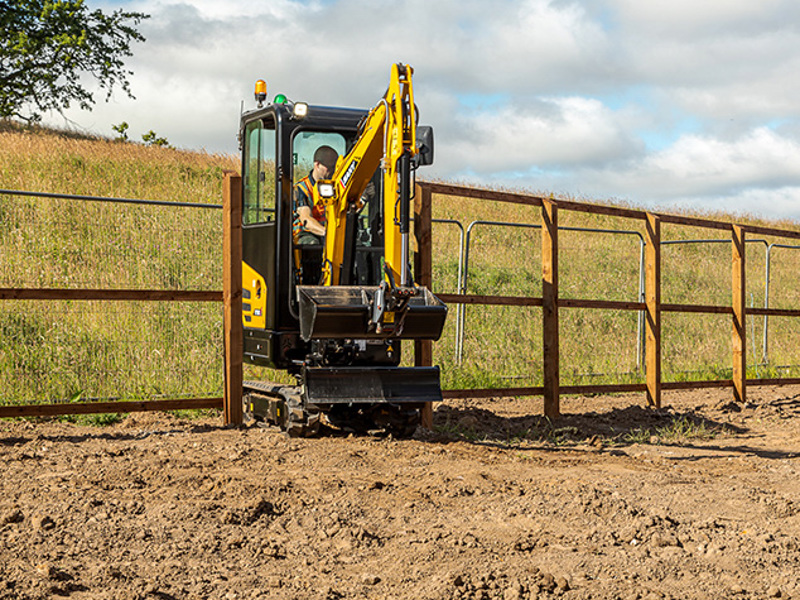

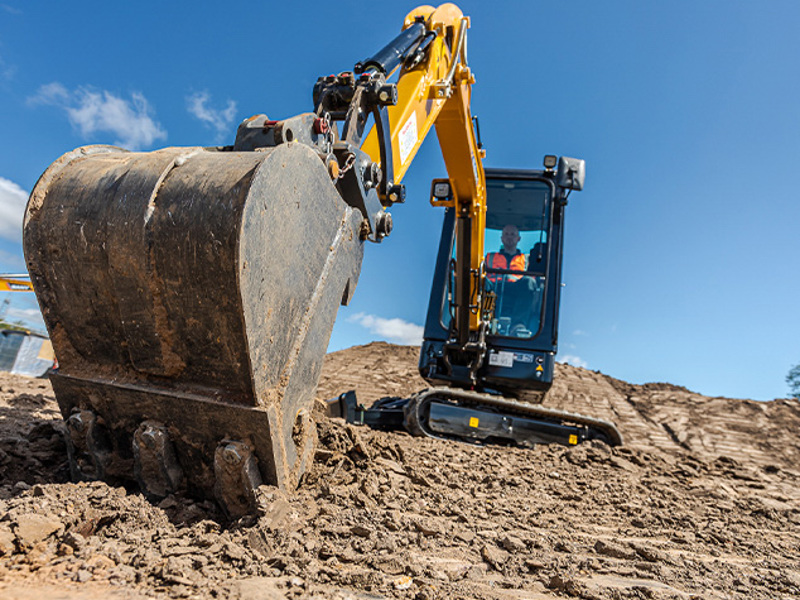

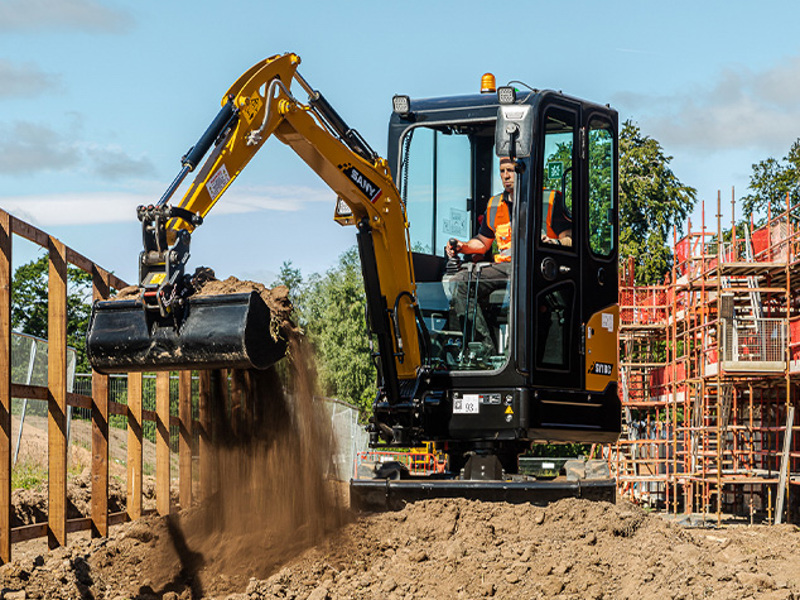

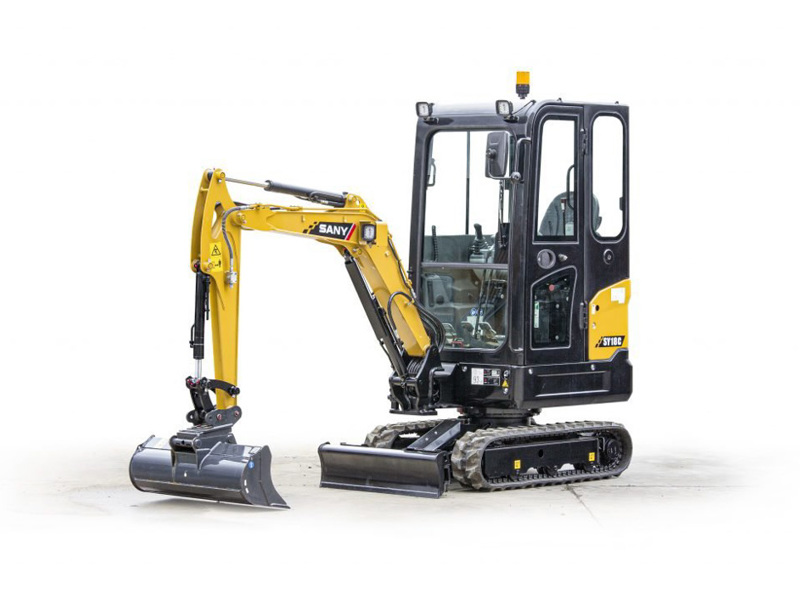

SANY SY18C

Industry Leading 5 year warranty

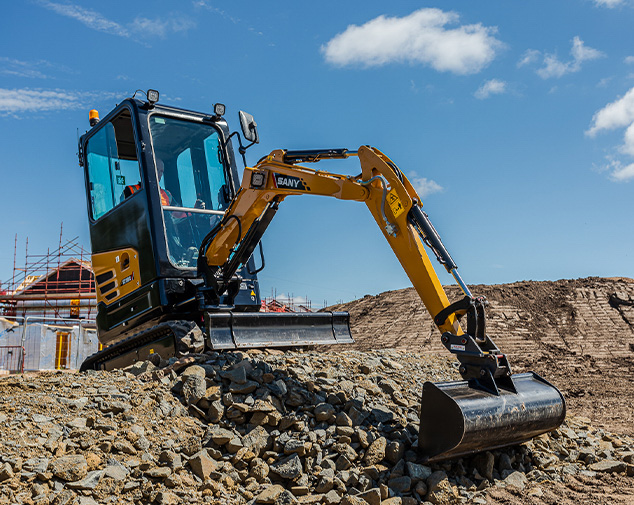

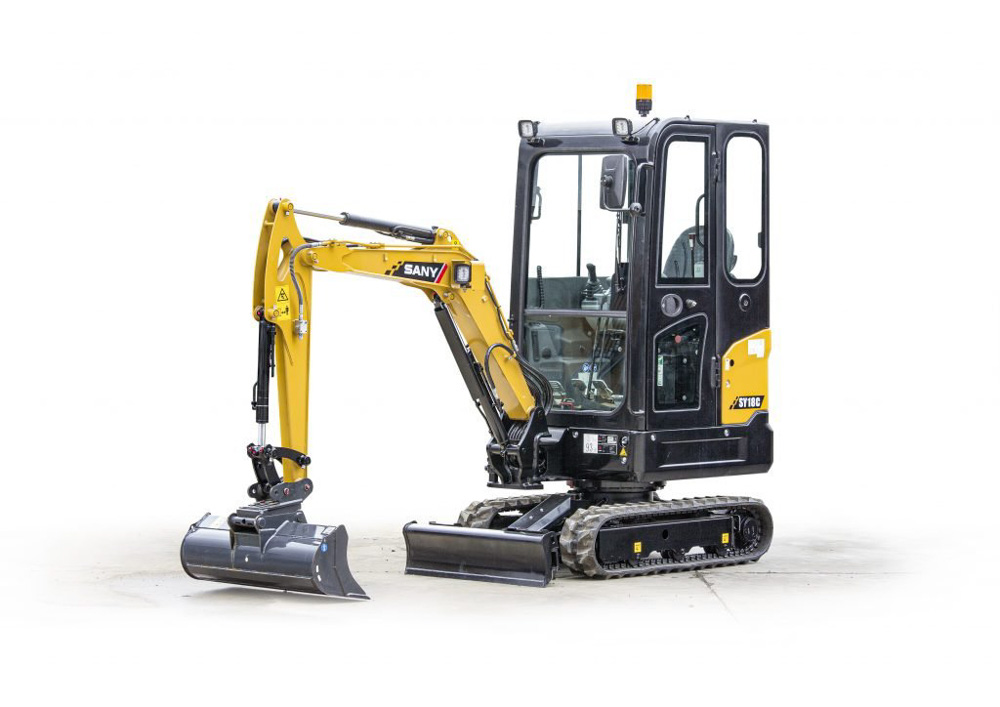

The SANY SY18C is a versatile multi-purpose mini excavator. Agile and compact, powerful and precise the SY18C is a highly efficient machine and the ideal solution for jobs in tight spaces, whether in construction, landscaping, indoor job sites or narrow urban locations.

– Cab design
– Expanding undercarriage (980mm – 1,350mm)
– 5 year warranty for complete peace of mind



Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

Great performance in the smallest of spaces, you need a real powerhouse and the SY18C delivers thanks to its compact dimensions and powerful hydraulic system.

  • Light weight and compact dimensions for easy transportation and manoeuvrability on site
  • Expanding undercarriage (980 – 1350mm) for applications that require maximum versatility
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer and bi-directional pipework as standard for maximum versatility of attachments

The SY18C is fully equipped for precise, safe working even in very confined application conditions.

  • ROPS/FOPS certified cab for safe operation
  • Optimal visibility for increased on site safety
  • Battery disconnect switch and emergency stop button
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

The SY18C operators can look forward to maximum comfort and easier, fatigue-free operation.

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • LED work lights for maximum versatility in low light conditions

  • Easy access to all maintenance points



  • Registered and protected with the CESAR Data tag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  •  5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 3,665 mm
  • Overall width = 1,030/1,350 mm
  • Overall width of superstructure = 1030 mm
  • Overall height above cab = 2,410 mm
  • Rear length = 920 mm
  • Track width = 750/1,120 mm
  • Landing gear length = 1,585 mm
  • Landing gear width (dozer blade) = 980/1,350 mm
  • Blade height = 270 mm
  • Track link width = 230 mm
  • Tail swing radius = 920 mm
  • Distance between track wheel and guide wheel (centre) = 1,220 mm
  • Boom length = 1,810 mm
  • Arm length = 1,130 mm

  • Max. ground level range = 4,000 mm
  • Max. excavation depth = 2,360 mm
  • Max. vertical range = 3,665 mm
  • Max. dumping height = 2,635 mm
  • Minute radius of gyration = 1,705 mm
  • Max. excavation depth, vertical wall = 2,215 mm
  • Min. working machine height. radius of gyration = 2,745 mm

  • Operating weight = 1,910-1,980 kg

  • Model = Yanmar 3TNV80F
  • Rated power = 14,6 kW
  • Max. torque = 65,3 Nm/1,800 ft/min
  • Shift = 1267 cubic cm

  • Main pump = 1 Adjustable axial piston pump
  • Maximum oil flow = 40 l/min
  • Travel drive = 2 Adjustable axial piston pumps
  • Rotary gear = 1 Adjustable axial piston pump

  • Boom circuit = 270 bar
  • Slewing circuit = 162 bar
  • Drive circuit = 270 bar
  • Pilot Control Circuit = 35 bar

  • Swing speed = 10 rpm
  • Max. ground speed = 4 km/h faster, 2.2 km/h slower
  • Max. traction = 15.6kN
  • Climbing ability = 30°
  • ISO bucket separation force = 15.2 kN
  • ISO arm tear = 9.2kN

  • Tank = 20 l
  • Engine coolant = 5.4 l
  • Engine oil = 3.4 l
  • Travel drive (each side) = 0.33 l
  • Hydraulic tank = 21 l

Related products

Sany SY16C

Available for Demo

Stage V YANMAR

14.6 kW / 2,400 rpm

1865 kg

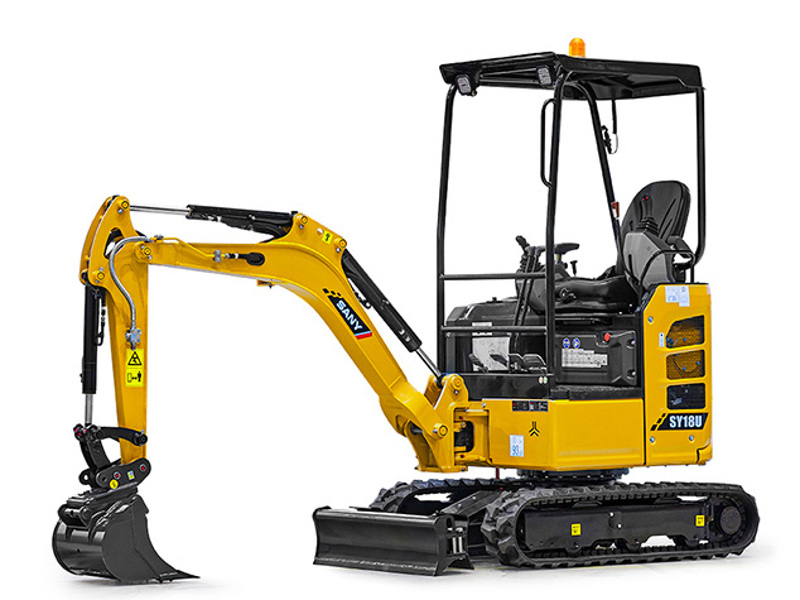

Sany SY18U

Available for Demo

Stage V YANMAR

14.6 kW / 2,400 rpm

1925 kg

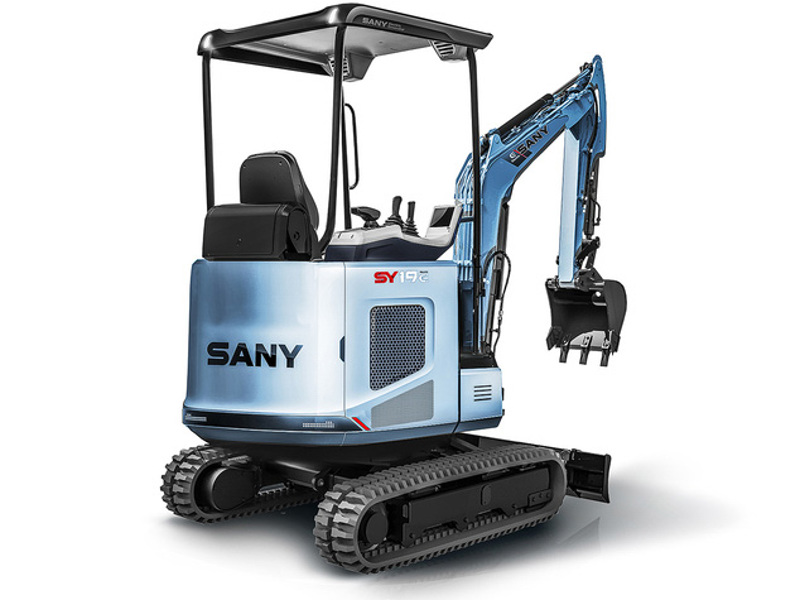

Sany SY19E

Available for Demo

Electric

15 kW / 2,000 rpm

1965 kg

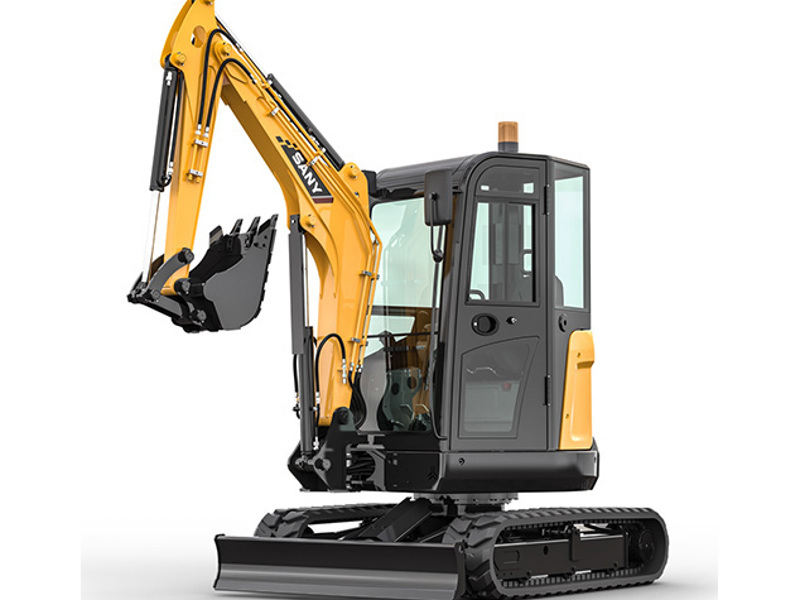

Sany SY26U
