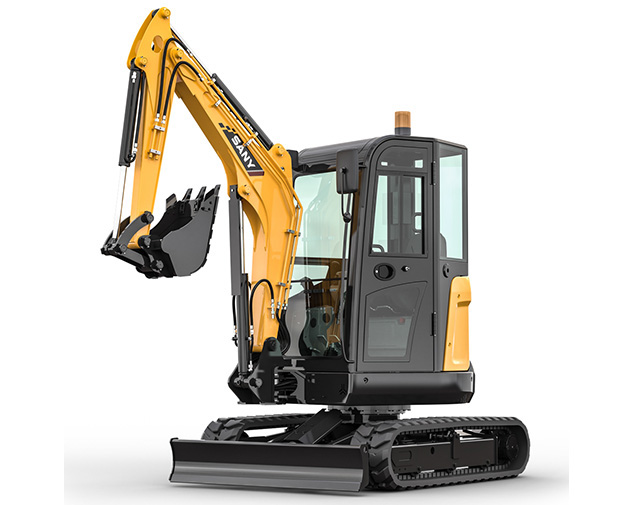

SANY SY26U

INDUSTRY LEADING 5-YEAR WARRANTY

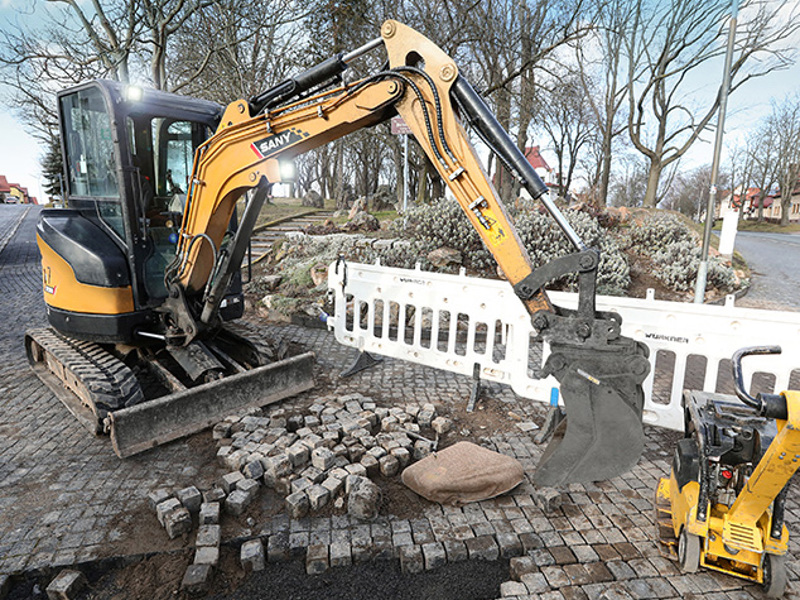

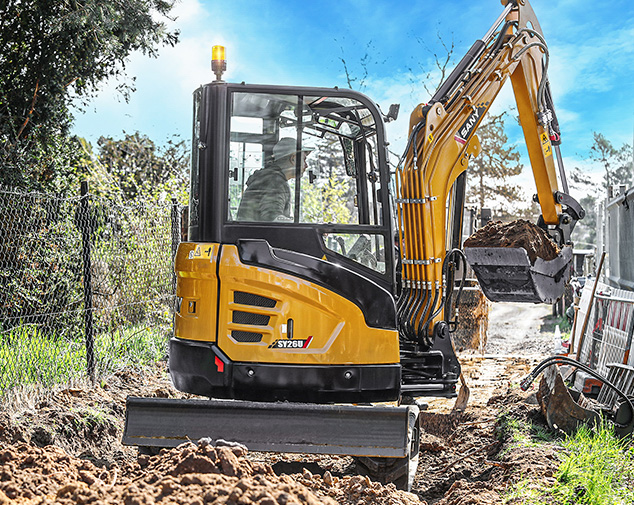

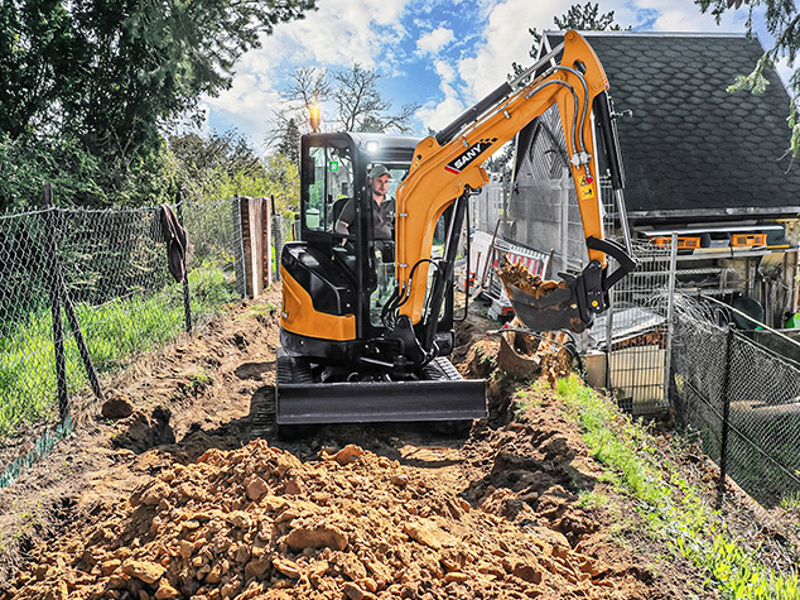

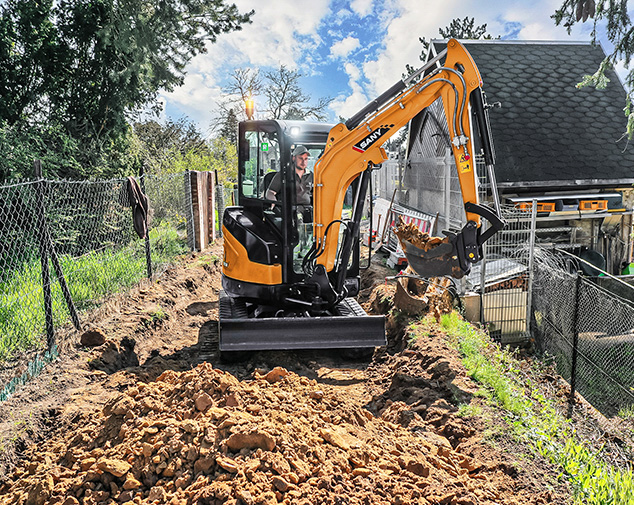

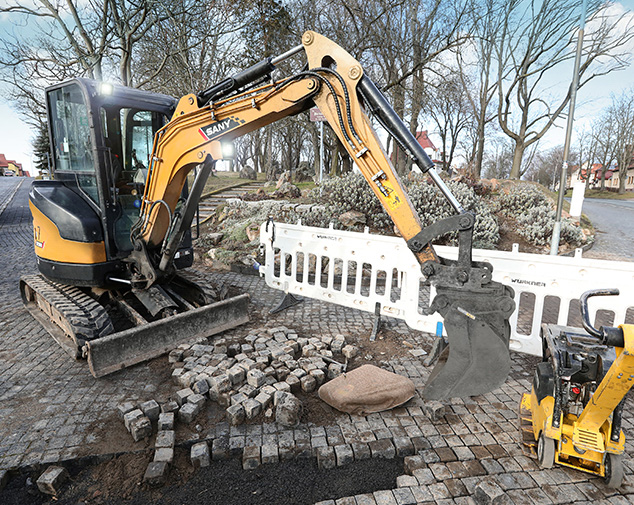

The mini machines from SANY have always been among the greatest when it comes to cost effectiveness and efficiency – it‘s no different for the SY26U mini excavator. It‘s in its element wherever it can demonstrate its speed and power, even in confined spaces. Its manoeuvrability and extremely precise control are also impressive in road construction, horticulture and landscaping.

  • Available with a cab or in canopy version
  •  Advanced load-sensing hydraulic system designed to improve performance
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The SY26U is in its element whenever it can demonstrate its speed and power.

  • Light weight and compact dimensions for easy transportation and manoeuvrability on site
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

The SY26U is designed to ensure maximum safety for the operator and on the job site.

  • ROPS/FOPS certified cab for safe operation
  • Optimal visibility for increased on site safety
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

With the SY26U operators can look forward to maximum comfort and easier, fatigue-free operation.

  • Responsive and precise controls
  • Ergonomic and comfortable air suspension operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Overall length = 4,285 mm
  • Overall width = 1,550 mm
  • Overall superstructure width = 1,375 mm
  • Overall height above cab = 2,430 mm
  • Overall height of boom = 1,620 mm
  • Rear length = 775 mm
  • Track width = 1,250 mm
  • Undercarriage length = 2,005 mm
  • Undercarriage width (dozer blade) = 1,550 mm
  • Horizontal distance (dozer blade) = 2,940 mm
  • Blade height = 300 mm
  • Track height = 445 mm
  • Track link width = 300 mm
  • Minimal ground clearance = 290 mm
  • Clearance under counterweight = 555 mm
  • Height of engine hood = 1,460 mm
  • Tail swing radius = 775 mm
  • Distance (centre) between crawler wheel and guide wheel = 1,560 mm
  • Boom length = 2,100 mm
  • Bucket arm length = 1,300 mm
  • Bucket capacity = 0.06 m³

  • Max. horizontal reach on the ground = 4,740 mm
  • Max. excavation depth = 2,820 mm
  • Max. vertical reach = 4,410 mm
  • Max. dumping height = 3,100 mm
  • Min. dumping height = 940 mm
  • Min. slewing radius = 2,110 mm
  • Max. excavation depth, vertical wall = 2,585 mm
  • Working machine height at min. slewing radius = 3,200 mm
  • Arm head distance with work equipment retracted as far as possible = 1,530 mm
  • Swing radius by min. boom swing = 1,795 mm L
  • Swing radius by max. boom swing  1,815 mm R
  • Max. clearance when blade up = 360 mm
  • Max. depth of blade down = 330 mm
  • Max. boom swing angle = 540 mm , L 765 mm R
  • Max. boom swing angle (deg.)  67° L, 51° R

  • Model = Yanmar 3TNV80F
  • Rated power = 14.6 kW
  • Max. torque = 64.7 Nm/1,800 rpm
  • Displacement = 1,267 l
  • Batteries = 1 × 12 V/55 Ah

  • Main pumps = 1 Adjustable axial piston pump
  • Maximum oil flow = 1 x 72 l/min
  • Travel drive = 2 Adjustable axial piston pumps
  • Slewing gear = 1 Adjustable axial motor

  • Boom circuit = 245 Bar
  • Slewing circuit = 196 Bar
  • Drive circuit = 245 Bar
  • Pilot control circuit = 35 Bar

  • Slewing speed = 10 rpm
  • Slewing torque = 0.973 kNm
  • Max. ground speeds = fast 4.5 km/h slow 2.4 km/h
  • Max. traction force = 20 kN
  • Climbing ability = 0.25
  • ISO bucket breakaway force = 27.4 kN
  • SAE: PCSA bucket breakaway force = 24.2 kN
  • ISO arm tear-out force = 14.39 kN
  • SAE: PCSA arm tear-out force = 13.83 kN

  • Fuel tank = 34 l
  • Engine coolant = 4.1 l
  • Engine oil = 3.4 l
  • Travel drive (per side) = 0.6 l
  • Hydraulic system = 45 l
  • Hydraulic oil tank = 30 l
