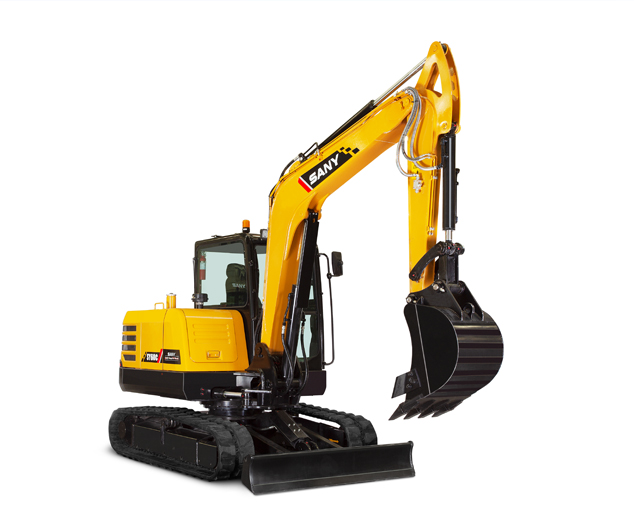

SANY SY60C

INDUSTRY LEADING 5-YEAR WARRANTY

The SY60C compact excavator delivers incredible fuel efficiency while offering the power and performance you need on site. This 6-tonne machine is perfectly suited for excavation, land clearing, and demolition work and easily proves itself to be a worthwhile investment with its high level of productivity.

  • Stage V YANMAR engine and efficient load sending hydraulic system
  • Comfortable ROPS/FOPS certified operators cab
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The SY60C is a well-balanced excavator which has been optimized for stability and power by centralizing the position of the swing boom pivot point and conventional tail swing. With its powerful drive and compact dimensions, this excavator ensures high productivity during every day work on site.

  • Compact design allows for easy manoeuvrability and increased versatility
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • The position of the boom enables the excavator to lift higher loads over longer reaches than comparable machines in this weight class

With its superb visibility, precision control and other safety design features the SY60C makes all operators feel in total control.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera for optimal visibility
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

For operators who spend all day in the seat, welcome to the comfort zone of the SY60C!

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Manual air conditioning for improved operator comfort
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  • Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Transport length = 6,015 mm
  • Transport width = 2,005 mm
  • Upper structure carriage = 1,860 mm
  • Height over cabin/ROPS = 1,320 mm
  • Height of boom – transport = 2,290 mm
  • Overall length of crawler = 2, 545 mm
  • Tail length = 610 mm
  • Track gauge = 1,600 mm
  • Undercarriage width (blade) = 2,000 mm
  • Horizontal distance to blade = 1,300 mm
  • Blade height = 340 mm
  • Track height = 573 mm
  • Engine cover height = 1,685 mm
  • Tail swing radius = 1,640 mm
  • Centre distance of tumblers = 2,045 mm

  • Max. digging reach = 6,320 mm
  • Max. digging depth = 3,950 mm
  • Max. digging height = 5,790 mm
  • Max. dumping height = 4,060 mm
  • Max. vertical digging depth = 3,180 mm
  • Max. clearance when blade up = 385 mm
  • Max. depth of blade down = 380 mm

  • Operating weight = 6,000 kg

  • Model = Yanmar 4TNV98C
  • Rated power = 42.4 kW
  • Max. torque = 235 N.m/1,300 rpm
  • Displacement = 3.3 L

  • Main pump = 28 Mpa
  • Max. oil flow = 24.5 Mpa
  • Travel drive = 24.5 Mpa
  • Rotary gear = 19.1 Mpa

  • Boom circuit = 28 Mpa
  • Slewing circuit = 19.1 Mpa
  • Drive circuit = 24.5 Mpa
  • Pilot control circuit = 3.5 Mpa

  • Swing speed = 9.6 rpm
  • Max. ground speed = 3.7 km/h
  • Max. traction = 47.2 kN
  • Climbing ability = 70%/35°
  • ISO bucket separation force = 45 kN
  • ISO arm tear = 33 kN

  • Fuel tank = 130 L
  • Engine coolant = 5.6 L
  • Engine oil = 9.6 L
  • Travel drive (each side) = 2×0.9 L
  • Hydraulic tank = 85 L
