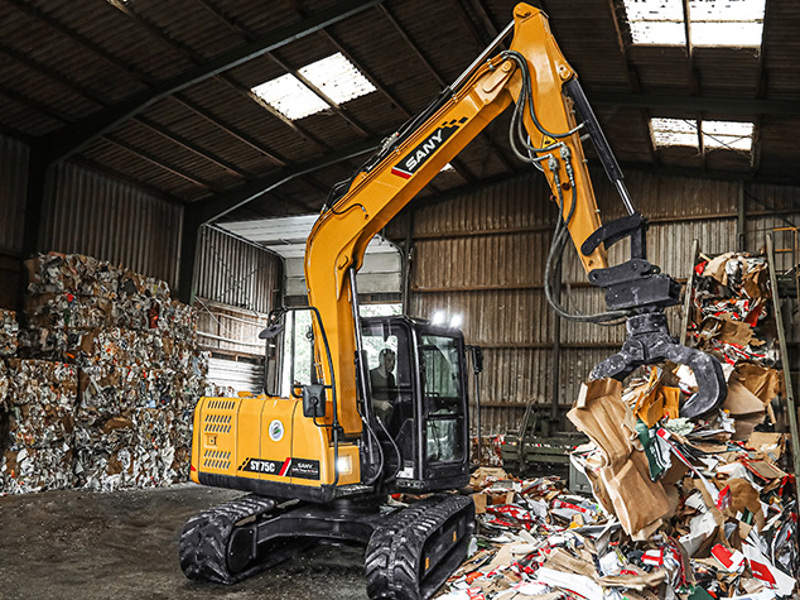

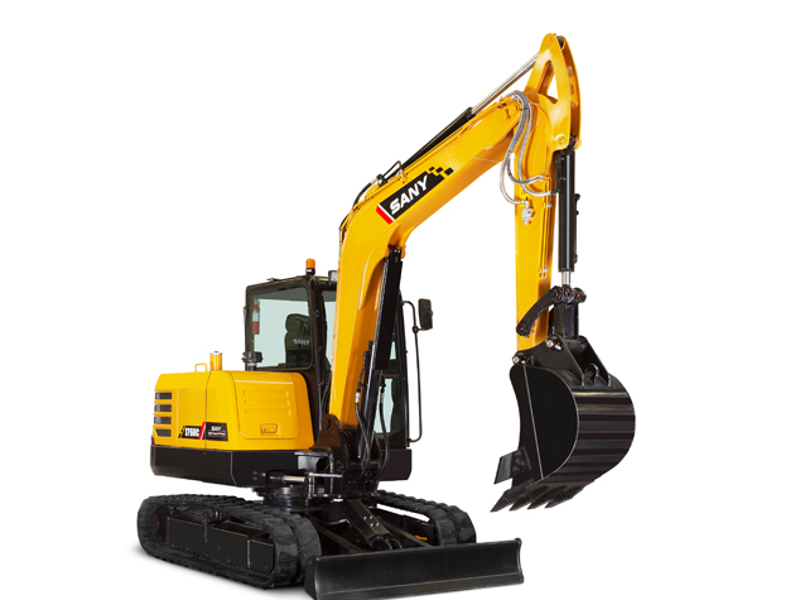

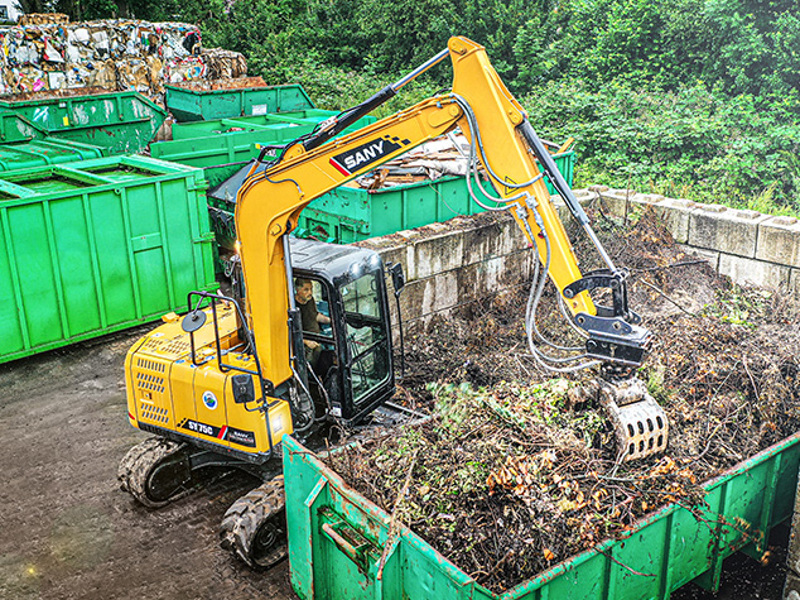

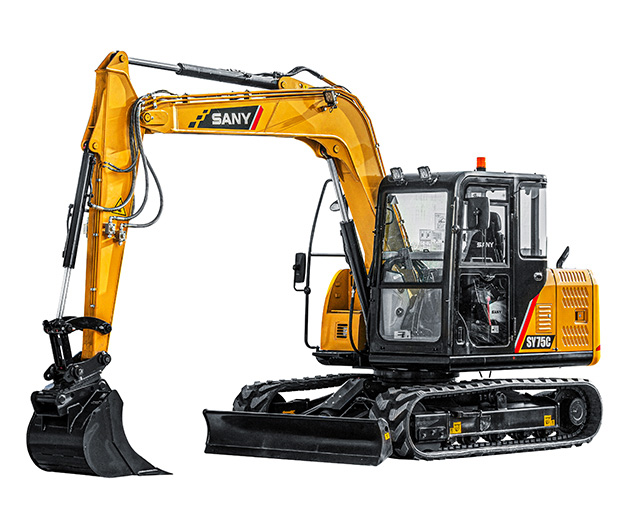

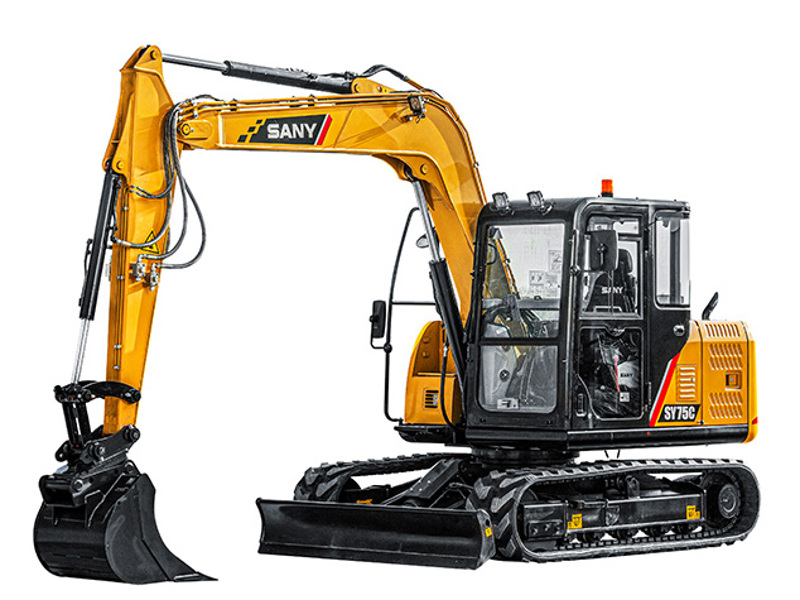

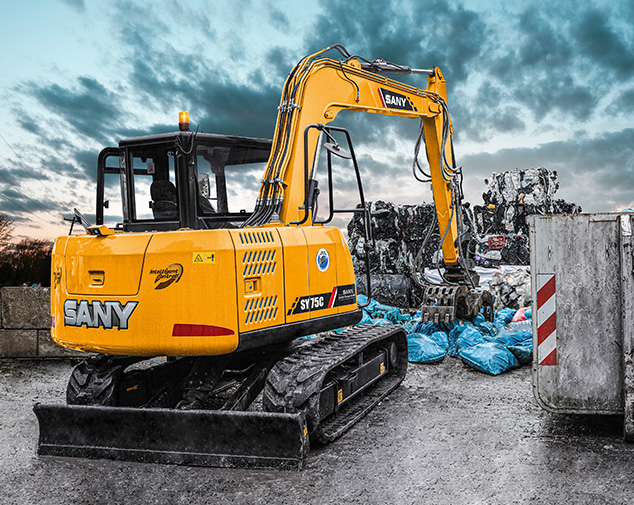

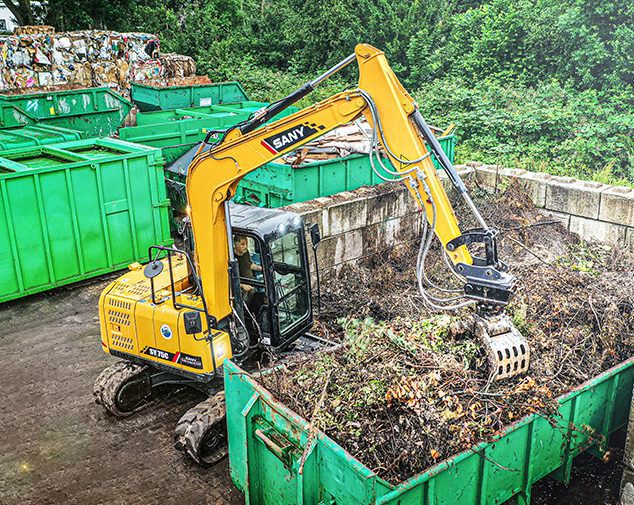

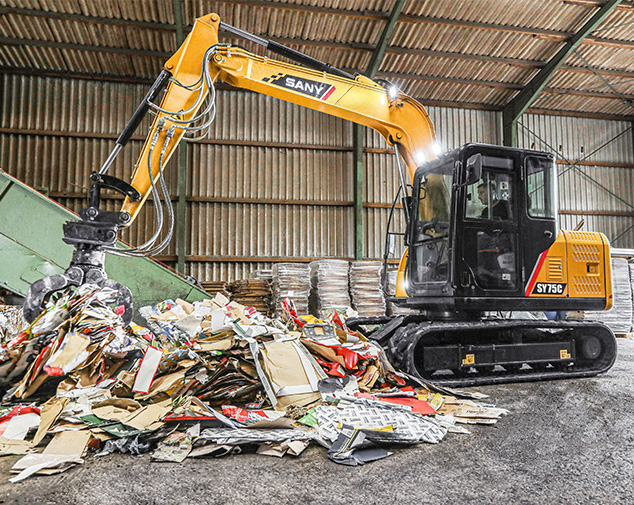

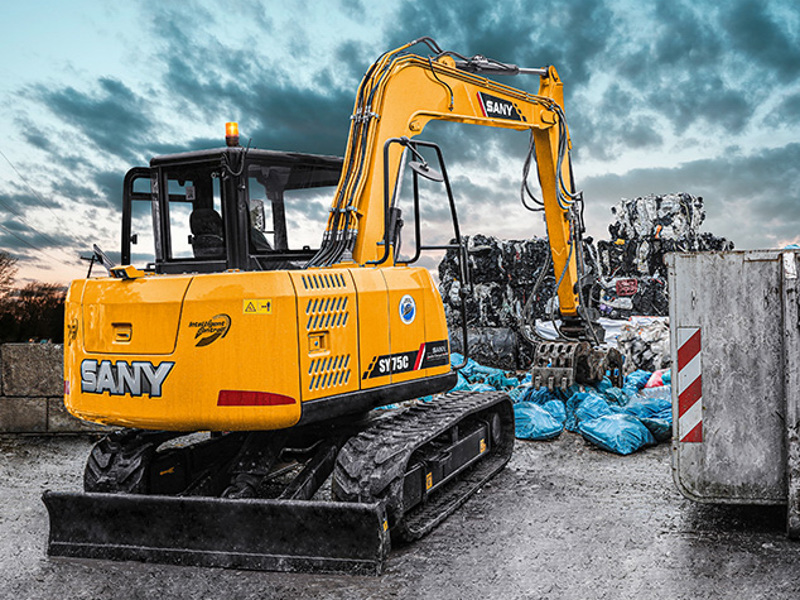

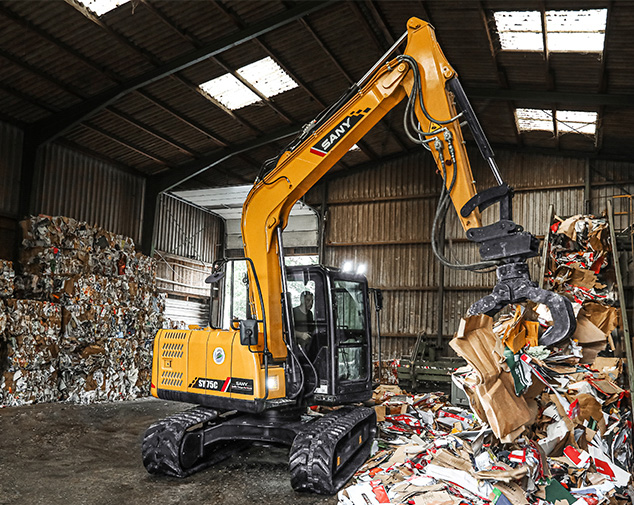

SANY SY75C

INDUSTRY LEADING 5-YEAR WARRANTY

The new SANY SY75C – powerful and with a large excavation depth, this machine completes all tasks efficiently and with a reliable performance. The excavator’s sophisticated structure allows it to tackle very high loads with exemplary stability. In addition, the cab’s comfortable and ergonomic design is precisely tailored to the requirements for safe and concentrated work.

  • Stage V YANMAR engine and efficient load sensing hydraulic system
  • Comfortable ROPS/FOPS certified operators cab
  • 5 year warranty for complete peace of mind

Download Brochure Enquire Now Book a Demo

BENEFITS & FEATURES

The new SY75C is one of the most powerful SANY compact excavators and impresses with its robustness and power. With its powerful drive and compact dimensions, this excavator ensures high productivity during everyday work.

  • Compact design allows for easy manoeuvrability and increased versatility
  • Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy
  • 100% steel bodywork for maximum protection and reduced cost of ownership
  • The position of the boom enables the excavator to lift higher loads over longer reaches than comparable machines in this weight class

With its superb visibility, precision control and other safety design features the SY75C  makes all operators feel in total control.

  • ROPS/FOPS certified cab for safe operation
  • Rear view camera for optimal visibility
  • Battery disconnect switch
  • Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

Welcome to the comfort zone of the SY75C

  • Responsive and precise controls
  • Ergonomic and comfortable operator’s seat
  • Clear instrumentation and large high resolution colour display
  • Quiet, low vibration engine so noise levels are kept to a minimum
  • Manual air conditioning for improved operator comfort
  • LED work lights for maximum visibility in low light conditions
  • Easy access to all maintenance points
  • Low maintenance requirements and longer service intervals
  •  Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
  • 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Technical Specification

  • Transport length = 6,115 mm
  • Transport width = 2,220 mm
  • Upper structure carriage = 2,040 mm
  • Height over cabin/ROPS = 2,570 mm
  • Height of Boom – transport = 2,760 mm
  • Overall length of crawler = 2,820 mm
  • Tail length = 1,800 mm
  • Track gauge = 1,750 mm
  • Undercarriage width (blade) = 2,200 mm
  • Horizontal distance to blade = 1,735 mm
  • Blade height = 450 mm
  • Track height = 680 mm
  • Engine cover height = 1,720 mm
  • Tail swing radius = 1,940 mm
  • Centre distance of tumblers = 2,195 mm

  • Max. digging reach = 6,505 mm
  • Max. digging depth = 4,450 mm
  • Max. digging height = 7,390 mm
  • Max. dumping height = 5,490 mm
  • Max. vertical digging depth = 3,840 mm
  • Max. clearance when blade up = 390 mm
  • Max. depth of blade down = 330 mm

  • Operating weight = 7,280 kg

  • Model = YANMAR 4TNV98C
  • Rated power = 42.4 kW / 1,900 rpm
  • Max. torque = 241 Nm / 1,300 rpm
  • Displacement = 3,319 ccm

  • Main pump = Variable-piston-pump;
  • Maximum oil flow = 1 x 135 l/min
  • Travel drive = Variable displacement axial piston motor
  • Rotary gear = Axial piston motor

  • Boom circuit = 263 bar
  • Slewing circuit = 216 bar
  • Drive circuit = 260 bar
  • Pilot Control Circuit = 35 bar

  • Swing speed = 11.5 rpm
  • Max. ground speed = High 4.2 km/h, slow 2.3 km/h
  • Max. traction = 56.8 kN
  • Climbing ability = 35°
  • ISO bucket separation force = 53 kN
  • ISO arm tear = 35 kN

  • Fuel tank = 150 l
  • Engine coolant = 12 l
  • Engine oil = 10.8 l
  • Travel drive (each side) = 1.2 l
  • Hydraulic tank = 120 l

Related products

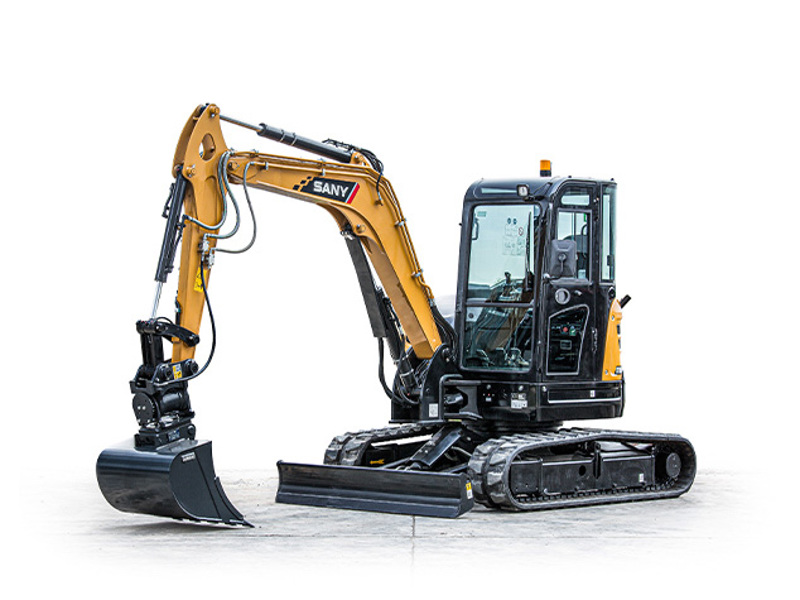

Sany SY50U

Available for Demo

Stage V YANMAR

29.1 kW / 2400 rpm

5300 kg

Sany SY60C

Available for Demo

Stage V YANMAR

42.4 kW

6100 kg

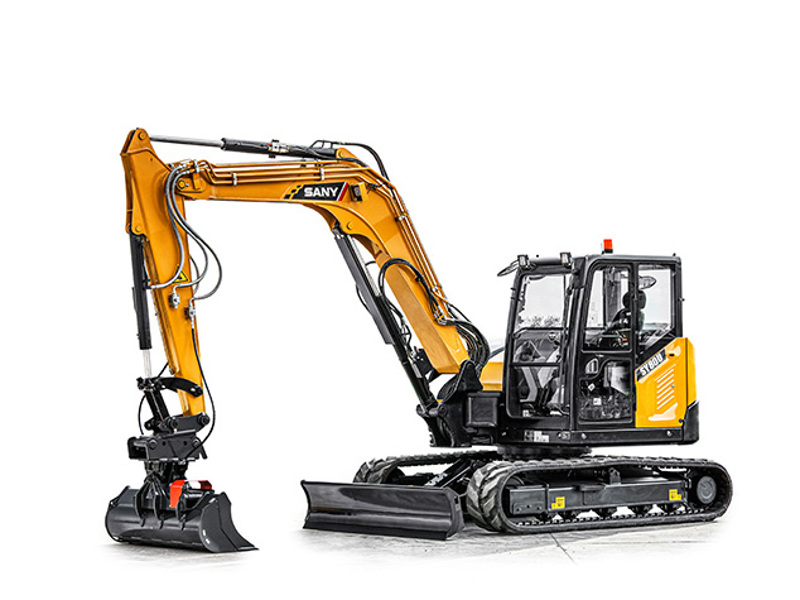

Sany SY80U
